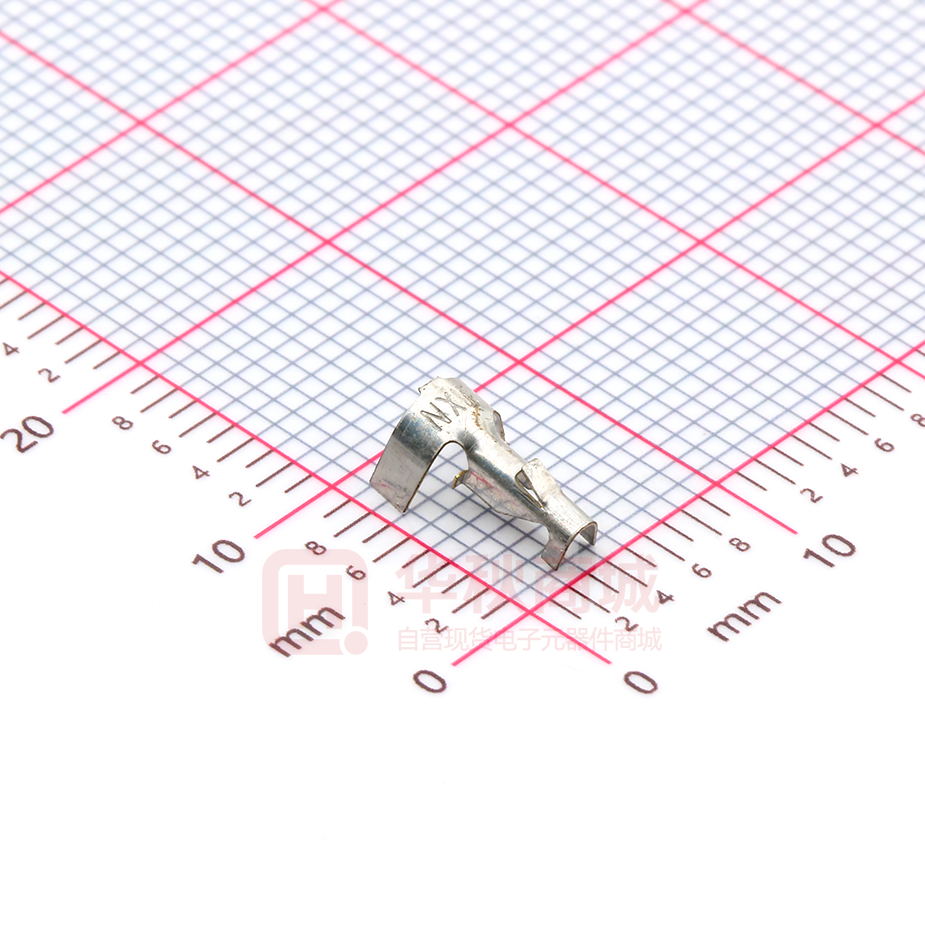

0002072101

This document was generated on 11/22/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Description: 0002072101 Active Vertical Solder Relief (VSR) Direct-Solder Crimp Terminal, Series 4706, Male, Tin Terminal Progression Documents: Drawing (PDF) Product Specification PS-4706-001-001 (PDF) RoHS Certificate of Compliance (PDF) General Product Family Series Application Comments Crimp Quality Equipment Product Name UPC Crimp Terminals 4706 Signal, Wire-to-Board Progression 11.20mm Yes Vertical Solder Relief (VSR) 800753615854 Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Male Brass Tin Tin 0.050/g Reel 2.540µm 2.540µm Crimp or Compression 3.05mm max. 18, 20, 22, 24 N/A Solder Process Data Duration at Max. Process Temperature (seconds) Lead-freeProcess Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 005 WAVE 003 260 Material Info Engineering Number 4706-3(P909) Reference - Drawing Numbers Product Specification Sales Drawing PS-4706-001-001 SD-4706 This document was generated on 11/22/2018 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 4706 Series Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Hand Crimp Tool for 11010068 Board-in Terminal, 18-24 AWG Terminator Die 11402043 Terminator Die 11402045 Overlap Insulation Crimp Mini-Mac Applicator 638934300 for Board-in Crimp Terminals PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 02-07-2101 02-07-2101 (Cut Strip) 02-07-2101 (Mouser Reel) 02-07-2101 (Loose Piece)
