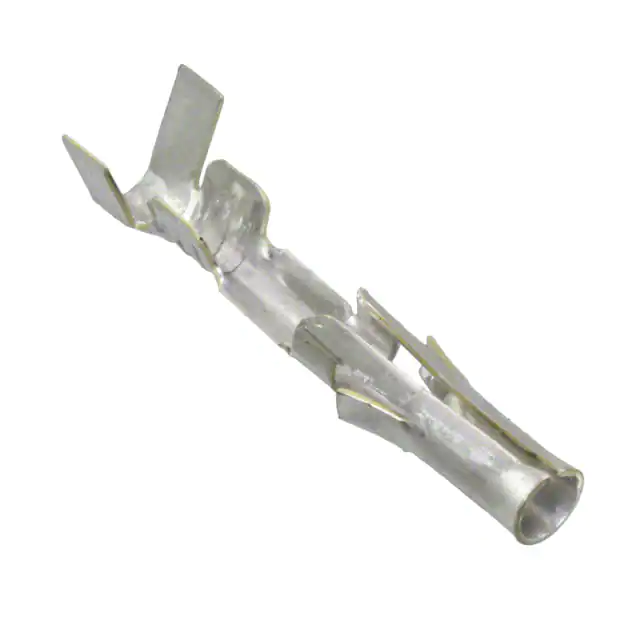

This document was generated on 11/29/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0002091102 Active Standard .093" Pin and Socket Connectors 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1189, Female, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Reel Documents: Drawing (PDF) Product Specification PS-02-09 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Application Crimp Quality Equipment Overview Packaging Alternative Product Name UPC Crimp Terminals 1189 Power, Wire-to-Wire Yes Standard .093" Pin and Socket Connectors 02-09-1104 (Loose) Standard .093" 191128081610 Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Brass Tin Tin 0.346/g Reel 0.508µm 0.508µm Crimp or Compression 1.65-4.06mm 14, 16, 18, 20 N/A Solder Process Data Lead-freeProcess Capability N/A Material Info Engineering Number 1189-A(P901) Reference - Drawing Numbers Product Specification Sales Drawing PS-02-09 SD-1189-* EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 1189 Series Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Insertion Tool 11020003 Extraction Tool 11030006 Terminator Die 11402001 Extractor Tool 638240200 for .093 and HCS-125 Product Series Mini-Mac Applicator 638927100 for Insulation OD 1.65-2.79mm, 14-20 AWG Wire Mini-Mac Applicator 638927300 for Insulation OD 2.54-4.06mm, 14-20 AWG Wire This document was generated on 11/29/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 02-09-1102 02-09-1102 (Cut Strip) 02-09-1102 (Mouser Reel)
