0008500105

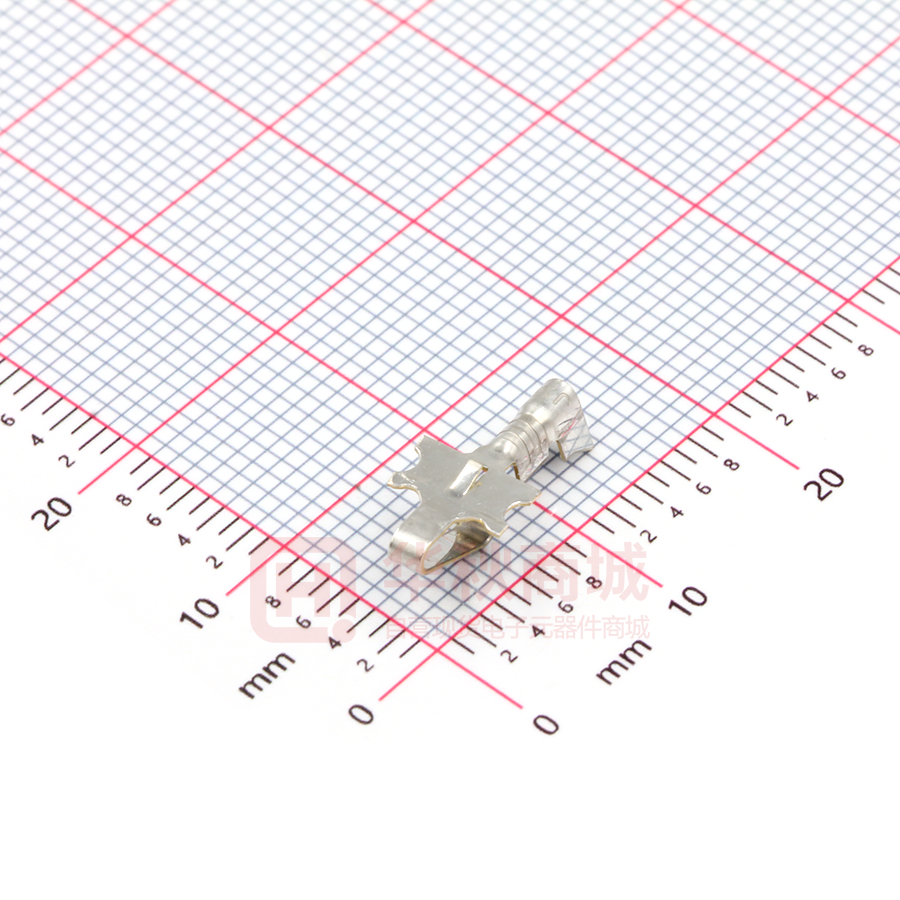

This document was generated on 11/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0008500105 Active Overview: Description: KK® Interconnect System - Molex KK 396 Crimp Terminal 2478, 18-24 AWG, Reel, Brass Tin (Sn) Documents: Drawing (PDF) Product Specification PS-08-50-001 (PDF) Packaging Specification PK-2759-002-001 (PDF) RoHS Certificate of Compliance (PDF) General Product Family Series Application Crimp Quality Equipment Overview Packaging Alternative Product Name UPC Crimp Terminals 2478 Power, Wire-to-Board Yes KK® Interconnect System - Molex 08-50-0106 (Loose) KK 396, KK 508 800753614437 Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Brass Tin Tin 0.280/g Reel 2.540µm 2.540µm Crimp or Compression 2.79mm max. 18, 20, 22, 24 N/A Solder Process Data Lead-freeProcess Capability N/A Material Info Engineering Number 2478-1(P909) Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing PK-2759-002-001 PS-08-50-001 SD-2478-001 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 2478 Series Use With 2574 , 2139 , 41695 , 3069 , 6422 , 5265 , 5239 This document was generated on 11/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 08-50-0105 08-50-0105 (Cut Strip) 08-50-0105 (Mouser Reel)
