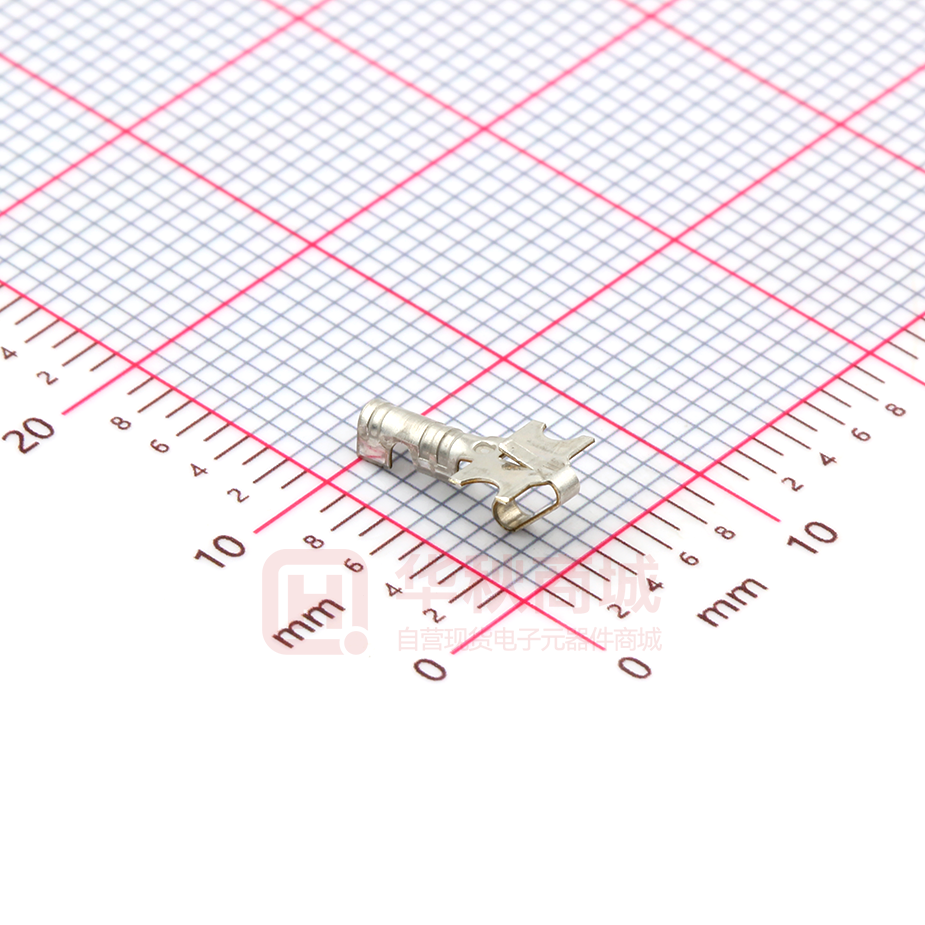

0008500113

This document was generated on 10/31/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0008500113 Active Overview: Description: KK® Interconnect System - Molex KK 254 Crimp Terminal, 22-30 AWG, Hot Tin (Sn) Dip Plating Documents: Drawing (PDF) Product Specification PS-10-07-001 (PDF) Product Specification TS-10-07-001 (PDF) Packaging Specification PK-2759-002-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Application Crimp Quality Equipment Overview Packaging Alternative Product Name UPC Crimp Terminals 2759 Power, Wire-to-Board Yes KK® Interconnect System - Molex 08-50-0114 (Loose) KK 254 800753614444 Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Brass Tin Tin 0.065/g Reel 2.540µm 2.540µm Crimp or Compression 1.57mm max. 22, 24, 26, 28, 30 N/A Solder Process Data Lead-freeProcess Capability N/A Material Info Engineering Number 2759-(P909)B Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing PK-2759-002-001 PS-10-07-001, TS-10-07-001 SD-2759 EU ELV Compliant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Compliant Not Contained Search Parts in this Series 2759 Series Use With 2695 , 5051 This document was generated on 10/31/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 08-50-0113 08-50-0113 (Mouser Reel) 08-50-0113 (Cut Strip)
