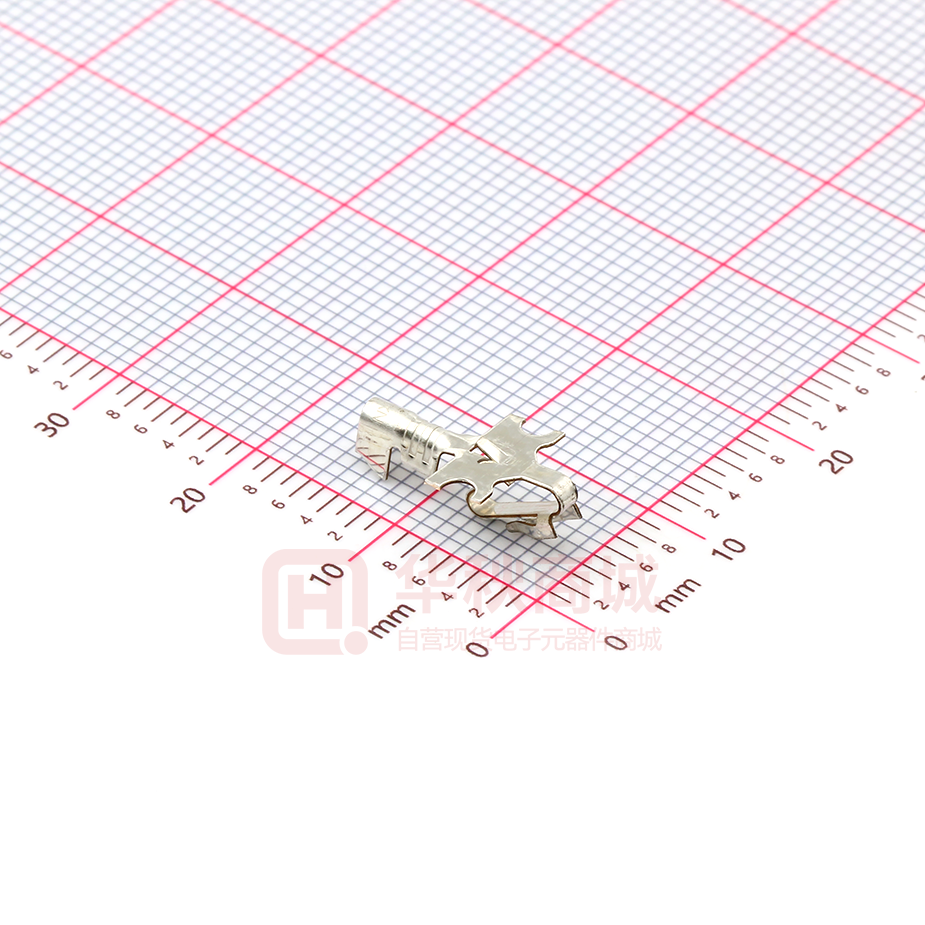

0008520112

19 18 17 16 15 14 13 12 11 10 9 7 8 6 5 4 3 2 1 NOTES: 1. MATERIAL: SEE LEGEND 2. FINISH: 909 - OVERALL HOT TIN DIP: .000100/(0.00254) MIN. 154 - OVERALL TIN: .000100/(0.00254) MIN. OVER .000050/(0.00127) MIN. NICKEL. 555 - SELECT HARD GOLD: .000015/(0.00038) MIN. OVERALL NICKEL: .000030/(0.00076) MIN. 558 - SELECT HARD GOLD: .000030/(0.00076) MIN. OVERALL NICKEL: .000050/(0.00127) MIN. OVERALL HARD GOLD FLASH: .000002/(0.00005) MIN. 561 - SELECT HARD GOLD: .000030/(0.00076) MIN. OVERALL NICKEL: .000050/(0.00127) MIN. 3. PRODUCT SPECIFICATION: PS-40-02 4. PACKAGING SPECIFICATION: CHAIN FORM: SEE PK-2759-002 LOOSE FORM: SEE PK-2759-001 5. TERMINAL FOR USE IN HOUSING SERIES 6442 AND 41695. 6. SEE 7258 SERIES FOR THIS PART WITH CRIMP FOR 22-26 AWG. WIRE. 7. CRIMP FOR 18 TO 20 GA. WIRE WITH MAX. INSULATION DIA. OF .100/(2.79), STRIP LENGTH OF .125/.100 / (3.18/2.54) 8. DIMENSIONS GIVEN ACROSS CENTERLINES ARE SYMMETRICAL ABOUT THOSE CENTERLINES WITHIN HALF THE TOTAL TOLERANCE. 9. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002. 10. ALTERNATE GEOMETRY PRESENT ON SOME PART NUMBERS. SEE SHEET 2. 11. TEXT ON PART IS FOR REFERENCE ONLY. TEXT AND TEXT LOCATION MAY VARY DEPENDING ON PART NUMBER AND/OR TOOL. L K J ALTERNATE GEOMETRY H L K J H SEE NOTE 10 G G F F E E D D SEE NOTE 2 C SYMBOLS = 0 = 0 B THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE IN/MM 1:1 = 0 A MM 19 FORMAT: Eng-lega-master-tb-prod-D REVISION: D DATE: 2018/01/18 P1 18 RELEASE DATE 17 2018/10/05 16 09:56:24 C 15 14 13 12 11 10 9 8 INCH 4 PLACES ± ± 3 PLACES ± ± 0.01 2 PLACES ± 0.25 ± 0.015 ± 0.36 ± = 0 1 PLACE = 0 0 PLACES ± ANGULAR TOL = 0 DOCUMENT STATUS CURRENT REV DESC: NOTE 4 UPDATED GENERAL TOLERANCES (UNLESS SPECIFIED) = 0 = 0 C = 0 7 ± ± 0.5 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 B EC NO: 605479 DRWN: SS06 CHK'D: ISHWARG APPR: ISHWARG INITIAL REVISION: DRWN: GUZIK APPR: LENZ THIRD ANGLE PROJECTION 5 2018/09/17 2018/10/05 2018/10/05 1989/11/15 1989/11/15 DRAWING SERIES D-SIZE 6838 4 TRIFURCON TERMINAL CRIMP TYPE, .156 CENTERS 18 TO 20 AWG WIRE PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER SD-6838 MATERIAL NUMBER SEE CHART 3 PSD 001 AT SHEET NUMBER CUSTOMER GENERAL MARKET 2 1 OF 2 1 A 19 18 17 16 15 14 13 12 11 10 9 7 8 6 5 4 3 2 1 L L SEE NOTE 1 SEE NOTE 1 6838-A(154) 6838-A(154)L K SEE NOTE 1 SEE NOTE 1 K SEE NOTE 1 SEE NOTE 1 J J H H G G F F E E NOTES: D D 1. PART MANUFACTURED WITH ALTERNATE GEOMETRY. SEE SHEET 1. C C SYMBOLS = 0 = 0 B THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE INCH 1:1 GENERAL TOLERANCES (UNLESS SPECIFIED) = 0 = 0 = 0 A MM 19 FORMAT: Eng-lega-master-tb-prod-D REVISION: D DATE: 2018/01/18 P1 18 RELEASE DATE 17 2018/10/05 16 09:56:24 C 15 14 13 12 11 10 9 8 INCH 4 PLACES ± ± 3 PLACES ± ± 0.01 2 PLACES ± 0.25 ± 0.015 ± 0.36 ± = 0 1 PLACE = 0 0 PLACES ± ANGULAR TOL = 0 DOCUMENT STATUS CURRENT REV DESC: NOTE 4 UPDATED = 0 7 ± ± 0.5 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 B EC NO: 605479 DRWN: SS06 CHK'D: ISHWARG APPR: ISHWARG INITIAL REVISION: DRWN: DRWN BY APPR: APPR BY THIRD ANGLE PROJECTION 5 2018/09/17 2018/10/05 2018/10/05 1989/11/15 1989/11/15 DRAWING SERIES D-SIZE 6838 4 TRIFURCON TERMINAL CRIMP TYPE, .156 CENTERS 18 TO 20 AWG WIRE PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER SD-6838 MATERIAL NUMBER SEE CHART 3 PSD 001 AT SHEET NUMBER CUSTOMER GENERAL MARKET 2 2 OF 2 1 A 19 18 17 16 15 14 13 12 11 10 9 7 8 6 5 4 3 2 1 NOTES: 1. MATERIAL: SEE LEGEND L L 2. FINISH: 909 - OVERALL HOT TIN DIP: .000100/(0.00254) MIN. 3. PRODUCT SPECIFICATION: PS-40-02 4. PACKAGING SPECIFICATION: PK-2759-002 5. PART IS FOR USE WITH 18 TO 20 GA. WIRE WITH MAX. INSULATION DIA. OF .110/(2.79), STRIP LENGTH OF .125/.100 / (3.18/2.54) 6. SEE 7258 SERIES FOR THIS PART WITH CRIMP FOR 22-26 AWG. WIRE K K 7. TERMINAL FOR USE IN 6442 AND 41695 SERIES HOUSINGS 8. DIMENSIONS GIVEN ACROSS CENTERLINES ARE SYMMETRICAL ABOUT THOSE CENTERLINES WITHIN HALF THE TOTAL TOLERANCE 9. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002 J J H H G G F F E E D D SEE NOTE 2 C C SYMBOLS = 0 = 0 B THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE IN/MM 1:1 GENERAL TOLERANCES (UNLESS SPECIFIED) = 0 = 0 = 0 A MM 19 FORMAT: Eng-lega-master-tb-prod-D REVISION: D DATE: 2018/01/18 P1 18 RELEASE DATE 17 2018/10/05 16 09:56:25 C 15 14 13 12 11 10 9 8 INCH 4 PLACES ± ± 3 PLACES ± ± 0.01 2 PLACES ± 0.25 ± 0.015 ± 0.36 ± = 0 1 PLACE = 0 0 PLACES ± ANGULAR TOL = 0 DOCUMENT STATUS CURRENT REV DESC: NOTE 4 UPDATED = 0 7 ± ± 0.5 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 B EC NO: 605479 DRWN: SS06 CHK'D: ISHWARG APPR: ISHWARG INITIAL REVISION: DRWN: JJS APPR: YM THIRD ANGLE PROJECTION 5 2018/09/12 2018/10/05 2018/10/05 2004/07/29 2004/07/29 DRAWING SERIES D-SIZE 6838 4 TRIFURCON TERMINAL CRIMP TYPE, .156 CENTERS 18 TO 20 AWG WIRE PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER SD-6838-001 MATERIAL NUMBER 50291639 3 PSD 001 C1 SHEET NUMBER CUSTOMER GENERAL MARKET 2 1 OF 1 1 A
