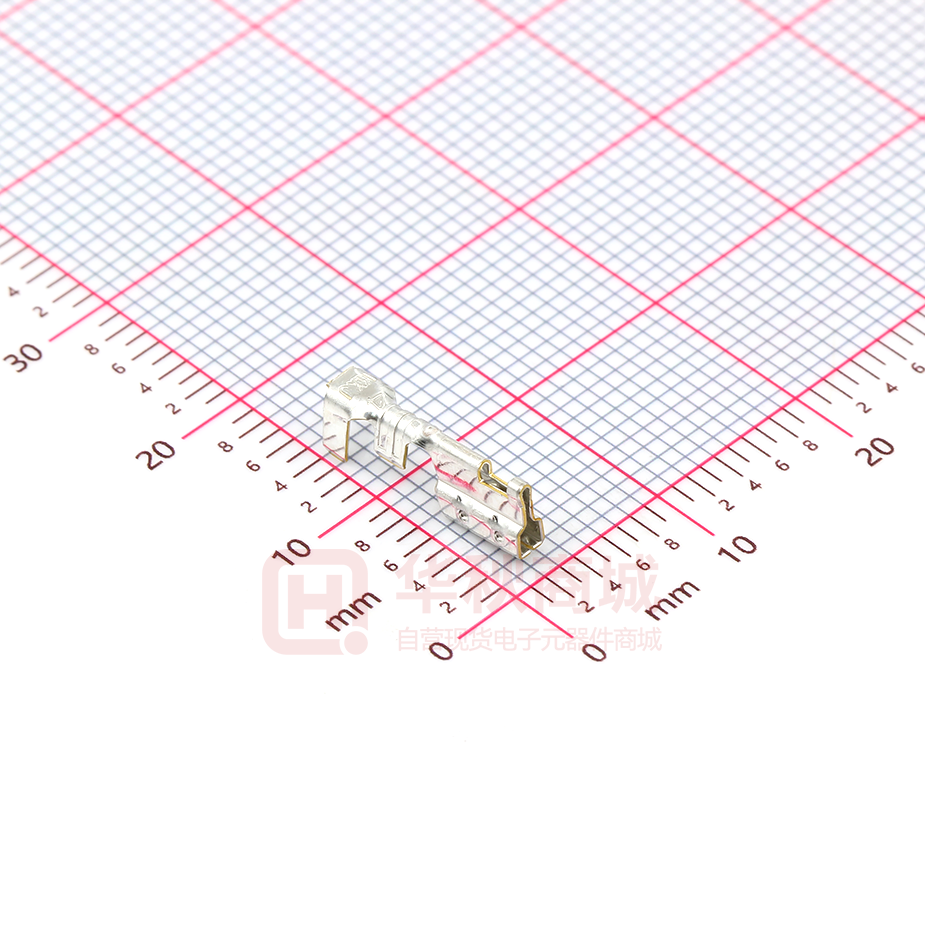

This document was generated on 11/02/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0008701031 Active Overview: Description: SPOX BMI Connector System SPOX Crimp Terminal 5194, 18-24 AWG, Brass, Reel Documents: Drawing (PDF) Product Specification PS-5096-003 (PDF) Product Specification PS-5195-001 (PDF) Product Specification PS-5195-002 (PDF) Product Specification PS-5195-003 (PDF) Product Specification PS-5195-005-001 (PDF) Product Specification PS-5195-006-001 (PDF) Product Specification PS-5195-007-001 (PDF) Product Specification PS-5195-009 (PDF) Product Specification PS-5195-010 (PDF) Product Specification PS-5195-011 (PDF) Product Specification PS-5196-001 (PDF) Product Specification PS-5196-004 (PDF) Product Specification PS-5196-005 (PDF) Product Specification PS-5196-006-001 (PDF) Product Specification PS-5197-001 (PDF) Product Specification PS-5197-003 (PDF) Product Specification PS-5197-004 (PDF) Product Specification PS-5198-001-001 (PDF) Product Specification PS-5273-003 (PDF) Product Specification PS-5273-004 (PDF) Packaging Specification 51949200-200 (PDF) RoHS Certificate of Compliance (PDF) General Product Family Series Application Crimp Quality Equipment Overview Packaging Alternative Product Name UPC Crimp Terminals 5194 Signal, Wire-to-Board Yes SPOX BMI Connector System 08-70-1030 (Loose) SPOX 800753534896 Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Brass Tin Tin 240.000/mg Reel 0.889µm 0.889µm Crimp or Compression 1.30-3.20mm 18, 20, 22, 24 N/A Material Info Engineering Number 5194T Reference - Drawing Numbers Crimp Specification Packaging Specification Product Specification Sales Drawing CS-5194, CS-5194(S) 51949200-200 PS-5096-003, PS-5195-001, PS-5195-002, PS-5195-003, PS-5195-005-001, PS-5195-006-001, PS-5195-007-001, PS-5195-009, PS-5195-010, PS-5195-011, PS-5196-001, PS-5196-004, PS-5196-005, PS-5196-006-001, PS-5197-001, PS-5197-003, PS-5197-004, PS-5198-001-001, PS-5273-003, PS-5273-004 SD-5194-001 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 5194 Series Use With 5195 , 5196 , 5197 , 5198 , 5199 This document was generated on 11/02/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 08-70-1031 08-70-1031 (Cut Strip) 08-70-1031 (Mouser Reel)
