This document was generated on 01/15/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Replacement Part
Number:
0016020069
Active
C-Grid Connector Products

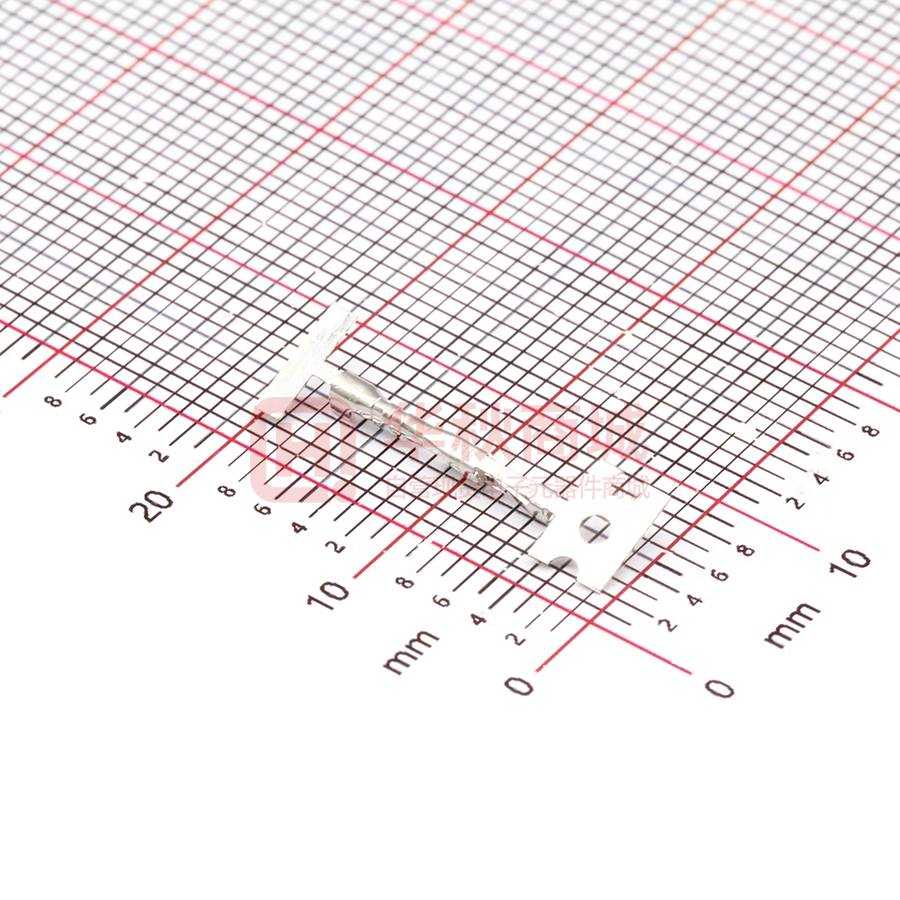

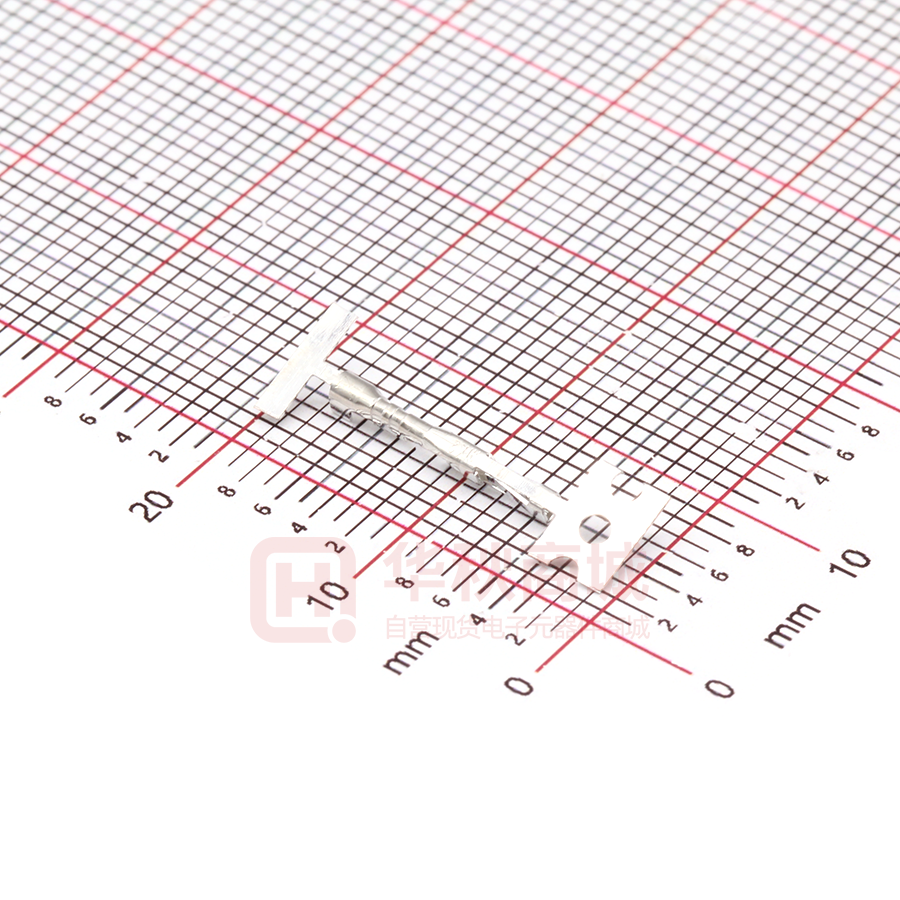

SL Crimp Terminal, Series 70058, Female, 24-30 AWG, with Tin (Sn) Plated Contact,
Reel
http://www.molex.com/molex/products/listview.jsp?
channel=Products&sType=p&query=070058106970058-1069
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Packaging Alternative
Product Name
Replacement Part Number
UPC
Crimp Terminals
70058
Signal, Wire-to-Board, Wire-to-Wire
Yes
C-Grid Connector Products
16-02-0096 (Bag)
CyClone, SL
70058-1069
800753595941
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Tin
Tin
0.075/g
Reel
3.810µm
1.905µm
Crimp or Compression
1.52mm max.
24, 26, 28, 30
N/A
Solder Process Data
Lead-freeProcess Capability
N/A
Material Info
Engineering Number
70058-0004
Reference - Drawing Numbers
Sales Drawing
700580001-SD-000
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per ED/61/2018 (27 June
2018)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS
ELV
RoHS Phthalates
Green Image
Compliant
Not Contained
Search Parts in this Series
70058 Series
Use With
SL Crimp Housing 70066 , 70450
CyClone Connector 73099
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Insertion Tool
11020022
Extraction Tool
11030036
Hand Crimp Tool For 638258800
SL Crimp Terminals
FineAdjust Applicator 639001500
for SL Female Crimp
Terminal, Insulation
OD 0.63-1.00mm,
24-30 AWG Wire
FineAdjust Applicator 639003100
for SL Female Crimp
Terminal, Insulation
OD 1.01-1.52mm,
24-30 AWG Wire
T2 Terminator
639103100
Tooling Die
Japan
Description
Product #
Applicator for M211A 570143000
Bench Press, 22-30
AWG Wire
Side-Feed Applicator 570143200
For Full-Auto
Machine
Hand Insertion Tool 570336000
