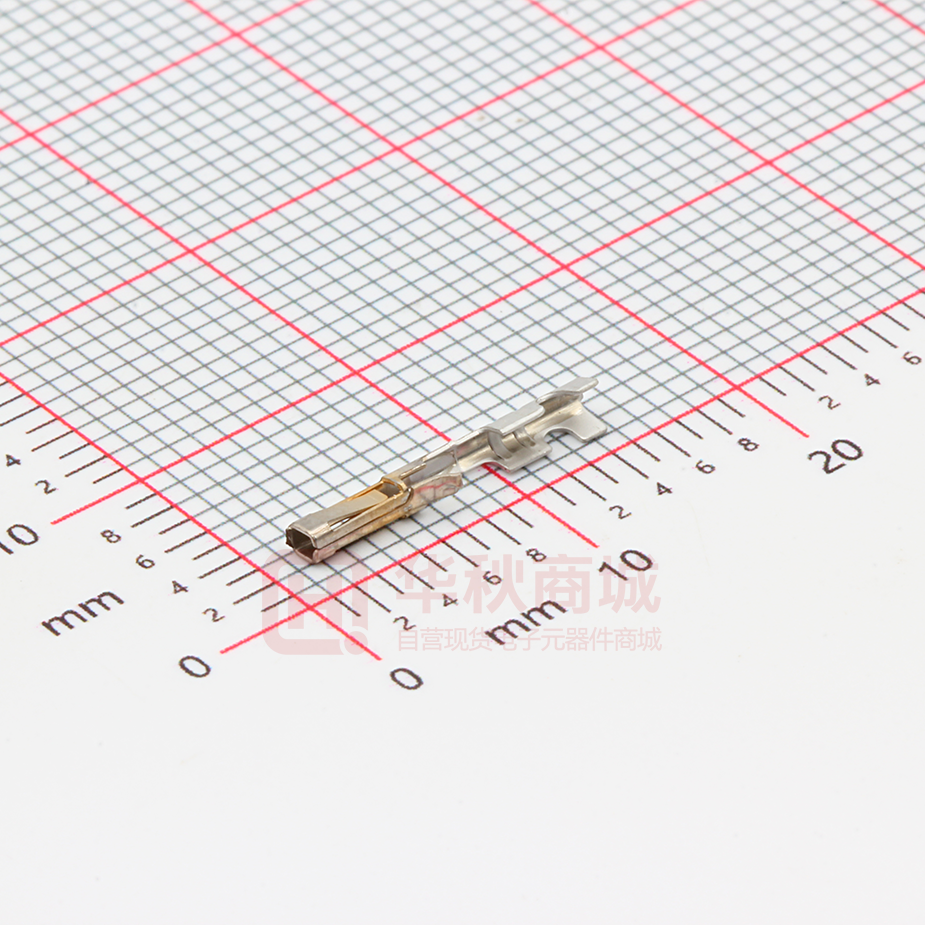

0016020087

This document was generated on 11/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0016020087 Active C-Grid Connector Products SL Crimp Terminal, Series 70058, Female, 22-24 AWG, with 0.38µm Selective Gold (Au) Plated Contact, Reel Documents: Drawing (PDF) Product Specification PS-70058-001 (PDF) Product Specification PS-70400-001 (PDF) Product Specification TS-70058-001-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Application Crimp Quality Equipment Overview Packaging Alternative Product Name UPC Crimp Terminals 70058 Signal, Wire-to-Board, Wire-to-Wire Yes C-Grid Connector Products 16-02-0103 (Bag) CyClone, SL 800753596023 Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Phosphor Bronze Gold Tin 0.073/g Reel 0.381µm 1.905µm Crimp or Compression 1.63mm max. 22, 24 N/A Solder Process Data Lead-freeProcess Capability N/A Material Info Engineering Number 70058-0024 Reference - Drawing Numbers Product Specification Sales Drawing PS-70058-001, PS-70400-001, TS-70058-001-001 700580001-SD-000 EU ELV Compliant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Compliant Not Contained Search Parts in this Series 70058 Series Use With SL Crimp Housing 70066 , 70450 CyClone Connector 73099 This document was generated on 11/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 16-02-0087 16-02-0087 (Mouser Reel) 16-02-0087 (Cut Strip)
