0039000181

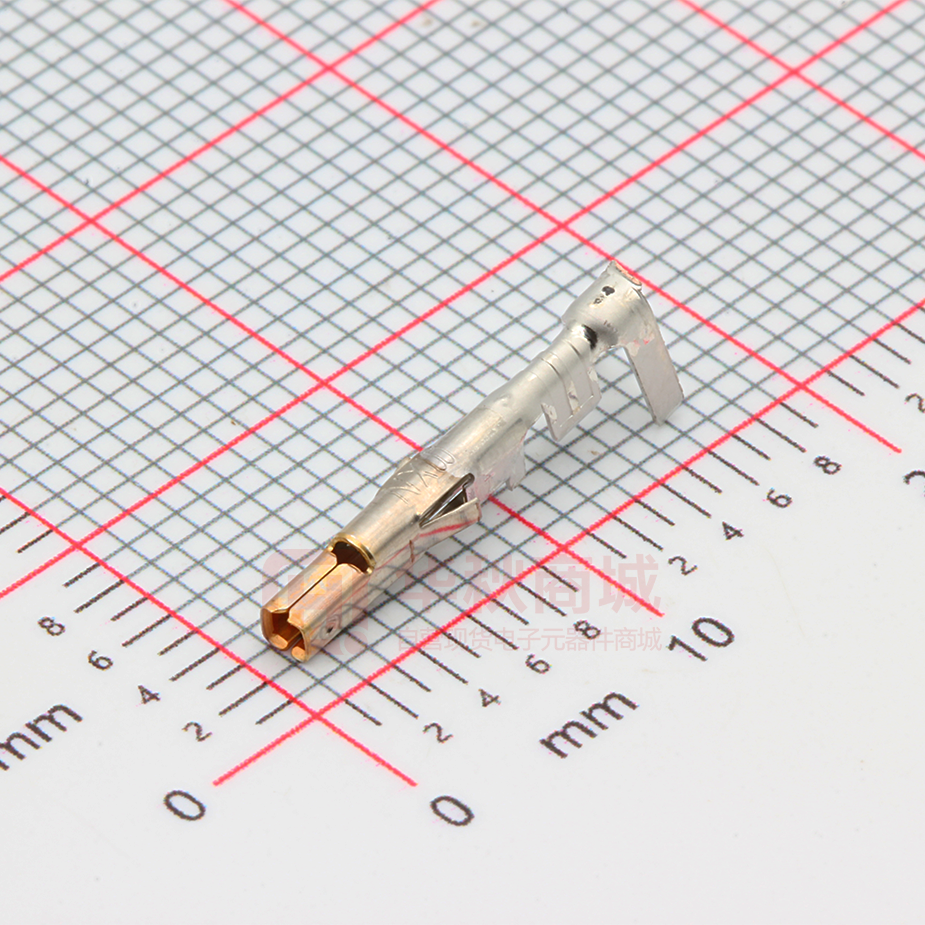

This document was generated on 10/19/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0039000181 Active Mini-Fit Jr. Power Connectors Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 18-24 AWG, Reel Documents: Drawing (PDF) Product Specification PS-5556-001-001 (PDF) Product Specification PS-5556-002-001 (PDF) Product Specification TS-5556-002-001 (PDF) Packaging Specification PK-5556-001-001 (PDF) RoHS Certificate of Compliance (PDF) General Product Family Series Application Crimp Quality Equipment Overview Packaging Alternative Product Name UPC Crimp Terminals 5556 Power, Wire-to-Board, Wire-to-Wire Yes Mini-Fit Jr. Power Connectors 39-00-0182 (Loose) Mini-Fit 800755527933 Physical Durability (mating cycles max) Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² 30 Female Phosphor Bronze Gold Tin 0.130/g Reel 0.762µm 0.762µm Crimp or Compression 1.30-3.10mm 18, 20, 22, 24 N/A Electrical Current - Maximum per Contact Voltage - Maximum 9.0A 600V Solder Process Data Lead-freeProcess Capability N/A Material Info Engineering Number 5556-PBGSP Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing PK-5556-001-001 PS-5556-001-001, PS-5556-002-001, TS-5556-002-001 SD-5556-006-001 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 5556 Series Mates With 5558 Mini-Fit Crimp Male Terminals. Mini-Fit Jr. Header, Dual Row, 5566 , 5569 Use With 5557 Mini-Fit Jr. Receptacle Housing, 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, 44516 Mini-Fit BMI Slide and Lock Panel Mount This document was generated on 10/19/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 39-00-0181 39-00-0181 (Mouser Reel) 39-00-0181 (Cut Strip)
