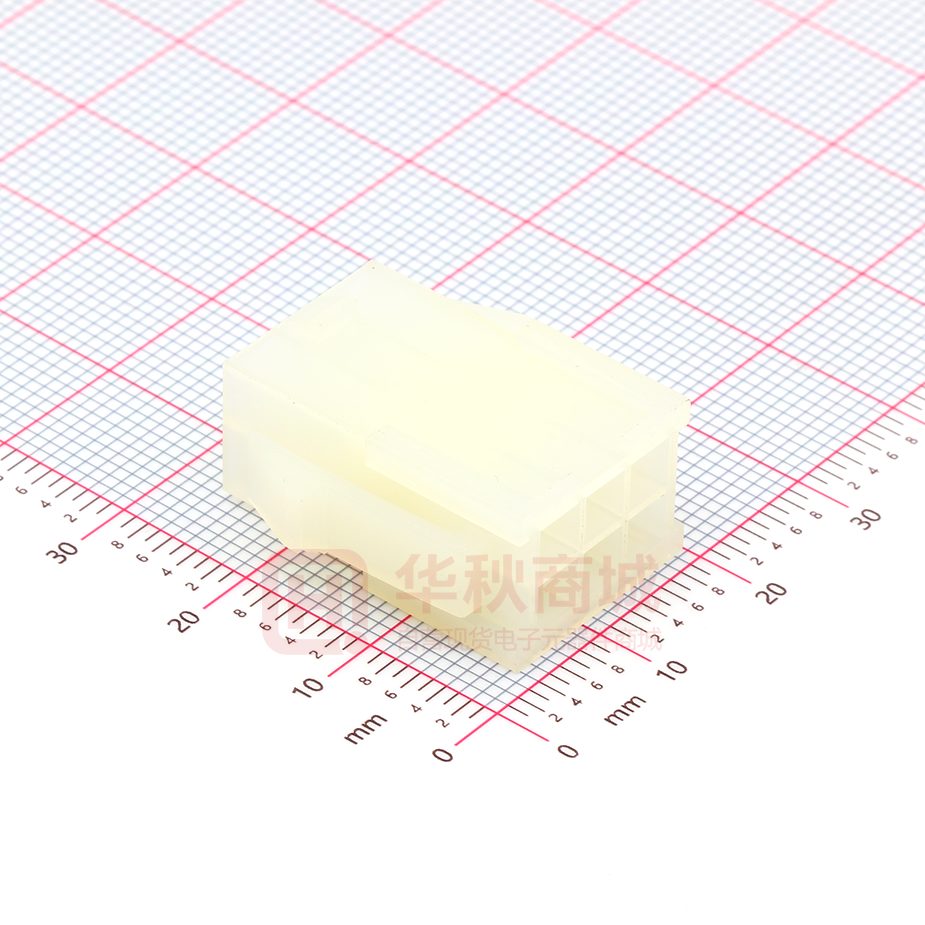

This document was generated on 11/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0039012061 Active Mini-Fit Jr. Power Connectors Mini-Fit Jr. Plug Housing, Dual Row, 6 Circuits, UL 94V-2, with Panel Mounting Ears, Natural Documents: 3D Model Drawing (PDF) Product Specification PS-45750-001-001 (PDF) Product Specification PS-5556-001-001 (PDF) Agency Certification CSA UL General Product Family Series Application Comments Product Specification TS-5556-002-001 (PDF) Application Specification AS-5557-001-001 (PDF) Packaging Specification PK-5559-001-001 (PDF) RoHS Certificate of Compliance (PDF) LR19980 E29179 Overview Product Name UPC Crimp Housings 5559 Power, Wire-to-Board, Wire-to-Wire Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. . See Molex product specification PS-45750-001 for additional current derating information. Mini-Fit Jr. Power Connectors Mini-Fit Jr. 800753584327 Physical Breakaway Circuits (maximum) Color - Resin Flammability Gender Glow-Wire Capable Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Polarized to Mating Part Stackable Temperature Range - Operating No 6 Natural 94V-2 Plug No Nylon 2.250/g 2 Bag Yes 4.20mm 4.20mm Yes No -40° to +105°C Electrical Current - Maximum per Contact 13.0A Material Info Engineering Number 5559-06P Reference - Drawing Numbers Application Specification Packaging Specification Product Specification AS-5557-001-001 PK-5559-001-001 PS-45750-001-001, PS-5556-001-001, TS-5556-002-001 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 5559 Series Mates With Dual Row Receptacle Housing 5557 Mini-Fit Jr. TPA Cable Assembly 45135 Mini-Fit Jr. Cable Assembly 245135 Use With 5558 , 30490 Male Terminal, 46012 Mini-Fit Plus Crimp Terminal Sales Drawing SD-5559-NP-000 This document was generated on 11/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 39-01-2061
