0039012065

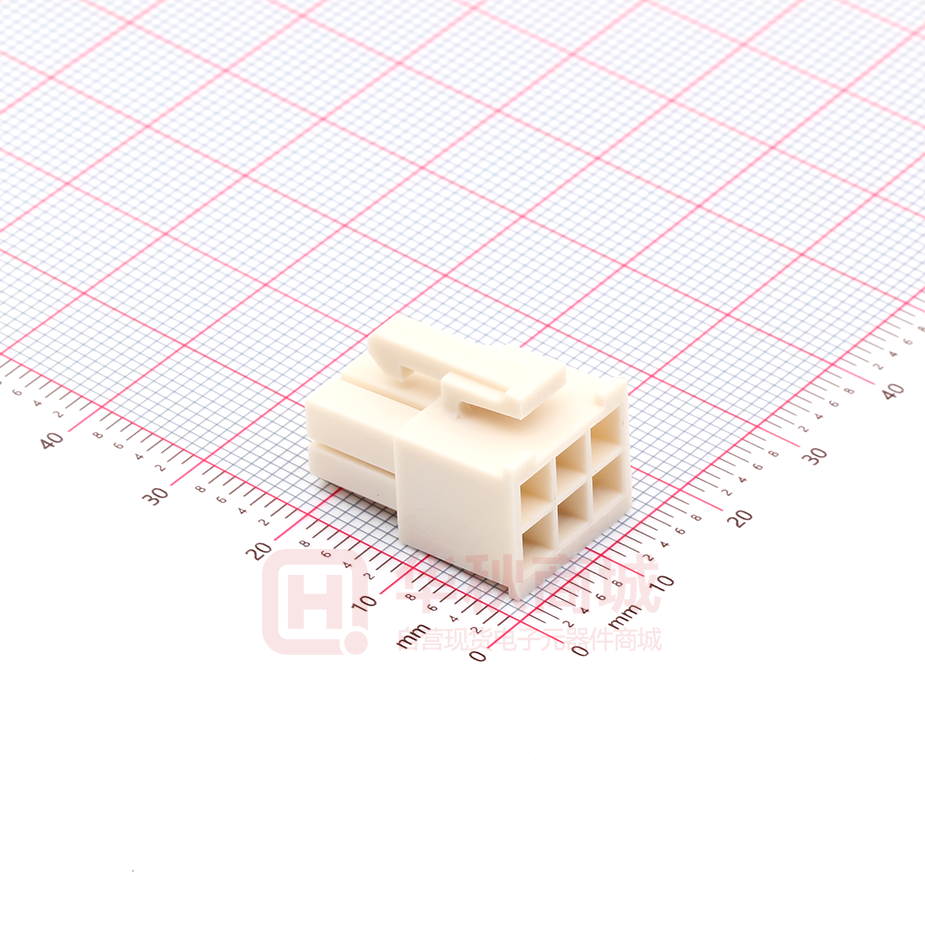

This document was generated on 10/19/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0039012065 Active Overview: Description: Mini-Fit Jr. Power Connectors Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Natural Documents: 3D Model Drawing (PDF) Product Specification PS-45750-001-001 (PDF) Product Specification PS-5556-001-001 (PDF) Agency Certification CSA UL General Product Family Series Application Comments Product Specification TS-5556-002-001 (PDF) Application Specification AS-5557-001-001 (PDF) Packaging Specification PK-5557-002-000 (PDF) RoHS Certificate of Compliance (PDF) LR19980 E29179 Overview Product Name UPC Crimp Housings 5557 Power, Wire-to-Board, Wire-to-Wire Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. . See Molex product specification PS-45750-001 for additional current derating information. . Use with Strain Relief. Mini-Fit Jr. Power Connectors Mini-Fit Jr. 800753584334 Physical Breakaway Circuits (maximum) Color - Resin Flammability Gender Glow-Wire Capable Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Polarized to Mating Part Stackable Temperature Range - Operating No 6 Natural 94V-0 Receptacle No Nylon 1.405/g 2 Bag No 4.20mm 4.20mm Yes No -40° to +105°C Electrical Current - Maximum per Contact 13.0A Solder Process Data Lead-freeProcess Capability N/A Material Info Engineering Number 5557-06R-210 Reference - Drawing Numbers Application Specification Packaging Specification AS-5557-001-001 PK-5557-002-000 Series image - Reference only EU ELV Compliant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Compliant Not Contained Search Parts in this Series 5557 Series Mates With 5559 Dual Row, 5566 Vertical with Pegs, 5566 Vertical without Pegs, 5569 Right Angle Dual Row with Flanges, 5569 Right Angle Dual Row with Pegs, 43810 , 44068 , 44281 , 87427 , 42404 , 42440 Use With 5556 Mini-Fit Female Crimp Terminals, 45750 Mini-Fit Plus HCS Crimp Terminal Product Specification Sales Drawing PS-45750-001-001, PS-5556-001-001, TS-5556-002-001 SD-5557-003-000 This document was generated on 10/19/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 39-01-2065
