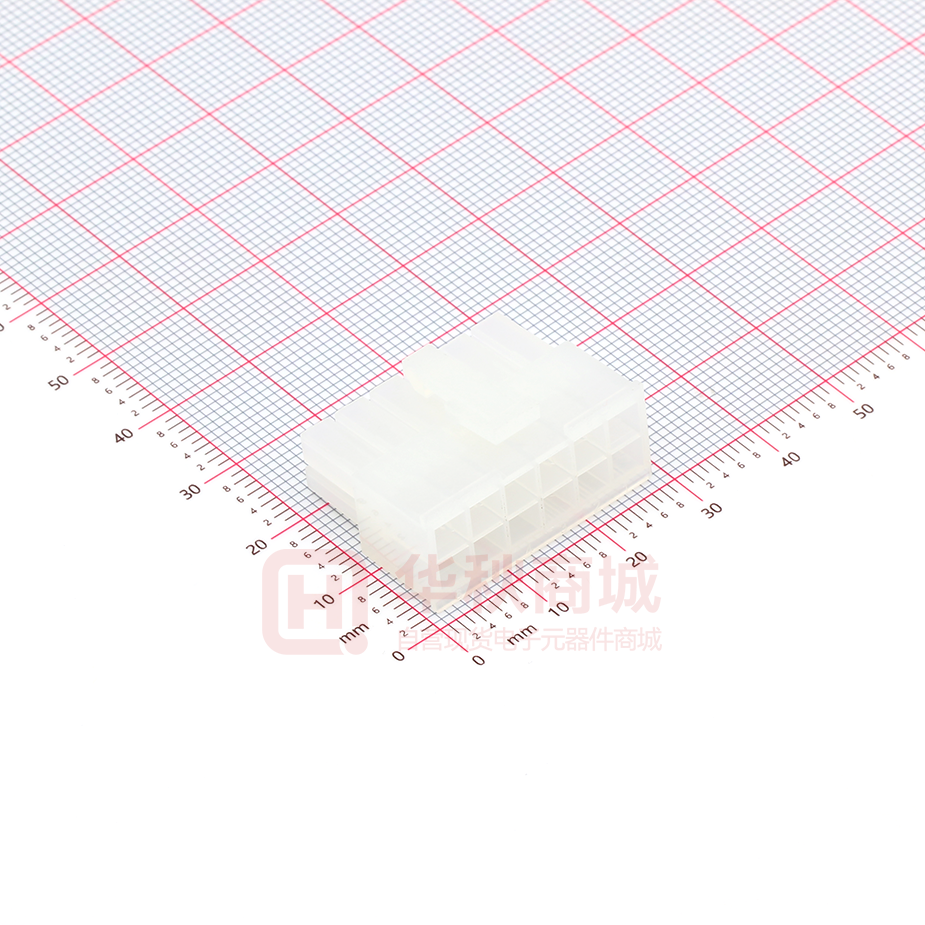

0039012120

12 11 10 9 8 7 5 6 12 CIRCUIT # G 4 CKT SHOWN F E 1 H G F E .42 10.7 .33 8.5 D 2 .42 10.6 .46 11.6 .21±.03 5.4±0.8 3 NOTES: 1) MATERIAL: "BLANK" = NYLON 6/6, UNFILLED UL94V-2, COLOR: NATURAL. "BL" = NYLON 6/6, UNFILLED UL94V-2, COLOR: BLACK. "BU" = NYLON 6/6, UNFILLED UL94V-2, COLOR: BLUE. "RE"= NYLON 6/6, UNFILLED UL94V-2, COLOR: RED. "YE"= NYLON 6/6, UNFILLED UL94V-2, COLOR: YELLOW "GRE"= NYLON 6/6, UNFILLED UL94V-2, COLOR: GREEN. "210" = NYLON 6/6, UNFILLED UL94V-0, COLOR: NATURAL. "400" = NYLON 6/6, UNFILLED UL94V-0, COLOR: BLACK. 2) FINISH: NOT APPLICABLE 3) PRODUCT SPECIFICATION: PS-5556-001 4) PACKAGING: BULK 5) PART MATES WITH MOLEX PLUG #5559 AND HEADERS #5566, #5569. 6) PART TO BE USED WITH MOLEX FEMALE TERMINAL #5556. 7) PART IS NOT DESIGNED FOR CURRENT SHARING. 8) CONNECTORS ARE NOT TO BE MATED OR UNMATED WHILE CIRCUITS ARE LIVE. 9) WIRES ARE TO BE DRESSED IN SUCH A MANNER TO ALLOW THE TERMINALS TO FLOAT FREELY IN THE POCKET. 10) PART CONFORMS TO CLASS "B" REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002 WITH THE EXCEPTION OF DISCOLORATION, FLASH AND SINK MEET CLASS "C" REQUIREMENTS. 11 TO BE MEASURED AT SURFACE Z 12 TEXT ON PART IS FOR REFERENCE ONLY. TEXT AND TEXT LOCATION MAY VARY DEPENDING ON PART NUMBER AND/OR TOOL. H 12 4 D .77 19.6 C .25 6.3 Z C .12 3.0 4-24 CKT 2.031/(51.60) 1.866/(47.40) 1.701/(43.20) 1.535/(39.00) 1.370/(34.80) 1.205/(30.60) 1.039/(26.40) 0.874/(22.20) 0.709/(18.00) 0.543/(13.80 0.378/(9.60) 0.213/(5.40) A 2 CKT ONLY .098 2.50 B .38 9.6 RELEASE STATUS FORMAT: Eng-lega-master-tb-prod-C REVISION: C DATE: 2016/02/04 12 ±.02 11 ±0.4 C 10 0 = 0 9 8 7 6 0 = 0 = 0 = 0 2016/10/06 2016/10/27 2016/11/02 = 102682 CSLAFTER JBELL FSMITH 0 = RELEASE DATE 11 = J15 5 REV A ±.02 ±0.4 0 EC NO: DRWN: CHK'D: APPR: B A .04 1.0 = ADD PN 39-02-8060 .165TYP 4.20 / 0 C / 0 B B C QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE SYMBOLS .165 4.20 .106 2.70 1.819/(46.20) 1.654/(42.00) 1.488/(37.80) 1.323/(33.60) 1.157/(29.40) 0.992/(25.20) 0.827/(21.00 0.661/(16.80) 0.496/(12.60) 0.331/(8.40) 0.165/(4.20) GENERAL TOLERANCES (UNLESS SPECIFIED) IN/MM INCH MM 4:1 DRWN BY DATE 4 PLACES ± ± S.MOCHIZUKI 3 PLACES ± ± 0.01 CHK'D BY 2 PLACES ± 0.25 ± 0.015 M.FUKUSHIMA 1 PLACES ± 0.38 ± APPR BY 0 PLACES ± ± FSMITH ANGULAR TOL ± 0.5 DRAWING SIZE DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 4 '90/02/22 DATE MINIFIT JR RECEPTACLE HOUSING DUAL ROW 2-24 CKT '97/01/08 DATE PRODUCT CUSTOMER DRAWING 2011/02/21 THIRD ANGLE PROJECTION C SERIES MATERIAL NUMBER 5557 SEE CHART GENERAL MARKET DOC TYPE DOC PART SHEET NUMBER DOCUMENT NUMBER SD-5557-003 3 CUSTOMER 2 PSD 1 OF 2 000 1 A 12 11 10 9 7 8 5 6 4 3 2 1 H H LEGEND * CIRCUIT SIZE RECEPTACLE G G MATERIAL (SEE NOTE 1) F F V-0 (NATURAL) V-0 (BLACK) * * E (NOT TO SCALE) 39-03-9242 39-03-9222 39-03-9202 39-03-9182 39-03-9162 39-03-9142 39-03-9122 39-03-9102 39-03-9082 39-03-9062 39-03-9042 39-03-9022 39-01-2245 39-01-2225 39-01-2205 39-01-2185 39-01-2165 39-01-2145 39-01-2125 39-01-2105 39-01-2085 39-01-2065 39-01-2045 39-01-2025 5557-24R-400 5557-22R-400 5557-20R-400 5557-18R-400 5557-16R-400 5557-14R-400 5557-12R-400 5557-10R-400 5557-08R-400 5557-06R-400 5557-04R-400 5557-02R-400 5557-24R-210 5557-22R-210 5557-20R-210 5557-18R-210 5557-16R-210 5557-14R-210 5557-12R-210 5557-10R-210 5557-08R-210 5557-06R-210 5557-04R-210 5557-02R-210 D E D * = CONSULT FACTORY FOR AVAILABILITY. V-2 (BLUE) V-2 (YELLOW) V-2 (GREEN) - C * 39-02-7108 5557-10R-BU * * * B * * * 39-02-7069 5557-06R-GRE 39-02-7029 5557-02R-GRE 39-02-8061 39-02-8041 39-02-8021 V-2 (BLACK) V-2 (RED) 5557-06R-YE 5557-04R-YE 5557-02R-YE * * - 39-02-8100 * * 5557-10R-RE 39-02-8060 5557-06R-RE 39-02-8040 5557-04R-RE - 39-01-3245 39-01-3225 39-01-3205 39-01-3185 39-01-3165 39-01-3145 39-01-3125 39-01-3105 39-01-3085 39-01-3065 39-01-3045 39-01-3025 V-2 (NATURAL) 39-01-2240 39-01-2220 39-01-2200 39-01-2180 39-01-2160 39-01-2140 39-01-2120 39-01-2100 39-01-2080 39-01-2060 39-01-2040 39-01-2020 5557-24R-BL 5557-22R-BL 5557-20R-BL 5557-18R-BL 5557-16R-BL 5557-14R-BL 5557-12R-BL 5557-10R-BL 5557-08R-BL 5557-06R-BL 5557-04R-BL 5557-02R-BL 5557-24R 5557-22R 5557-20R 5557-18R 5557-16R 5557-14R 5557-12R 5557-10R 5557-08R 5557-06R 5557-04R 5557-02R C B = 0 = 0 = A RELEASE STATUS FORMAT: Eng-lega-master-tb-prod-C REVISION: C DATE: 2016/02/04 12 P1 RELEASE DATE 11 02.11.2016 C 21:11:45 10 9 8 7 6 0 = 0 = 0 = 0 J15 5 REV 0 102682 CSLAFTER JBELL FSMITH = EC NO: DRWN: CHK'D: APPR: 0 ADD PN 39-02-8060 = 2016/10/06 2016/10/27 2016/11/02 QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE SYMBOLS GENERAL TOLERANCES (UNLESS SPECIFIED) IN/MM INCH MM 4:1 DRWN BY DATE 4 PLACES ± ± S.MOCHIZUKI 3 PLACES ± ± 0.01 CHK'D BY 2 PLACES ± 0.25 ± 0.015 M.FUKUSHIMA 1 PLACES ± 0.38 ± APPR BY 0 PLACES ± ± FSMITH ANGULAR TOL ± 0.5 DRAWING SIZE DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 4 '90/02/22 DATE MINIFIT JR RECEPTACLE HOUSING DUAL ROW 2-24 CKT '97/01/08 DATE PRODUCT CUSTOMER DRAWING 2011/02/21 THIRD ANGLE PROJECTION C SERIES MATERIAL NUMBER 5557 SEE CHART GENERAL MARKET DOC TYPE DOC PART SHEET NUMBER DOCUMENT NUMBER SD-5557-003 3 CUSTOMER 2 PSD 2 OF 2 000 1 A
