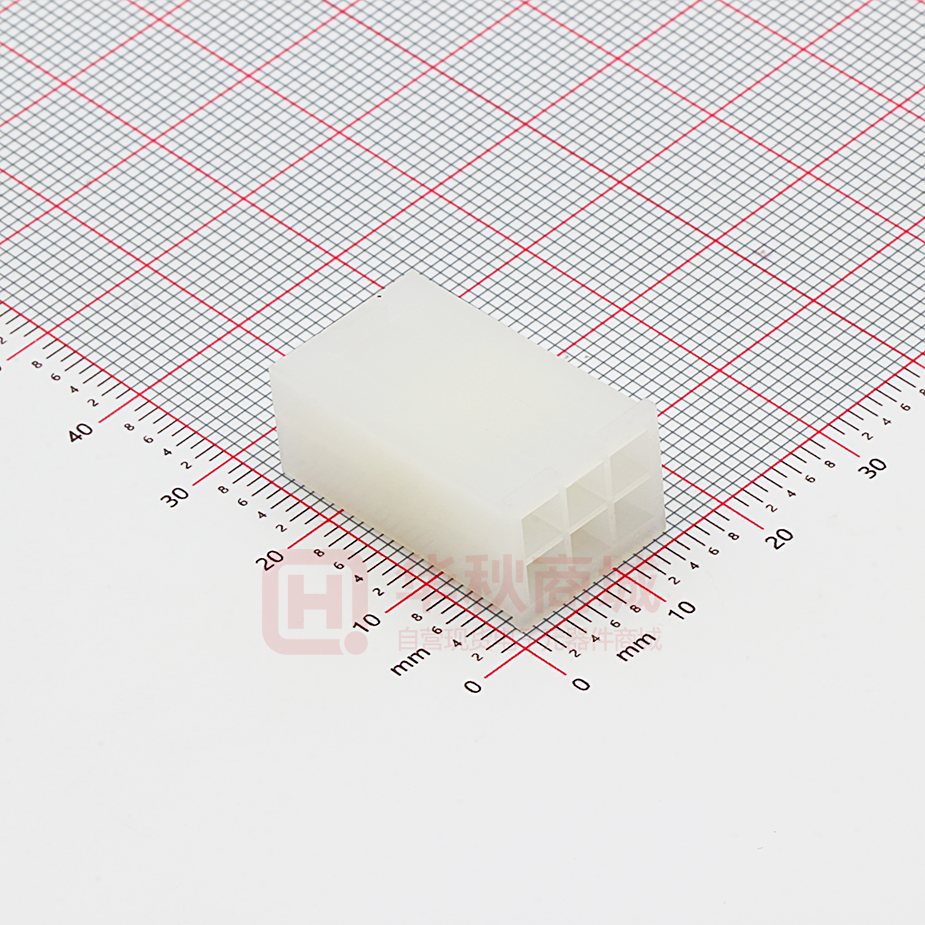

This document was generated on 06/08/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0039013063 Active minifit_jr 4.20mm (.165") Pitch Mini-Fit Jr.™ Plug Housing, Dual Row, without Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 6 Circuits Documents: 3D Model Drawing (PDF) Product Specification PS-5556-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only Agency Certification CSA TUV UL LR19980 R72081037 E29179 General Product Family Series Comments MolexKits Overview Product Name Crimp Housings 5559 Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. . See Molex product specification PS-45750-001 for additional current derating information.. Glow Wire Equivalent Part Number 50361675 Yes minifit_jr Mini-Fit Jr.™ Physical Breakaway Circuits (maximum) Color - Resin Flammability Gender Glow-Wire Compliant Keying to Mating Part Lock to Mating Part Material - Resin Number of Rows Packaging Type Panel Mount Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Pitch - Term. Interface (in) Pitch - Term. Interface (mm) Polarized to Mating Part Stackable Temperature Range - Operating No 6 Natural 94V-2 Male No None Yes Nylon 2 Bag No 0.165 In 4.20 mm 0.165 In 4.20 mm Yes No -40°C to +105°C Electrical Current - Maximum per Contact 13A Material Info Old Part Number 5559-06P1 Reference - Drawing Numbers Packaging Specification PK-5559-002 EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Search Parts in this Series 5559Series Mates With 39-01-2060 Receptacle Housing Use With 5558 Mini-Fit Jr.™ Male Crimp Terminals. 44478 Mini-Fit HCS™ Male Crimp Terminals. 30490 Mini-Fit® Male Grounding Crimp Terminals Product Specification Sales Drawing Test Summary PS-5556-001 SD-5559-NP1* TS-5556-002 This document was generated on 06/08/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
