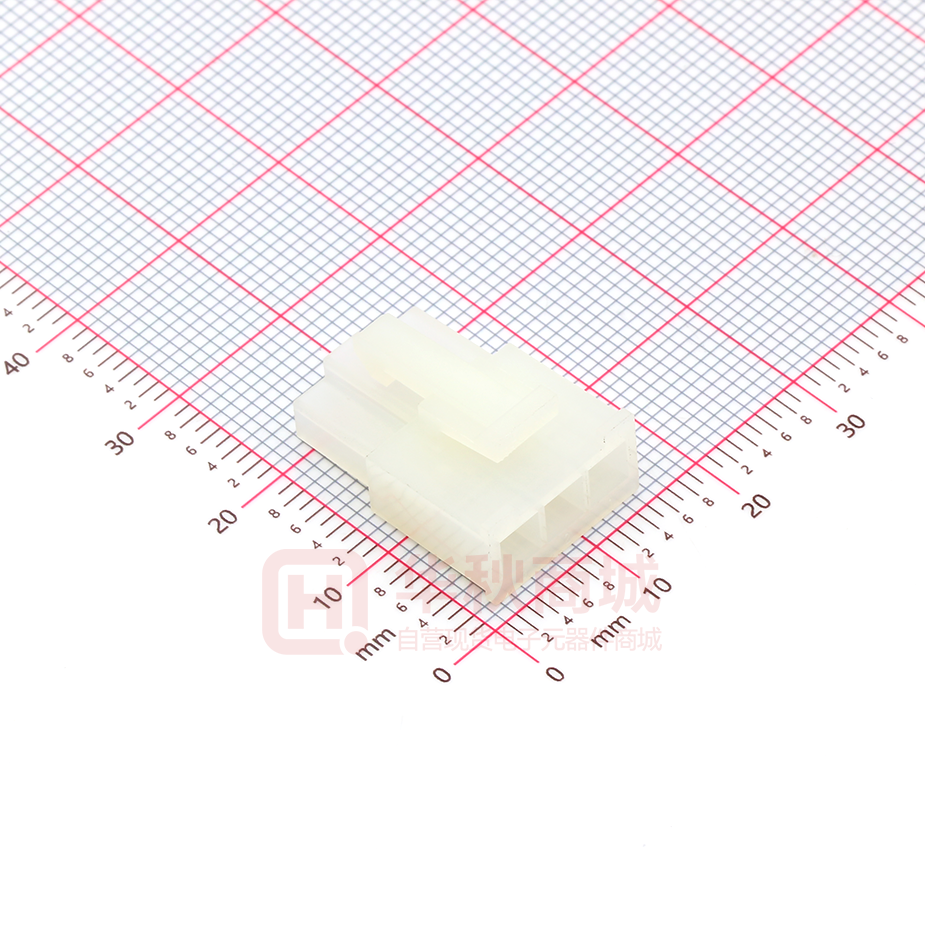

0039014030

This document was generated on 09/20/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0039014030 Active Overview: Description: Mini-Fit Jr. Power Connectors Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-2, Natural Documents: 3D Model Drawing (PDF) Product Specification PS-45750-001-001 (PDF) Product Specification PS-5556-001-001 (PDF) Product Specification TS-5556-002-001 (PDF) Agency Certification CSA UL General Product Family Series Application Comments Application Specification AS-5557-001-001 (PDF) Packaging Specification PK-5557-002-000 (PDF) Test Summary 55570000-TS-000 (PDF) RoHS Certificate of Compliance (PDF) LR19980 E29179 Overview Product Name UPC Crimp Housings 5557 Power, Wire-to-Board, Wire-to-Wire Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. . See Molex product specification PS-45750-001 for additional current derating information.. Glow Wire Equivalent Part. Mini-Fit Jr. Power Connectors Mini-Fit Jr. 800753627956 Physical Breakaway Circuits (maximum) Color - Resin Flammability Gender Glow-Wire Capable Keying to Mating Part Lock to Mating Part Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Polarized to Mating Part Stackable Temperature Range - Operating No 3 Natural 94V-2 Receptacle No None Yes Nylon 0.880/g 1 Bag No 4.20mm 4.20mm Yes No -40° to +105°C Electrical Current - Maximum per Contact 13.0A Solder Process Data Lead-freeProcess Capability N/A Material Info Engineering Number 5557-03R2 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 5557 Series Mates With 39-01-4032 Panel Mount Plug, 39-01-4036 Free Hanging Plug, 39-30-1039 Vertical Header, 39-30-2035 Vertical Header, 39-30-2031 Vertical Header Use With 5556 Mini-Fit Female Crimp Terminals, 45750 Mini-Fit Plus HCS Crimp Terminal Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing Test Summary AS-5557-001-001 PK-5557-002-000 PS-45750-001-001, PS-5556-001-001, TS-5556-002-001 55570302-SD-000 55570000-TS-000 This document was generated on 09/20/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 39-01-4030
