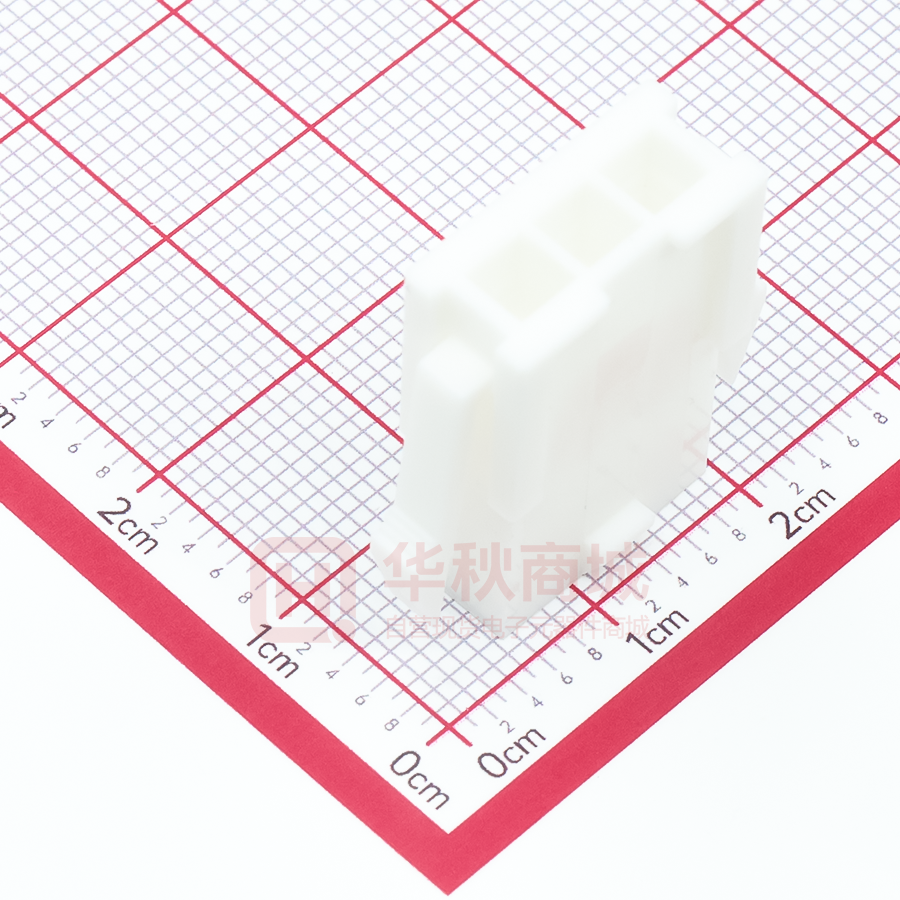

0039014033

This document was generated on 10/19/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0039014033 Active Mini-Fit Jr. Power Connectors Mini-Fit Jr. Plug Housing, Single Row, 3 Circuits, UL 94V-0, with Panel Mounting Ears, Natural Documents: 3D Model Drawing (PDF) Product Specification PS-45750-001-001 (PDF) Product Specification PS-5556-001-001 (PDF) Agency Certification CSA UL General Product Family Series Application Comments Product Specification TS-5556-002-001 (PDF) Application Specification AS-5557-001-001 (PDF) Packaging Specification PK-5559-003-001 (PDF) RoHS Certificate of Compliance (PDF) LR19980 E29179 Overview Product Name UPC Crimp Housings 5559 Power, Wire-to-Board, Wire-to-Wire Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. . See Molex product specification PS-45750-001 for additional current derating information. Mini-Fit Jr. Power Connectors Mini-Fit Jr. 800754381062 Physical Breakaway Circuits (maximum) Color - Resin Flammability Gender Glow-Wire Capable Keying to Mating Part Lock to Mating Part Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Polarized to Mating Part Stackable Temperature Range - Operating No 3 Natural 94V-0 Plug No None Yes Nylon 1.439/g 1 Bag Yes 4.20mm 4.20mm Yes No -40° to +105°C Electrical Current - Maximum per Contact 13.0A Solder Process Data Lead-freeProcess Capability N/A Material Info Engineering Number 5559-03P2-210 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 5559 Series Mates With Receptacle Housing 39-01-4031 Use With 5558 Mini-Fit Jr. Male Crimp Terminals. 30490 Mini-Fit Male Grounding Crimp Terminals 46012 Mini-Fit Plus Crimp Terminal Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing AS-5557-001-001 PK-5559-003-001 PS-45750-001-001, PS-5556-001-001, TS-5556-002-001 55590300-SD-000 This document was generated on 10/19/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 39-01-4033
