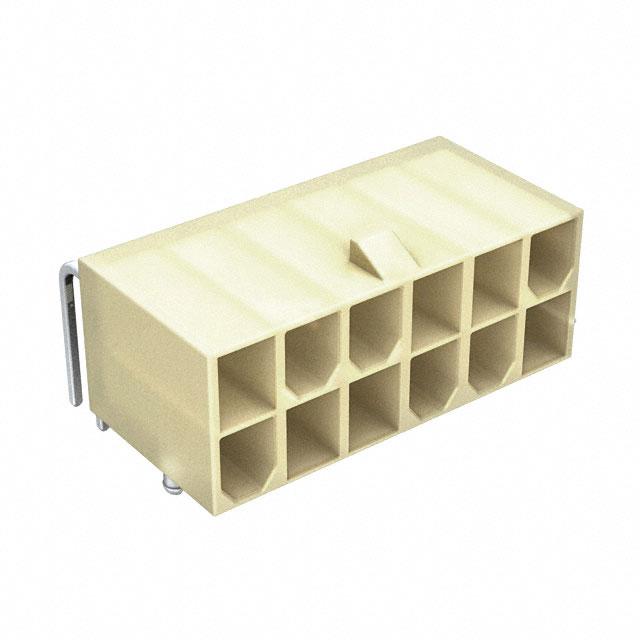

This document was generated on 03/09/2016 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0039294129 Active Mini-Fit Jr.™ Power Connectors Mini-Fit® Jr. Header, Dual Row, Right Angle, with PCB Mounting Flange, 12 Circuits, PA Polyamide Nylon 6/6 94V-0, .0.76µm Gold (Au) Plating Documents: 3D Model Drawing (PDF) Product Specification PS-45750-001 (PDF) Product Specification PS-5556-001 (PDF) Packaging Specification PK-5569-002 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only Agency Certification CSA UL General Product Family Series Application Comments Overview Product Name UPC Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Flammability Glow-Wire Compliant Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PCB Locator PCB Retention PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Plating min - Termination Polarized to Mating Part Polarized to PCB LR19980 E29179 PCB Headers 5569 Power, Wire-to-Board Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit® Plus HCS Crimp Terminal Crimped to 16 AWG wire., See Molex Product specification PS-5556-001 for additional current de-rating information. Mini-Fit Jr.™ Power Connectors Mini-Fit Jr.™ 800754930932 No 12 12 Natural 30 No 94V-0 No No None Yes Brass Gold Tin Nylon 4.422/g 2 Right Angle Yes Yes 1.78mm Bag 4.20mm 4.20mm 0.762µm 2.540µm Yes Yes EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per -ED/79/2015 (17 December 2015) Halogen-Free Status Low-Halogen Need more information on product environmental compliance? Email productcompliance@molex.com Please visit the Contact Us section for any non-product compliance questions. China ROHS ELV Green Image Not Relevant Search Parts in this Series 5569 Series Mates With 5557 Mini-Fit Jr.™ Receptacle Housing Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style Fully No No -40°C to +105°C Through Hole Electrical Current - Maximum per Contact Voltage - Maximum 13.0A 600V Solder Process Data Duration at Max. Process Temperature (seconds) Lead-freeProcess Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 005 WAVE 001 260 Material Info Old Part Number 5569-12AG1-210 Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing PK-5569-002 PS-45750-001, PS-5556-001 SD-5569-002 This document was generated on 03/09/2016 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
