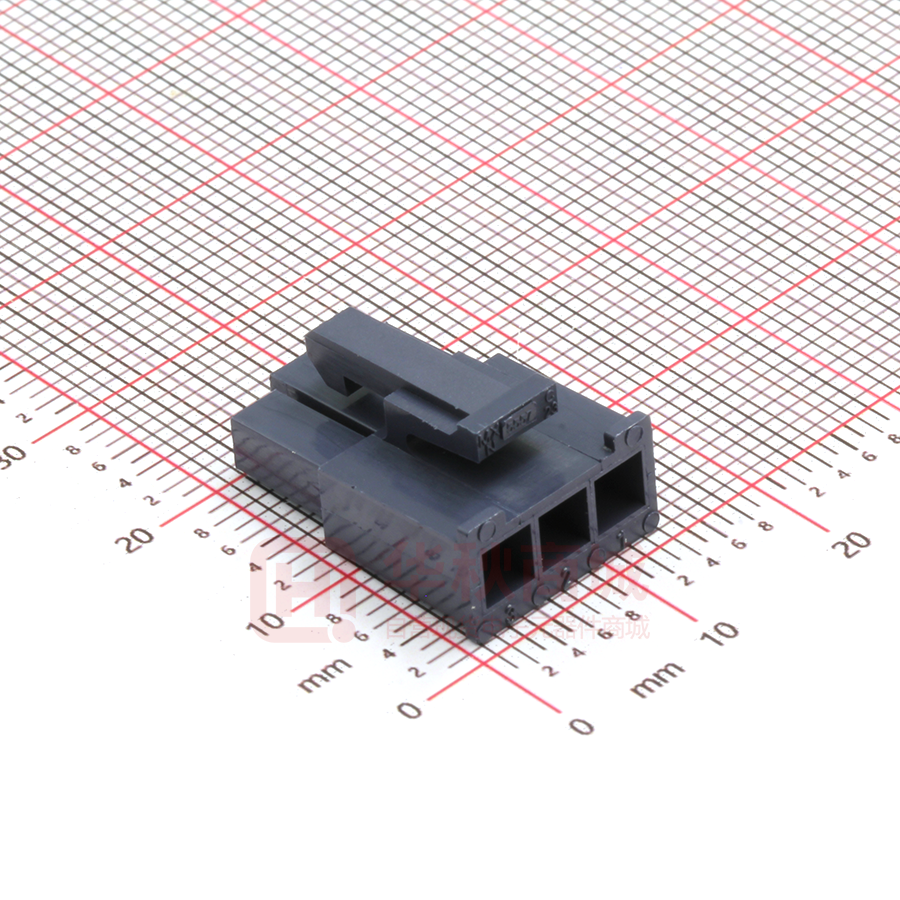

0050291662

10 F 9 7 8 CKT SIZE MATERIAL (SEE NOTE 1) PART NO. ENG. NO. 50-29-1662 46994-0312 3 UL 94V-2,BLACK 46994-0302 46994-0302 3 UL 94V-2,BEIGE 5 6 4 3 46994-03 * 2 CKT SIZE MATERIAL OPTION (SEE NOTE 1) CONFIGURATION 2= SINGLE ROW SEE NOTE 11 .24 ±.03 6.0 ±0.8 .29 7.4 D .76 19.3 .45 11.5 .33 8.5 1 NOTES: 1. MATERIAL: "0"=NYLON, UL94V-2, COLOR :NATURAL (BEIGE); IEC 60335-1, 5th EDITION GLOW WIRE CAPABLE. "1"=NYLON, UL94V-2, COLOR:BLACK; IEC 60335-1, 5th EDITION GLOW WIRE CAPABLE. 2. FINISH: NOT APPLICABLE. 3. PRODUCT SPECIFICATION: PS-5556-001. 4. PACKING: PK-5557-002. 5. PART MATES WITH MOLEX RIGHT ANGLE HEADER #172648-**03, VERTICAL HEADER #172647-**03 AND PLUG #172646-03**. 6. PART TO BE USED WITH MOLEX FEMALE TERMINAL #5556. 7. WHEN MATING WITH ANOTHER CONNECTOR, THE CENTER CIRCUIT WILL "MAKE FIRST AND BREAK LAST". 8. PART IS NOT DESIGNED FOR CURRENT SHARING. 9. CONNECTOR ASSEMBLIES ARE NOT TO BE MATED OR UNMATED WHILE CIRCUITS ARE LIVE. 10. WIRES ARE TO BE DRESSED IN SUCH A MANNER TO ALLOW THE TERMINALS TO FLOAT FREELY IN THE POCKET. 11. "MX" FACTORY ID MAY BE LOCATED ON LATCH OR SURFACE INDICATED. CAVITY NO. MAY BE LOCATED ON EITHER SIDE OF SERIES NO. ON LATCH. 12. PART CONFORMS TO CLASS "B" REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002 WITH THE EXCEPTION OF DISCLORATION, FLASH AND SINK MEET CLASS "C" REQUIREMENTS. 13. BUBBLE IS ACCEPTABLE ON LATCH AREA. LEGEND E 2 .81 20.6 F E D .25 6.3 C C .130 3.30 .12 3.0 .165 4.20 (2 PLACES) .15 3.8 B B .21 5.4 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE mm NTS CURRENT REV DESC: GENERAL TOLERANCES (UNLESS SPECIFIED) .04 1.0 .54 13.8 RIB INDICATES CIRCUIT #1 A DOCUMENT STATUS FORMAT: master-tb-prod-B REVISION: J1 DATE: 2021/05/01 10 P1 RELEASE DATE 9 2022/09/01 ANGULAR TOL ± 4 PLACES ± 3 PLACES ± 2 PLACES ± 1 PLACE ± 0 PLACES ± 0.5 ° 0.25 0.38 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 16:35:21 8 7 6 5 4 3 CIRCUIT RECEPTACLE, (MINI-FIT JR.) (MAKE-FIRST/BREAK-LAST) EC NO: 719028 DRWN: JERRYW8 CHK'D: XQZHANG APPR: XQZHANG INITIAL REVISION: DRWN: NNGUYEN APPR: FSMITH THIRD ANGLE PROJECTION 3 2022/08/23 2022/09/01 2022/09/01 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2013/04/12 2014/07/28 DRAWING SERIES B-SIZE 46994 SD-46994-0001 MATERIAL NUMBER SEE CHART 2 PSD 001 CUSTOMER GENERAL MARKET A3 SHEET NUMBER 1 OF 1 1 A
