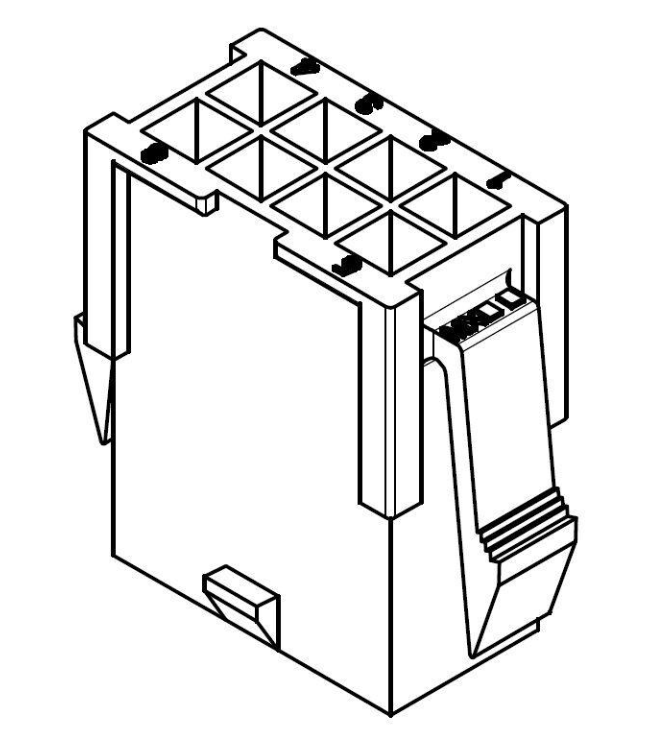

This document was generated on 07/03/2014 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 50-36-1734 Active Mini-Fit Jr.™ Power Connectors Mini-Fit Jr.™ Plug Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 2 Circuits, Glow Wire Compatible Documents: 3D Model Drawing (PDF) Product Specification PS-45750-001 (PDF) Product Specification PS-5556-001 (PDF) Packaging Specification PK-5557-003 (PDF) Packaging Specification PK-5559-001 (PDF) Test Summary TS-5556-002 (PDF) Test Summary TS-5559-001 (PDF) RoHS Certificate of Compliance (PDF) General Product Family Series Application Comments Overview Product Name UPC Crimp Housings 5559 Power, Wire-to-Board, Wire-to-Wire Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. . See Molex product specification PS-45750-001 for additional current derating information. Mini-Fit Jr.™ Power Connectors Mini-Fit Jr.™ 800756784199 Physical Breakaway Circuits (maximum) Color - Resin Gender Glow-Wire Compliant Keying to Mating Part Lock to Mating Part Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Polarized to Mating Part Ports Stackable Temperature Range - Operating No 2 Black Plug Yes None Yes Nylon 1.166/g 2 Bag Yes 4.20mm 4.20mm Yes 1 No -40°C to +105°C Electrical Current - Maximum per Contact 13A Material Info Old Part Number 5559-02P-225 Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing Test Summary PK-5557-003, PK-5559-001 PS-45750-001, PS-5556-001 SD-5559-425 TS-5556-002, TS-5559-001 Series image - Reference only EU RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Low-Halogen Status Low-Halogen China RoHS Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Search Parts in this Series 5559Series Mates With 5557 Receptacle Housing Use With 5558 Male Terminal This document was generated on 07/03/2014 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 50-36-1734
