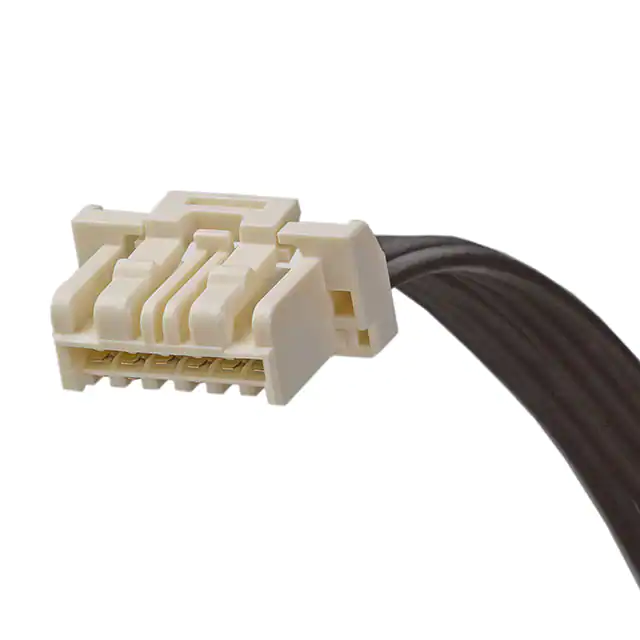

0151350606

9 7 8 5 6 4 3 2 1 REVISIONS EC NO DATE 2016.12.24 REV A CHANGER DICK DESCRIPTION INITIAL RELEASE. L1 E E L2 P1 1 6 6 1 C AB D SEE DETAIL A P2 AB D D TABLE PART NUMBER 151350600 151350601 151350602 151350603 151350605 151350606 C L1 50 ± 5 100 ± 8 150 ± 10 300 ± 10 450 ± 15 600 ± 15 L2 18REF 44REF 69REF 144REF 219REF 294REF TITLE Clickmate 6 Circuit 50MM Clickmate 6 Circuit 100MM Clickmate 6 Circuit 150MM Clickmate 6 Circuit 300MM Clickmate 6 Circuit 450MM Clickmate 6 Circuit 600MM MOLEX PN P/N:15135XXXX MOLEX C DETAIL A NOTES 1. THIS PRODUCT MUST MEET 2011/65/EU ROHS COMPLIANCE. 此产品需符合 2011/65/EU ROHS环保要求. 2. ELECTRICAL PERFORMANCE REFER TO ES-000. 电气特性参考ES-000. 3. LABEL TEXT MUST BE 2mm MAX. IN HEIGHT WITH ARIAL FONT. 标签字高最大2mm,字体ARIAL. 4.STICK UL LABEL ON THE OUTSIDE CARTON. 外箱上贴UL标签. 9 8 ANGULAR TOL ± = 0 4 PLACES ± 3 PLACES ± 2 PLACES ± A/R B 12 2 L(MM) Q'TY = 7 6 0 0 = 0 = 0 5 NTS DATE ° WLXIE 2016/11/18 A 2016/12/23 DHUANG16 APPR BY SEE TABLE DATE CHK'D BY 111920 WLXIE DHUANG16 YXZOU = 0 MM DRWN BY 0 = RELEASE DATE TOLERANCES (UNLESS SPECIFIED) = REV RELEASE STATUS 0 2016/12/24 2016/12/28 2017/01/10 = C FORMAT: master-tb-prod-A3 REVISION: G DATE: 2015/12/14 1 Blank label 12.7x35.5mm (WHT:12.7mm) HF 24AWG;PLATED;PVC;BK;OD=1.10MM;UL1061 1.5 W/B Single Plg Term Chain W/Plt ,Tin Plating 1.5 W/B Single Plug Hsg 6Ckt Beige DESCRIPTION QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE SYMBOLS GENERAL WIRING CHART P1 P2 COLOR 1 6 BLACK 5 2 BLACK 4 3 BLACK 4 3 BLACK 5 2 BLACK 6 1 BLACK A D C B A ITEM EC NO: DRWN: CHK'D: APPR: B A DATE PRODUCT CUSTOMER DRAWING ± 1 PLACE ± 0 PLACES YXZOU DRAWING SIZE DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 4 2017/01/10 THIRD ANGLE PROJECTION A3 SERIES MATERIAL NUMBER 201234 SEE TABLE DOCUMENT NUMBER GENERAL MARKET DOC TYPE DOC PART SHEET NUMBER 2012341677 3 CUSTOMER 2 PSD 1 OF 1 000 1
