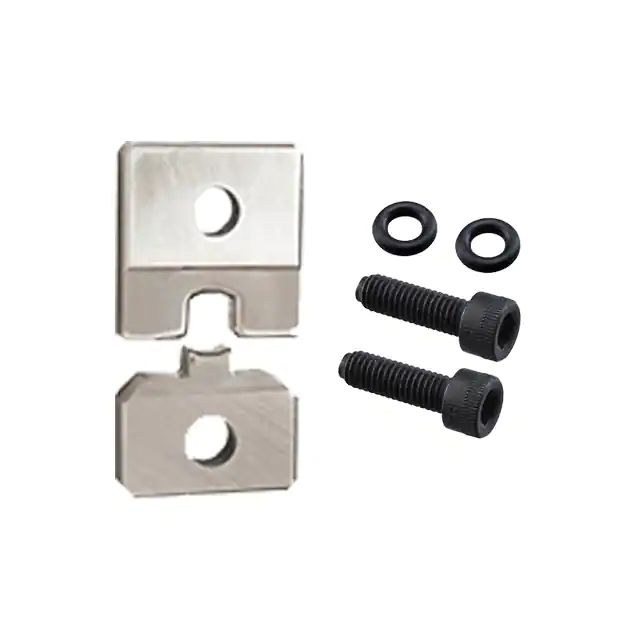

0190270026

This document was generated on 10/07/2022 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0190270026 Active Overview: Description: Application Tooling ATP Crimp Dies for the Tape Crimp Module and ATP-101 & 301 Press Documents: RoHS Certificate of Compliance (PDF) General Product Family Series Comments Function Geographic Area Level of Automation More Detailed Tech Information Overview Product Name Taxonomy Tool Type UPC Warranty Disclaimer Material Info Engineering Number Reference - Drawing Numbers Application Tooling Documents Application Tooling 207126 The Crimp Tape Module 640162000 is a base unit that will work like an applicator in a Molex TM-3000 638017200, 638017300 industry standard crimp press or the Molex TM-4000 638017600 industry standard crimp press. The Crimp Tape Module will accept all ATP-301 and ATP-201 style crimp dies. This Crimp Tape Module will allow customers to process most of Molex's Mylar Tape product from 2 AWG uninsulated and 4 AWG insulated products and up. The Crimp Tape Module will NOT work in any other industry standard crimp press or wire process machine. These ATP-301 style die sets can be used in the older style suitcase presses. Crimp Global Semi-Automatic applicationtooling@molex.com Application Tooling N/A Applicators and Crimp Modules Crimp Module 800753040922 CAUTION: Molex tooling crimp specifications are valid only when used with Molex terminals and tooling manufactured by Molex and sold by Molex or authorized distributors ("Molex Tooling"). When using tooling other than Molex Tooling with Molex specific connector systems listed in our ATS documents, the Molex tooling qualification does not apply and the responsibility for full qualification of the connector system is that of the customer. Molex accepts no liability for connector performance or tooling support where tooling other than Molex Tooling is used or where Molex Tooling is modified. ATP-A-110 ATS-190270026-001, ATS-TOOLING-ID-ATP-001, TM-640160065-001, TM-640160065CN-001, TM-640160065DE-001, TM-640160065FR-001, TM-640160065IT-001, TM-640160065JP-001, TM-640160065KR-001, TM-640160065MY-001, TM-640160065PL-001, TM-640160065RU-001, TM-640160065SK-001, TM-640160065SP-001, Series image - Reference only EU ELV Not Reviewed EU RoHS China RoHS Not Reviewed REACH SVHC Not Reviewed Halogen-Free Status Not Reviewed For more information, please visit Contact US China ROHS ELV RoHS Phthalates Not Reviewed Not Reviewed Not Reviewed Search Parts in this Series 207126 Series Use With Molex Crimp Tape Module 640162000 used with Molex TM-3000: 638017200 , 638017300 , Molex TM-4000: 638017600 , Molex ATP-301 Press: 192280030 and Molex ATP-101 style presses. Application Tooling | FAQ Description Product # Krimptite Quick 190220010 Disconnect, Male, for 18-22 (0.80-0.35mm²) Wire, Mylar Tape, Tab 6.35 x 0.81mm Krimptite Butt Splice 191890004 for 18-22 AWG Wire Krimptite Temp192030005 Term Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 1/4" (M6), Mylar Tape Carrier TM-640160065TH-001, TM-640160065TW-001, TM-640160065VN-001 Krimptite Temp192030011 Term Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 6 (M3.5), Mylar Tape Carrier Krimptite Temp192030014 Term Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 8 (M4), Mylar Tape Carrier Krimptite Temp192030016 Term Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 10 (M5), Mylar Tape Carrier This document was generated on 10/07/2022 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
