Part Number:
Status:
0192880028
Active
Overview:
Description:
Application Tooling

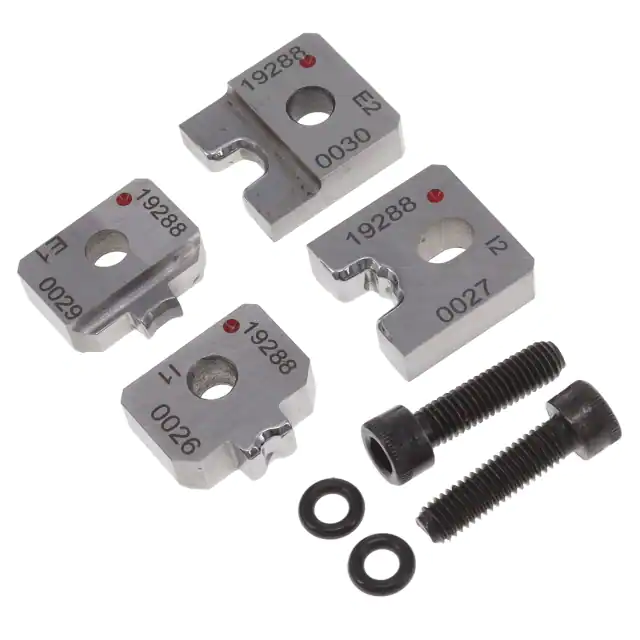

ATP Crimp Dies for the Tape Crimp Module and ATP-101 & 301 Press
Documents:
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Comments
Function
Geographic Area
Level of Automation
More Detailed Tech Information
Overview
Product Name
Taxonomy
Tool Type
UPC
Warranty Disclaimer
Material Info
Engineering Number
Reference - Drawing Numbers
Application Tooling Documents
Application Tooling
207126
The Crimp Tape Module 640162000 is a base unit
that will work like an applicator in a Molex TM-3000
638017200, 638017300 industry standard crimp press
or the Molex TM-4000 638017600 industry standard
crimp press. The Crimp Tape Module will accept all
ATP-301 and ATP-201 style crimp dies. This Crimp
Tape Module will allow customers to process most of
Molex's Mylar Tape product from 2 AWG uninsulated
and 4 AWG insulated products and up. The Crimp Tape
Module will NOT work in any other industry standard
crimp press or wire process machine. These ATP-301
style die sets can be used in the older style suitcase
presses.
Crimp
Global
Semi-Automatic
applicationtooling@molex.com
Application Tooling
N/A
Applicators and Crimp Modules
Crimp Module
800753108899
CAUTION: Molex tooling crimp specifications are
valid only when used with Molex terminals and tooling
manufactured by Molex and sold by Molex or authorized
distributors ("Molex Tooling"). When using tooling
other than Molex Tooling with Molex specific connector
systems listed in our ATS documents, the Molex tooling
qualification does not apply and the responsibility for
full qualification of the connector system is that of the
customer. Molex accepts no liability for connector
performance or tooling support where tooling other
than Molex Tooling is used or where Molex Tooling is
modified.
ATP-AA-512
ATS-192880028-001, ATS-TOOLING-ID-ATP-001,
TM-192280498-001, TM-192280498SP-001,
TM-640160065-001, TM-640160065CN-001,
TM-640160065DE-001, TM-640160065FR-001,
TM-640160065IT-001, TM-640160065JP-001,
TM-640160065KR-001, TM-640160065MY-001,
TM-640160065PL-001, TM-640160065RU-001,
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Relevant
For more information, please visit Contact US
China ROHS
ELV
RoHS Phthalates
Not Relevant
Not Relevant
Not Reviewed
Search Parts in this Series
207126 Series
Use With
Molex Crimp Tape Module 640162000
used with Molex TM-3000: 638017200 ,
638017300 , Molex TM-4000: 638017600
, Molex ATP-301 Press: 192280030 and
Molex ATP-101 style presses.
Application Tooling | FAQ
Description
Product #
Avikrimp Fully
190020002
Insulated Quick
Disconnect, Female,
for 18-22 AWG Wire,
Mylar Tape
Avikrimp Fully
190020007
Insulated Quick
Disconnect, Female,
for 18-22 AWG Wire,
Mylar Tape
Avikrimp Fully
190020010
Insulated Quick
Disconnect, Female,
for 18-22 AWG Wire,
Mylar Tape
TM-640160065SK-001, TM-640160065SP-001,
TM-640160065TH-001, TM-640160065TW-001,
TM-640160065VN-001
Avikrimp Fully
190020014
Insulated Quick
Disconnect, Female,
for 18-22 AWG Wire,
Mylar Tape
Avikrimp Fully
190020017
Insulated Quick
Disconnect, Female,
for 18-22 AWG Wire,
Mylar Tape
Avikrimp Fully
190020020
Insulated Quick
Disconnect, Female,
for 18-22 AWG Wire,
Mylar Tape
Avikrimp Fully
190020022
Insulated Quick
Disconnect, Female,
for 18-22 AWG Wire,
Mylar Tape
Quixon Quick
192770003
Disconnect, Avikrimp
Style, Female, Fully
Insulated Red, 18-22
AWG, Mylar Tap
