0194200002

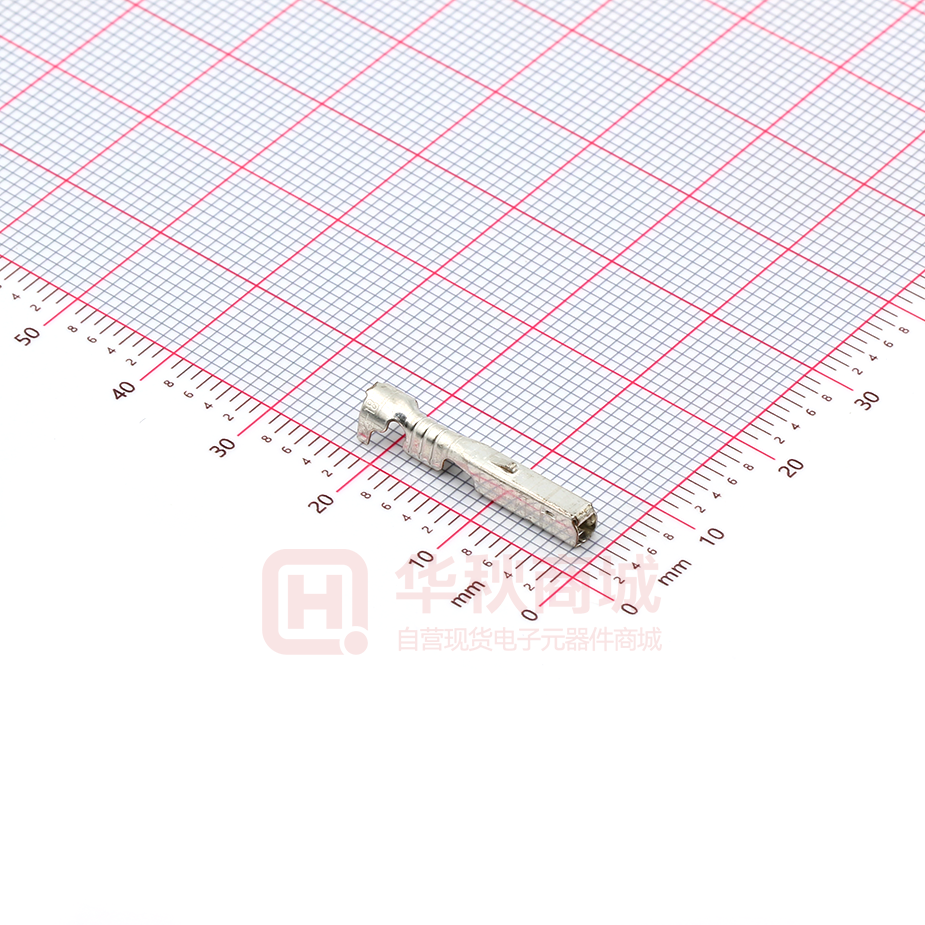

This document was generated on 11/22/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0194200002 Active Overview: Description: MX150L Industrial Sealed Connector System MX150L Female Terminal for 18-22 AWG Wire, Tin Plated, Metal Strip Carrier Documents: Drawing (PDF) Product Specification PS-19417-001-001 (PDF) Agency Certification CSA UL RoHS Certificate of Compliance (PDF) Product Literature (PDF) LR18689 E152602 General Product Family Series Application Comments Crimp Quality Equipment Overview Packaging Alternative Product Literature Order No Product Name UPC Crimp Terminals 19420 Power, Wire-to-Board, Wire-to-Wire UL EI52602 Yes MX150L Industrial Sealed Connector System 19420-0010 (Loose) 987650-2181 MX150L 756054795583 Physical Flammability Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² 94V-0 Female High Performance Alloy (HPA) Tin Tin 0.352/g Reel 1.905µm 1.905µm Crimp or Compression 2.36-2.74mm 18, 19, 20, 22 N/A Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-19417-001-001 SD-19420-001 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 19420 Series Mates With 19417 Use With 19418 Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Hand Crimp Tool 638114400 Hand Crimp Tool 638117600 Manual Extraction 638131500 Tool FineAdjust Applicator 639008400 for Female Terminal, 18-24 AWG Wire T2 Terminator for 639108400 Crimp Terminal, Female 18-24 AWG Wire This document was generated on 11/22/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 19420-0002 19420-0002 (Mouser Reel) 19420-0002 (Cut Strip) 19420-0011 19420-0012
