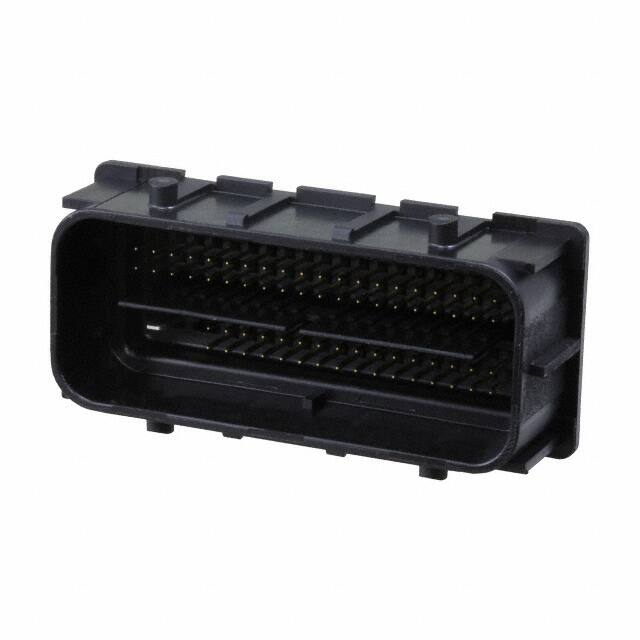

MX123 Header 1.0 SCOPE:: This manual contains supplemental information pertaining to the Molex MX123 Header product line; Molex series numbers 31386 (small footprint) and 31387 1387 (large footprint) 2.0 PRODUCT DESCRIPTION: DESCRIPTION The MX123 Header product line is a series of headers with the following pin configurations: configurations: 56 circuits, circuit , 66 circuits, circuit , 73 circuits, circuit , and 80 circuit circuits.. It features through hole solder pins for the PCB interface and either gold or silver plating pl ating for the connector interface interface.. It is design designed to mate with the Molex MX123 connector family, series numbers 34566 and 34576 34576,, see reference document list for applicable specifications. specifications Large footprint headers assemblies Small footprint header assembly REVISION: A ECR/ECN INFORMATION: EC No: UAU2013-1336 UAU2013 DATE: 2013/02/21 2/21 DOCUMENT NUMBER: AS-31386 31386-200 200 TITLE: Application Specification MX123 Header SHEET No. 1 of 4 CREATED / REVISED BY: CHECKED BY: APPROVED BY: Tim Skiver Dante Dunn Dave Krawczyk TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC MX123 Header 3.0 REFERENCE DOCUMENTS: DOCUMENTS Product Drawings SD-31386-056 SD 056 – 56 Circuit Header, small footprint SD-31387-066 SD 066 – 66 Circuit Header, large footprint SD-31387-073 SD 073 – 73 Circuit Header, large footprint SD-31387-080 SD 080 – 80 Circuit Header, large footprint Product Specifications PS-31386-200 PS 200 – Small footprint PS-31387-200 PS 200 – Large footprint Packaging Specifications PK-31300-840 PK 840 – Gold plated terminals PK-31300-916 PK 916 – Silver plated terminals Mating interface (Reference (Reference information only) SD-31387-173 SD 73 – Large footprint SD-31386-156 SD 56 – Small footprint Connector Interface SD-34566-001 SD 001 – 66 / 73 / 80 Circuit configurations SD-34576-001 SD 001 – 56 Circuit configurations AS-34566-001 AS 001 – MX123 Connector Application Specif Specification ication REVISION: A ECR/ECN INFORMATION: EC No: UAU2013-1336 UAU2013 DATE: 2013/02/21 2/21 DOCUMENT NUMBER: AS-31386 31386-200 200 TITLE: Application Specification MX123 Header SHEET No. 2 of 4 CREATED / REVISED BY: CHECKED BY: APPROVED BY: Tim Skiver Dante Dunn Dave Krawczyk TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC MX123 Header 4.0 PROCEDURE 4.1 ASSEMBLY INSTRUCTIONS: INSTRUCTION - Please ensure that care is taken to avoid damaging the terminals or the plastic during the assembly process Powder free nitrile disposable gloves should be worn when handling the header assemblies Assembly shall not exceed 125°C during post processing or during the attachment process - 4.2 HEADER TO MATING INTERFACE ASSEMBLY a. Adhesive for the attachment: As a general guideline, Molex uses silicone based adhesives as an attachment method method to create a permanent adhesive bond between the sh shroud roud and the mating component. component b. Touch Locations: The part should be handled from the sides, avoiding contact with any of the pins REVISION: A ECR/ECN INFORMATION: EC No: UAU2013-1336 UAU2013 DATE: 2013/02/21 2/21 DOCUMENT NUMBER: AS-31386 31386-200 200 TITLE: Application Specification MX123 Header SHEET No. 3 of 4 CREATED / REVISED BY: CHECKED BY: APPROVED BY: Tim Skiver Dante Dunn Dave Krawczyk TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC MX123 Header Pressure should be applied evenly across the top surface (‘A’ Datum) of the part when attaching to the mating interface. REVISION INFORMATION: INFORMATION REVISION A DATE 1/31/13 DESCRIPTION Initial Release NOTE: PLEASE REFER TO MOLEX.COM MOLEX.COM TO ENSURE THE LATEST REVISION OF THIS DOCUMENT REVISION: A ECR/ECN INFORMATION: EC No: UAU2013-1336 UAU2013 DATE: 2013/02/21 2/21 DOCUMENT NUMBER: AS-31386 31386-200 200 TITLE: Application Specification MX123 Header SHEET No. 4 of 4 CREATED / REVISED BY: CHECKED BY: APPROVED BY: Tim Skiver Dante Dunn Dave Krawczyk TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC
