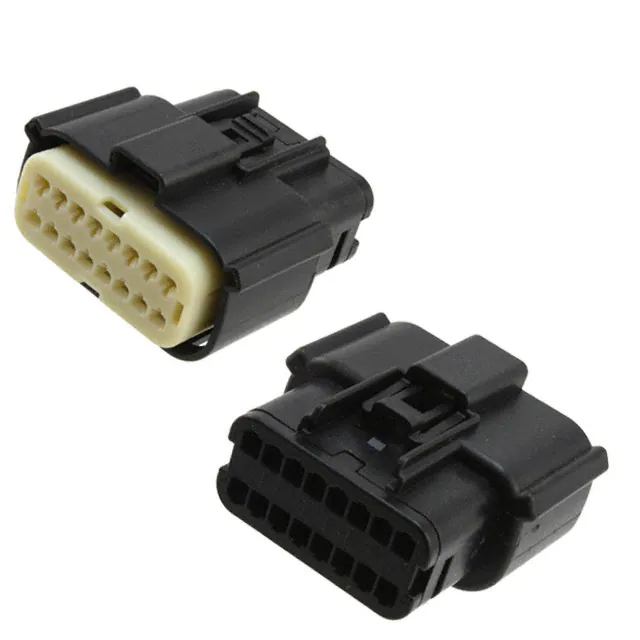

0334721601

MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET ABBREVIATION DESCRIPTION COLOR MATERIAL A-BLACK HOUSING, KEYING OPTION A BLACK SPS/NYLON GF20 B-LIGHT GRAY HOUSING, KEYING OPTION B LIGHT GRAY SPS/NYLON GF20 C-BROWN HOUSING, KEYING OPTION C BROWN SPS/NYLON GF20 D-GREEN HOUSING, KEYING OPTION D GREEN SPS/NYLON GF20 C-DARK GRAY HOUSING, KEYING OPTION C DARK GRAY SPS/NYLON GF20 D-STONE GRAY HOUSING, KEYING OPTION D STONE GRAY SPS/NYLON GF20 A-YELLOW HOUSING, KEYING OPTION A YELLOW SPS/NYLON GF20 A-BLACK-CLIP HOUSING, KEYING OPTION A WITH CLIPSLOT BLACK SPS/NYLON GF20 B-LIGHT GRAY-CLIP HOUSING, KEYING OPTION B WITH CLIPSLOT LIGHT GRAY SPS/NYLON GF20 C-DARK GRAY-CLIP HOUSING, KEYING OPTION C WITH CLIPSLOT DARK GRAY SPS/NYLON GF20 D-STONE GRAY-CLIP HOUSING, KEYING OPTION D WITH CLIPSLOT STONE GRAY SPS/NYLON GF20 GCO GROMMET CAP (OPEN) BLACK SPS/NYLON GF20 GCP GROMMET CAP (PLUGGED) BLACK SPS/NYLON GF20 PLR PLR NATURAL SPS/NYLON GF20 CPA CPA RED PBT GF30 M MAT SEAL LIGHT BLUE INHERENTLY LUBRICATED SILICONE R RING SEAL GREEN INHERENTLY LUBRICATED SILICONE FOR ADDITIONAL INFORMATION SEE SD-33472-0001 COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/16 334721601 A-BLACK GCO PLR M R MX150 ASSY RCP 2X8 LG B/16 334721602 B-LIGHT GRAY GCO PLR M R MX150 ASSY RCP 2X8 BR C/16 334721603 C-BROWN GCO PLR M R MX150 ASSY RCP 2X8 GR D/16 334721604 D-GREEN GCO PLR M R MX150 ASSY RCP 2X8 CPA BK A/16 334721606 A-BLACK GCO PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/16 334721607 B-LIGHT GRAY GCO PLR CPA M R MX150 ASSY RCP 2X8 CPA BR C/16 334721608 C-BROWN GCO PLR CPA M R MX150 ASSY RCP 2X8 CPA GR D/16 334721609 D-GREEN GCO PLR CPA M R MX150 ASSY RCP 2X8 BK A/15 334721611 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/15 334721612 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BR C/15 334721613 C-BROWN GCP PLR M R MX150 ASSY RCP 2X8 GR D/15 334721614 D-GREEN GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/15 334721616 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/15 334721617 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BR C/15 334721618 C-BROWN GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA GR D/15 334721619 D-GREEN GCP PLR CPA M R ER NO DATE 10/11/2022 OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8 - - - - - - - - - - - - - - - 8 - - - - - - - - - - - - - - - 8 - - - - - - - - - - - - - - - 8 - - - - - - - - - - - - - - - 8 - - - - - - - - - - - - - - - 8 - - - - - - - - - - - - - - - 8 - - - - - - - - - - - - - - - 8 - - - - - - - - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED SEE 334721767 N/A N/A N/A N/A NOT RECOMMENDED SEE 334721768 N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED SEE 334721769 N/A N/A N/A N/A NOT RECOMMENDED SEE 334721770 N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A REVISION CF Page 1 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/0 334721621 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/0 334721622 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BR C/0 334721623 C-BROWN GCP PLR M R MX150 ASSY RCP 2X8 GR D/0 334721624 D-GREEN GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/0 334721626 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/0 334721627 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BR C/0 334721628 C-BROWN GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA GR D/0 334721629 D-GREEN GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/14 334721631 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/14 334721632 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BR C/14 334721633 C-BROWN GCP PLR M R MX150 ASSY RCP 2X8 GR D/14 334721634 D-GREEN GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/14 334721636 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/14 334721637 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BR C/14 334721638 C-BROWN GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA GR D/14 334721639 D-GREEN GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/13 334721641 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/13 334721642 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BR C/13 334721643 C-BROWN GCP PLR M R MX150 ASSY RCP 2X8 GR D/13 334721644 D-GREEN GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/13 334721646 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/13 334721647 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BR C/13 334721648 C-BROWN GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA GR D/13 334721649 D-GREEN GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/15 334721651 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/15 334721652 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721653 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 - - - - - - - 8 9 - - - - - - - - - - - - - - 8 9 - - - - - - - - - - - - - - 8 9 - - - - - - - - - - - - - - 8 9 - - - - - - - - - - - - - - 8 9 - - - - - - - - - - - - - - 8 9 - - - - - - - - - - - - - - 8 9 - - - - - - - - - - - - - - 8 9 - - - - - - - 1 - - - - - - 8 9 - - - - - - - 1 - - - - - - 8 9 - - - - - - - 1 - - - - - - 8 9 - - - - - - - 1 - - - - - - 8 9 - - - - - - - 1 - - - - - - 8 9 - - - - - - - 1 - - - - - - 8 9 - - - - - - - 1 - - - - - - 8 9 - - - - - - - 1 - - - - - - 8 9 - - - - - - - - - - - - - - - - - - - - - 15 - - - - - - - - - - - - - - - 15 - 1 - - - - - - 8 9 - - - - - - 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 2 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 LG B/12 334721654 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BR C/12 334721655 C-BROWN GCP PLR M R MX150 ASSY RCP 2X8 GR D/12 334721656 D-GREEN GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/12 334721658 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/12 334721659 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BR C/12 334721660 C-BROWN GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA GR D/12 334721661 D-GREEN GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/7 334721663 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334721664 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721665 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721666 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721667 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721668 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/10 334721669 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/11 334721670 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/14 334721671 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/13 334721672 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/10 334721673 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/15 334721674 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/12 334721675 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/9 334721676 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 LG B/10 334721677 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334721678 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721679 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/14 334721680 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721681 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/15 334721682 B-LIGHT GRAY GCP PLR M R ER NO DATE 10/11/2022 CPA CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION 1 - - - - - - 8 9 - - - - - - 16 1 - - - - - - 8 9 - - - - - - 16 1 - - - - - - 8 9 - - - - - - 16 1 - - - - - - 8 9 - - - - - - 16 1 - - - - - - 8 9 - - - - - - 16 1 - - - - - - 8 9 - - - - - - 16 1 - - - - - - 8 9 - - - - - - 16 1 - - 4 - 6 7 8 9 - - 12 13 14 - - - - 3 4 5 - 7 - 9 10 11 12 13 14 15 16 - - - - - - 7 8 9 - - 12 13 14 - - - - 3 4 5 - - - - 10 11 12 13 14 15 16 - - 3 4 5 - - - 9 10 11 12 13 14 15 16 1 - - - 5 - - - - - - - - - - - - - - - - - - 8 - - - 12 13 14 15 16 - - - - - - - 8 - - - - 13 14 15 16 - - - - - - - - - 10 11 - - - - - - - - - - - - - - 10 11 12 - - - - - - - - - - - - - 10 11 - 13 14 15 16 - - - - - - - - - - - 12 - - - - - - - - - - - - - 10 11 - - - 15 16 - - - - - - - 8 9 10 11 12 - - 15 16 - - - 4 - 6 7 8 - - - 12 - 14 - - - - - - 5 - - - - - - - - - - - - - - - 5 - - - - - - - - - - 16 - - - - - - - - - - - - - - 15 16 - 2 - - 5 - 7 - - 10 - - - 14 - - - - - 4 - - - - - - - - - - - - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A NOT RECOMMENDED N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 3 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/15 334721683 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721684 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/15 334721685 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/13 334721686 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/15 334721687 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334721688 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/12 334721689 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/14 334721690 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721691 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721692 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/12 334721693 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/14 334721694 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721695 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721701 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/11 334721702 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/13 334721703 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721704 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/13 334721705 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721706 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721707 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721708 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721709 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721710 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721711 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/11 334721712 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/8 334721713 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/9 334721714 A-BLACK GCP PLR CPA M R ER NO DATE 10/11/2022 OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - - - - - - - - - - - - - 16 - - - 4 - - - - - - - 12 - - - - - - - - - - - - - - - - - - - 16 - - - 4 - - - - - - - 12 - 14 - - - - - - - - - - - - - - - 14 - - - 2 - - - - - - - - - - - - - - - 2 - 4 - - - - - - - 12 - 14 - - - 2 - - - - - - - - - - - 14 - - - 2 - 4 - - - - - - - 12 - - - - - - - 4 - - - 8 - - - 12 - - - - - - - 4 - - - 8 - - - 12 - 14 - - - - - - - - - 8 - - - - - 14 - - - 2 - - - - - 8 - - - - - - - - - 2 - 4 - - - 8 - - - 12 - - - - - 2 - 4 - - - 8 - - - 12 - 14 - - - 2 - - - - - 8 - - - - - 14 - - - 2 - 4 - - - - - - - - - - - - - 2 - 4 - - - - - - - - - 14 - - - 2 - - - 6 - - - 10 - - 13 14 15 16 - 2 - - - 6 - - - 10 11 - 13 14 15 16 - 2 - - - 6 - - - 10 - - 13 14 - - - - - 4 - - - 8 - - - - - - - - - 2 - - - 6 - - - - 11 - - - - - - 2 - - - 6 - - - - - - - - - - - - - - 5 6 7 8 - - - - 13 - - - - - - - 5 6 7 8 - - 11 12 13 14 - - - - - - 5 6 7 8 - - - 12 13 14 - - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 4 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 CPA LG B/6 334721715 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/10 334721716 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/11 334721717 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/10 334721718 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/11 334721719 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/10 334721720 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/11 334721721 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/6 334721722 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/10 334721723 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/11 334721724 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/13 334721725 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/12 334721726 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/12 334721728 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/7 334721729 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/6 334721730 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/12 334721731 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/8 334721732 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/14 334721733 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/13 334721734 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/7 334721735 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/8 334721736 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA LG B/4 334721737 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/15 334721738 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/11 334721739 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/14 334721740 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/9 334721741 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/10 334721742 A-BLACK GCP PLR CPA M R ER NO DATE 10/11/2022 OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION 1 2 3 4 5 6 - 8 - 10 - 12 13 - - - 1 - 3 4 5 - - 8 - 10 - - - - - - 1 - - 4 5 - - 8 - 10 - - - - - - - - - - 5 6 7 8 - - 11 - 13 - - - - - - 4 5 6 - - - - - - - - 15 16 - - 3 4 5 6 - - - - - - - - 15 16 - - - - - - - 8 - - - - 13 14 15 16 1 2 3 4 5 6 - 8 - - - - 13 - 15 16 - - - - - - 7 8 - - 11 12 13 14 - - - - - - - - 7 8 - - - 12 13 14 - - - - - - - - 7 8 - - - - 13 - - - - - - - - - 7 8 - - 11 - 13 - - - - - - 4 5 - - 8 - - - 12 - - - - 1 2 - 4 5 6 - 8 - 10 - 12 13 - - - - 2 - 4 5 6 - 8 - 10 11 12 13 - - 16 - - - 4 5 - - - - - - 12 13 - - - - 2 - 4 5 6 - 8 - 10 - 12 13 - - - - - - - - 6 - - - - 11 - - - - - - - 3 - - 6 - - - - 11 - - - - - - 2 3 4 5 6 - 8 - 10 - 12 13 - - - - 2 - 4 5 6 - - - 10 - 12 13 14 - - 1 2 3 4 5 6 - 8 - 10 11 12 13 - - 16 - - - - - - - - - 10 - - - - - - - - - 4 5 - - - - 10 - 12 13 - - - - - - - 5 - - - - - - - 13 - - - - - - - - - 7 8 - - 11 12 13 14 15 - - - - - - - 7 8 - - - 12 13 14 15 - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 5 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 CPA BK A/14 334721743 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/15 334721744 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/12 334721745 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334721746 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721747 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721748 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721749 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721750 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721751 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721752 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721753 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721754 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721755 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721756 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721757 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721758 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721759 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721760 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721761 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721762 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721763 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721764 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721765 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334721766 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 DG C/16 334721767 C-DARK GRAY GCO PLR M R MX150 ASSY RCP 2X8 SG D/16 334721768 D-STONE GRAY GCO PLR M R MX150 ASSY RCP 2X8 CPA DG C/16 334721769 C-DARK GRAY GCO PLR M R ER NO DATE 10/11/2022 CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - - - - 7 8 - - - - - - - - - - - - - - - - - - 11 - - - - - - - - - - - - - - 10 11 - - - 15 16 1 2 3 4 5 6 - - - - 11 12 13 14 15 16 1 2 3 4 5 6 - 8 9 - - - - 14 15 16 1 2 3 4 5 6 - - - - - 12 13 14 15 16 - - - - - - 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 - - - - - - - 14 15 16 - - - - - - - 8 9 10 11 12 13 14 15 16 - - - - - - - - - 10 11 12 13 14 15 16 - - - - - - - - - - 11 12 13 14 15 16 1 2 3 4 5 6 - - - - - - - - - - - - - - - - - 8 9 - - - - 14 15 16 - - - - - - - - - - - 12 13 14 15 16 - - - - - - 7 8 9 10 - - - - - - - - - - - - - - - - - - - 14 15 16 - 2 - - - 6 7 8 - - - - - - - - - 2 - 4 - 6 7 8 - - - 12 - - - - - 2 - - 5 6 7 8 9 10 - 12 - 14 15 16 - 2 - - 5 6 7 8 - 10 - 12 - 14 15 - - 2 - - - - - - 9 10 - - - - 15 16 - 2 - - - - - - - 10 - - - - 15 - 1 2 3 4 5 6 7 8 9 10 - - - - - - 1 2 3 4 5 6 - - - 10 11 12 13 14 15 16 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 6 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL CPA M R MX150 ASSY RCP 2X8 CPA SG D/16 334721770 D-STONE GRAY GCO PLR MX150 ASSY RCP 2X8 LG B/2 334721771 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/3 334721772 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 CPA LG B/10 334721773 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/9 334721774 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/8 334721775 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/10 334721776 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/11 334721777 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/10 334721778 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721779 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/13 334721780 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721781 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/11 334721782 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334721783 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721784 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721785 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334721786 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721787 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721788 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721789 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721790 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721791 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721792 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721793 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721794 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/14 334721795 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721796 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA CPA CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - - - - - - - - - - - - - - 1 2 3 4 5 6 7 8 9 10 - 12 - 14 15 16 1 2 3 4 5 6 7 8 9 10 - 12 - 14 15 - - - - 4 5 - - - - 10 11 12 13 - - - - - - 4 5 - - 8 - 10 11 12 13 - - - - - - 4 5 - - 8 - 10 11 12 13 - - 16 - - - 4 5 - - 8 - 10 - 12 13 - - - - - - 4 5 - - - - - 11 12 13 - - - - - 3 4 - - - - 9 10 - - - - 15 16 - 2 - 4 - 6 7 - 9 - 11 - 13 - 15 16 - - - - - - - - - - - - - 14 15 16 - - - 4 5 - 7 - - - - - - - - - - - - - - - - - - - - 12 13 14 15 16 1 2 3 4 - - 7 8 9 10 11 12 - - 15 16 1 2 3 4 - - - 8 9 10 11 12 - - - 16 - 2 3 4 - - - - 9 10 - - - - 15 16 - 2 3 4 5 6 7 8 9 10 - 12 - 14 15 16 - - - - 5 - - 8 - 10 11 - 13 - 15 - - - 3 - 5 - - 8 - 10 11 - 13 - 15 - - - - - 5 - - 8 - 10 11 - - 14 - - - - 3 4 5 - - 8 - 10 11 12 13 14 15 - - - 3 4 - - - - 9 10 - - - - 15 16 1 - 3 - 5 - 7 8 - 10 11 - - 14 15 - - - - - - - - - - - - - 13 14 15 16 - 2 - 4 - 6 7 8 - - - 12 - - - - - - - - - - - - - - - 12 - 14 - - 1 - - - 5 - 7 8 - 10 11 - - 14 15 - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 7 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/12 334721797 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721798 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA LG B/11 334721799 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721800 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA LG B/11 334721801 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/9 334721802 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/8 334721803 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/8 334721804 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/14 334721805 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/8 334721806 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/4 334721807 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/10 334721808 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/14 334721809 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/4 334721810 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721811 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721812 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/12 334721813 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/11 334721814 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/9 334721815 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/7 334721816 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/2 334721817 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721818 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/3 334721819 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/9 334721820 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/11 334721821 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/10 334721822 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/9 334721823 B-LIGHT GRAY GCP PLR CPA M R ER NO DATE 10/11/2022 CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - - 5 - - 8 - 10 11 - - - - - 1 - 3 - 5 - 7 - - - 11 - - - 15 - - 2 - 4 - - - 8 - - - 12 - 14 - - 1 - 3 - 5 - - - - - - - - - - - - - - 4 5 - - 8 - - - 12 13 - - - - 2 - 4 5 6 - 8 - - - 12 13 - - - - 2 - 4 5 6 - 8 - 10 - 12 13 - - - - 2 3 4 5 6 - 8 - - - 12 13 - - - - - - - - - - - - - - - - 14 15 - 1 - 3 4 - - - - - - - 12 13 14 15 16 1 2 3 4 5 - - 8 - - 11 12 13 14 15 16 - 2 3 4 5 - - 8 - - 11 - - - - - - - 3 4 - - - - - - - - - - - - 1 2 3 4 5 6 7 8 - - - - 13 14 15 16 1 2 3 - - - - - - - - - 13 14 15 - 1 2 - - - - - - - - - - 13 14 15 - - - - - - 6 7 8 - - 11 - - - - - - - - - - 6 7 8 - - 11 - - 14 - - - - - - - 6 - - 9 - 11 12 13 - 15 16 - - - - - 6 - - 9 10 11 12 13 14 15 16 1 2 3 4 5 6 - - 9 10 11 12 13 14 15 16 - - - - - - - - 9 10 11 12 13 14 15 16 - - - 4 5 6 7 8 9 10 11 12 13 14 15 16 - - - - - - - 8 9 - - 12 13 14 15 16 - - - 4 5 - 7 - - - - 12 13 - - - - - - 4 5 - 7 - - 10 - 12 13 - - - - - - 4 5 - 7 8 - 10 - 12 13 - - - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 8 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 CPA LG B/8 334721824 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/6 334721825 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/5 334721826 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/2 334721827 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721828 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721829 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721830 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721831 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721832 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721833 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721834 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334721835 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/8 334721836 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721837 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721838 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721839 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721840 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721841 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721842 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721843 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721844 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/5 334721845 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721846 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721847 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/2 334721848 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721849 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721850 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - 4 5 - 7 8 9 10 - 12 13 - - - - 2 - 4 5 6 7 8 9 10 - 12 13 - - - 1 2 3 4 5 6 - - 9 - - - 13 14 15 16 1 2 3 4 5 6 - - 9 10 11 12 13 14 15 16 - - - - - 6 - - - 10 11 12 13 14 - - 1 2 3 4 5 6 - - - 10 11 12 13 14 - - 1 2 3 4 5 6 - - - - - - 13 14 - - - - - - - 6 - - 9 10 11 12 13 14 15 16 - 2 - - - - - 8 - - - - - - - 16 1 2 3 4 5 6 - 8 - 10 - - - - - 16 1 2 3 4 5 6 7 8 9 10 - - - - - 16 1 2 3 4 5 6 7 - 9 - 11 - 13 - 15 16 - - 3 4 5 6 - - - 10 11 12 13 - - - - - - - - - - - - - 11 12 13 14 - - - - - - - - - - - - 11 - - 14 - - 1 - 3 - - - - - - - 11 12 13 - 15 16 1 - 3 - - - - 8 9 - 11 12 13 14 15 16 1 2 - - 5 6 7 8 - - - - - - - - - - 3 4 - - - - - - 11 12 - - - - - - - - - - - - 9 - - - 13 14 15 16 - - 3 4 - - - - 9 10 11 12 13 14 15 16 - - 3 4 5 6 - 8 9 10 11 12 13 14 - - - - - - - - - - 9 10 - - - - 15 16 - - - - - - - - - 10 - - - - 15 - 1 2 3 4 5 6 7 8 9 10 11 - - 14 15 16 - 2 - - - - - 8 - - - - - 14 15 16 1 - 3 - - - - - 9 - 11 12 13 - 15 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 9 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/5 334721851 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334721852 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721853 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721854 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721855 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721856 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721857 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721858 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721859 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721860 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721861 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721862 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721863 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721864 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721865 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/15 334721866 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721867 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/2 334721868 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721869 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721870 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334721871 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721872 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721873 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721874 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721875 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721876 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721877 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION 1 2 3 4 5 6 - 8 - 10 - - - 14 15 16 1 2 - - 5 - 7 8 9 10 11 12 13 14 15 16 - 2 - - 5 - 7 - 9 10 11 12 13 14 15 16 - 2 - - 5 - 7 - 9 - - - - - - 16 - - - - 5 - 7 - - - - - - - - 16 - 2 - - - - 7 - 9 - - - - - - 16 - - - - - - 7 - - - - - - - - 16 - 2 - - 5 - 7 - 9 - 11 12 13 14 15 16 - 2 - - 5 - - - 9 - - 12 13 14 15 - - 2 - - 5 - - - 9 - - - - - - - - 2 - - - - - - 9 - - - - - - - - 2 - - - - 7 - - - - - - - - 16 1 - 3 - - - - 8 - - 11 12 13 14 15 16 - - - - - - - - 9 - 11 12 13 14 15 16 1 - - 4 - 6 7 8 - 10 - - 13 14 15 - - - - - 5 - - - - - - - - - - - - 2 - - 5 - 7 - 9 - - 12 13 14 15 16 1 2 3 4 - 6 7 - 9 10 11 12 13 14 15 16 - - - 4 5 6 7 8 - - - 12 13 14 15 16 1 2 3 4 - - - - 9 10 11 - 13 - - - 1 2 - - 5 6 7 8 9 10 11 12 13 14 - 16 1 2 - - 5 6 7 8 9 10 - - - - - 16 - - - - 5 6 7 - 9 - 11 12 13 14 - 16 - - - - 5 6 7 - 9 - - - - - - 16 1 2 - - - - - 8 - 10 11 12 13 14 - 16 - - - - - - - - - - 11 12 13 14 - 16 1 2 - - - - - 8 - 10 - - - - - 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 10 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/9 334721878 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334721879 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721880 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721881 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721882 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334721883 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721884 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721885 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA YW A/16 334721886 A-YELLOW GCO PLR M R MX150 ASSY RCP 2X8 BK A/9 334721887 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/12 334721888 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721889 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/14 334721890 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/8 334721891 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/7 334721894 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721895 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721896 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721897 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721898 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721899 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721900 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721901 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334721902 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721903 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721904 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721905 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721906 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - 3 - 5 - 7 - - 10 11 - 13 - 15 - 1 2 3 4 5 - - 8 9 10 11 12 13 14 - 16 - - - - - - - - - - - 12 13 14 - - - 2 - - - - - - 9 - - 12 13 14 - - 1 - - 4 5 6 - 8 - - - 12 13 14 - 16 1 2 - 4 5 6 - 8 9 10 - 12 13 14 15 16 - - - 4 5 - - 8 - 10 11 12 13 14 15 - - - - - - - 7 8 9 10 11 12 13 14 - - - - - - - - - - - - - - - - - - 1 - - 4 5 - - - - - 11 - 13 14 15 - - - - - - 6 - - 9 - - - - - 15 16 - - - - - - - - - - - - 13 14 - - - - - - 5 - - 8 - - - - - - - - - - - - 5 6 7 8 9 10 11 12 - - - - - - - - 5 6 7 8 - - - 12 13 14 15 16 1 2 3 - - - - - 9 10 11 - 13 - - - 1 2 - - 5 - - - - - - - - - - - - - - - 5 - - - - - - - 13 14 - - 1 2 - - 5 - - - - - - - 13 14 - - - - - - 5 - 7 8 9 10 11 12 13 14 - - 1 2 - - 5 - 7 8 9 10 11 12 13 14 - - - - - - - - - 8 - 10 11 - - - - - - - 3 - - - - - - - - - - - - - - - 3 - - - 7 8 9 10 11 12 13 14 - - - 2 - - - - - 8 - 10 11 - - 14 - - 1 - - - 5 - - 8 - 10 11 - 13 - 15 - - - - - - - - - - 10 - - 13 14 15 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 11 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL M R MX150 ASSY RCP 2X8 BK A/8 334721907 A-BLACK GCP PLR MX150 ASSY RCP 2X8 CPA BK A/12 334721908 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/10 334721909 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/12 334721910 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/5 334721911 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721912 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721913 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721914 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/0 334721915 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721916 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334721917 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334721918 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/10 334721919 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/4 334721920 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/13 334721921 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334721922 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721923 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721924 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721925 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721926 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721927 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721928 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721929 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721930 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721931 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721932 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721933 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION 1 - - 4 5 6 - 8 - - - 12 13 14 - - - - - - - - - - - - 11 12 13 14 - - 1 - 3 - 5 6 - - - - - 12 13 - - - - - - - - - 7 8 9 - - - - - - 16 - - 3 - - - 7 8 9 10 11 12 13 14 15 16 - - 3 - - - - - - - - - - - 15 16 - - - - - - 7 8 9 10 11 12 13 14 - 16 - - - - - - - - - - - - 13 14 - 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 - - - 5 - - - - - 11 - 13 - 15 - - - - - - - - - - 10 - - - - - - - - - - - - - - - - - - - 14 - - 1 2 - - 5 - - 8 - - - - - 14 15 - 1 2 - - 5 6 7 8 9 10 11 12 - 14 15 - - - 3 - - - - - - - - - 13 14 - - 1 2 3 4 5 6 7 8 9 - - 12 13 - 15 16 1 2 - 4 5 - 7 8 9 - - - - - 15 16 - - - - - - - 8 - - - - - - - 16 - - 3 - - 6 - - - - - - - - - - - - 3 - - 6 - - - - - - 13 14 - - - - 3 4 5 6 7 - 9 - - - - - 15 16 - - - - - 6 7 8 - - - - - 14 15 16 - - - - - 6 7 8 - - - 12 13 14 15 16 1 2 3 4 5 - - - 9 10 11 12 13 - - - 1 - - - - - - - - - - - - 14 - - 1 2 - 4 5 6 - - - 10 - - - 14 - - - - - - - - - 8 - 10 11 - 13 - 15 - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 12 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/10 334721934 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721935 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/9 334721936 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/9 334721937 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/11 334721938 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/9 334721939 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/14 334721940 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/8 334721941 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/14 334721942 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721943 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721944 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721945 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721946 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721947 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721948 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/8 334721949 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721950 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/11 334721951 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334721952 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/7 334721953 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/7 334721954 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/12 334721955 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 LG B/15 334721956 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334721957 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721958 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721959 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721960 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - 2 - - 5 - - 8 - 10 11 - - 14 - - - 2 - - 5 - - 8 - 10 11 - 13 14 15 - - 2 - 4 - 6 - - - 10 - 12 - 14 15 - - 2 - 4 - 6 - - - 10 - 12 - 14 15 - - - - - 5 6 7 - - 10 - - 13 - - - 1 2 3 - 5 6 - - - - - 12 13 - - - - - - - - - 7 - - 10 - - - - - - - - - 4 5 6 7 - - 10 - - - 14 15 16 - - - - - - - - - - - 12 13 - - - - - - - - - - 8 - - 11 12 13 - - 16 - - - - - - - 8 - - - - 13 - - 16 - - - 4 5 - - 8 - 10 11 - 13 14 - - 1 - - - - - - - - - - 12 - 14 - - - - - - 5 - - 8 - 10 11 - 13 - - - - - - 4 - - - 8 - - - - 13 14 15 16 - - - - - 6 7 8 - - 11 12 13 14 15 - - - - - 5 6 7 8 - - - - - - - - - - - - - - - - - - 11 12 - 14 15 16 - - - - 5 6 7 8 - - 11 12 13 14 15 - - - - - - 6 7 8 - 10 11 12 13 14 15 - - - - - 5 6 7 8 - - 11 12 13 14 15 - - - - - 5 6 7 8 - - - - - - - - - - 3 - - - - - - - - - - - - - 1 2 3 4 5 6 7 8 - - - 12 13 14 15 16 - - - - - - 7 8 - - - - - 14 15 16 - - - - - - - - - 10 11 12 13 14 - - - - - 4 - 6 - 8 - - - - 13 14 15 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 13 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/6 334721961 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/15 334721962 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721963 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334721964 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/11 334721965 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/11 334721966 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/13 334721967 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/8 334721968 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/11 334721969 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721970 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721971 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721972 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334721973 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334721974 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721975 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721976 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334721977 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334721978 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721979 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721980 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721981 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334721982 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721983 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721984 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721985 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721986 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334721987 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - 3 - - 6 7 8 9 10 11 12 13 14 - - - - - - - - - - - - - - 13 - - - - - - - 5 - 7 8 - - 11 - 13 - 15 - - - - - - - - - - - - - 13 - - - - - - - 5 6 - - - - - 12 13 - 15 - - - - - - 6 7 8 - 10 11 - - - - - - - - - - 6 7 8 - - - - - - - - 1 2 - - - - - 8 9 - 11 - 13 - 15 16 - - - - - - - - - - 11 12 13 14 15 - - - - 4 5 - - 8 - - - - 13 14 15 16 1 2 3 4 5 6 7 8 - - - - - - - - - 2 - - - - - 8 - 10 11 - - - 15 16 1 2 3 4 5 6 7 8 9 - - 12 13 14 - - - 2 - - - - - 8 9 - - 12 13 14 - - - - - - - - - - 9 - - 12 13 14 - - - 2 - - - - - 8 9 10 11 12 13 14 15 16 - - - - - - - - 9 - - - - - - - - - - - - - - - - - - - - - 15 - - - - - - - - - - - 11 12 - - 15 - 1 - - 4 - 6 7 8 - 10 11 12 13 14 15 - - - 3 4 5 - - - - 10 - - - - - - - - - - - - - - - 10 11 - - - 15 - 1 - - - - - - 8 - 10 11 - - - 15 - 1 2 3 4 5 6 7 8 - 10 11 - - - 15 - 1 - - - - - - 8 9 10 11 - - - 15 16 - - - - - - - - 9 10 11 - - - 15 16 1 2 3 - 5 6 7 - 9 - 11 - 13 14 15 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 14 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/6 334721988 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334721989 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721990 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334721991 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334721992 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334721993 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721994 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334721995 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334721996 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334721997 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334721998 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334721999 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CS BK A/16 334723001 A-BLACK-CLIP GCO PLR M R MX150 ASSY RCP 2X8 CS LG B/16 334723002 B-LIGHT GRAY-CLIP GCO PLR M R MX150 ASSY RCP 2X8 CS DG C/16 334723003 C-DARK GRAY-CLIP GCO PLR M R MX150 ASSY RCP 2X8 CS SG D/16 334723004 D-STONE GRAY-CLIP GCO PLR M R MX150 ASSY RCP 2X8 CS CPA BK A/16 334723005 A-BLACK-CLIP GCO PLR CPA M R MX150 ASSY RCP 2X8 CS CPA LG B/16 334723006 B-LIGHT GRAY-CLIP GCO PLR CPA M R MX150 ASSY RCP 2X8 CS CPA DG C/16 334723007 C-DARK GRAY-CLIP GCO PLR CPA M R MX150 ASSY RCP 2X8 CS CPA SG D/16 334723008 D-STONE GRAY-CLIP GCO PLR CPA M R MX150 ASSY RCP 2X8 CS BK A/13 334723009 A-BLACK-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS BK A/9 334723010 A-BLACK-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS CPA BK A/11 334723011 A-BLACK-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS BK A/10 334723012 A-BLACK-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS CPA BK A/12 334723013 A-BLACK-CLIP GCP PLR CPA M R MX150 ASSY RCP 2X8 CS CPA DG C/15 334723014 C-DARK GRAY-CLIP GCP PLR CPA M R MX150 ASSY RCP 2X8 CS SG D/15 334723015 D-STONE GRAY-CLIP GCP PLR M R ER NO DATE 10/11/2022 CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - 2 - - - 6 7 - 9 10 11 - 13 14 15 16 - - - - - - - - - - - - 13 - - 16 - - - - - - - - - - 11 12 13 - - 16 1 - - - - - - - - - - - - - - - - - - - - 6 - - - - 11 12 13 14 - - - - 3 4 5 6 7 - 9 - - - - - - 16 - 2 - 4 5 6 - - 9 10 - 12 13 14 - 16 - 2 - 4 5 6 7 - 9 10 - 12 13 14 - 16 1 2 - - - 6 7 8 9 10 - - - 14 15 16 1 2 - - - - 7 8 9 10 - - - - 15 16 - - 3 4 5 6 7 8 - - 11 12 13 14 15 16 - - - - - - 7 8 - - - - - - 15 16 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14 15 16 - - 3 4 - - 7 8 9 - - - - - 15 16 - - 3 4 - - - - - - - - - 14 15 16 1 - - - 5 - - 8 9 10 - - - - - 16 - - 3 - - - - - - - - - - 14 15 16 1 - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - - - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 REVISION CF Page 15 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL M R M R M R M R MX150 ASSY RCP 2X8 CS DG C/15 334723016 C-DARK GRAY-CLIP GCP PLR MX150 ASSY RCP 2X8 CS CPA LG B/15 334723017 B-LIGHT GRAY-CLIP GCP PLR MX150 ASSY RCP 2X8 CS LG B/15 334723018 B-LIGHT GRAY-CLIP GCP PLR MX150 ASSY RCP 2X8 CS CPA SG D/15 334723019 D-STONE GRAY-CLIP GCP PLR MX150 ASSY RCP 2X8 CS BK A/15 334723020 A-BLACK-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS LG B/6 334723021 B-LIGHT GRAY-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS BK A/7 334723022 A-BLACK-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS BK A/13 334723023 A-BLACK-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS LG B/7 334723024 B-LIGHT GRAY-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS BK A/13 334723025 A-BLACK-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS LG B/4 334723026 B-LIGHT GRAY-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS LG B/2 334723027 B-LIGHT GRAY-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS LG B/10 334723028 B-LIGHT GRAY-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS LG B/14 334723029 B-LIGHT GRAY-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS LG B/0 334723030 B-LIGHT GRAY-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CS CPA BK A/11 334723031 A-BLACK-CLIP GCP PLR CPA M R MX150 ASSY RCP 2X8 CS CPA BK A/13 334723032 A-BLACK-CLIP GCP PLR CPA M R MX150 ASSY RCP 2X8 CS BK A/15 334723033 A-BLACK-CLIP GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/3 334728001 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/11 334728002 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/8 334728003 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/10 334728004 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728005 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728006 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728007 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/8 334728008 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/11 334728009 A-BLACK GCP PLR CPA M R ER NO DATE 10/11/2022 CPA CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION 1 - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16 1 2 - 4 5 6 7 - - - 11 - - 14 15 16 - - 3 - - 6 7 8 - 10 11 - - 14 15 16 - - - - - - - 8 - 10 - 12 - - - - - 2 - 4 5 6 7 - - - 11 - - 14 15 16 - - - - - 6 - - - 10 - - - - 15 - 1 2 - 4 5 6 7 - 9 10 11 - - 14 15 16 1 2 3 4 5 6 7 8 9 10 11 - - 14 15 16 - 2 - 4 5 6 - - - - - 12 13 - - - - - - - - - - - - - - 12 13 - - - 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 - - 3 - - - - - - - - - 13 14 15 16 - - - - - - - - - - - - - 14 15 16 - - - - 5 - - - - - - - - - - - 1 2 3 4 5 6 - - - 10 11 12 13 14 15 16 - - - - - - - - - 10 - - 13 14 15 16 1 2 3 4 5 6 - - - - 11 12 - - - - - 2 - - 5 - 7 - 9 - 11 - - - - 16 1 2 3 4 5 6 7 8 - - 11 - - - - 16 1 - - 4 5 6 7 8 - - 11 - - - - - 1 - - 4 5 6 7 - - - - - - - - - 1 2 3 4 5 6 - - - - - 12 13 - - - - - - - - - 7 8 - - - - - 14 15 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE 34951-1611 34951-1621 34951-1631 34951-1641 SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 16 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 CPA BK A/3 334728010 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/13 334728011 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/12 334728012 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/8 334728013 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/10 334728014 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/13 334728015 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728016 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334728017 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728018 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728019 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728020 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/15 334728021 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/9 334728022 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/11 334728023 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/13 334728024 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/6 334728025 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/10 334728026 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/12 334728027 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/4 334728028 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/8 334728029 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728030 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728031 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/2 334728032 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/8 334728033 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334728034 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728035 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334728036 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION 1 2 3 4 5 6 7 8 - - - 12 13 14 15 16 - - - 4 - - - - 9 - - 12 - - - - - - - 4 - - - - 9 10 - 12 - - - - 1 2 - 4 - 6 7 8 9 - - 12 - - - - - - 3 4 - - - - 9 10 - - 13 14 - - 1 - - - - - - 8 - - 11 - - - - - - - - - - - - - - 10 11 12 13 - - 16 1 2 - 4 5 6 7 8 - 10 - - - 14 15 16 1 - - - 5 6 - - - 10 - - 13 14 - - - - - 4 5 - 7 8 - - 11 12 13 14 15 - - - - - - - 7 8 9 - - - - 14 15 16 - - - - - - - - - - - - - - - 16 - - - - - - - - - 10 11 12 13 14 15 16 - - - - - - - - - 10 11 12 13 - - 16 - - - - - - - - - - - - - 14 15 16 - - - - - - 7 8 9 10 11 12 13 14 15 16 - - - - - - - - - - 11 12 13 14 15 16 - - - - - - - - - - - - 13 14 15 16 1 2 3 4 5 6 - - - - 11 12 13 14 15 16 1 2 - 4 - 6 7 8 - - 11 12 - - - - - 2 - 4 - 6 7 8 - - - 12 - - - 16 - - 3 - - - - 8 - - 11 12 13 14 15 16 1 2 3 4 5 6 7 8 - 10 11 12 13 14 15 - - - - - - - 7 8 9 10 - - 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 - - - 15 16 - - 3 - 5 - - 8 - 10 11 - - 14 - - - - - - - - - - - 10 11 - 13 - - 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 17 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL CPA M R MX150 ASSY RCP 2X8 CPA BK A/14 334728037 A-BLACK GCP PLR MX150 ASSY RCP 2X8 BK A/7 334728038 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334728039 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728040 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/11 334728041 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728042 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728043 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728044 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334728045 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728046 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728047 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728048 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334728049 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728050 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728051 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728052 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728053 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/8 334728054 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/14 334728055 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA LG B/11 334728056 B-LIGHT GRAY GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/14 334728057 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/6 334728058 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728059 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728060 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728061 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334728062 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334728063 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - - - - 7 - - - - - - - - 16 - 2 - - - - 7 - 9 10 11 12 13 14 - 16 1 2 - - - - 7 8 9 10 11 12 13 14 - 16 - 2 - - - - 7 8 - - - - 13 14 15 16 - - - - 5 - - - - - - - 13 14 15 16 - - - - 5 - - - 9 10 11 12 13 14 15 16 - - - - - - - - - 10 11 12 13 14 - 16 - - - - - 6 7 - 9 10 - - 13 14 15 - 1 2 3 4 5 6 7 - 9 - - 12 13 - 15 16 1 2 3 - - - 7 - 9 - - 12 13 - - 16 - 2 - - 5 - - - 9 - - 12 13 - - - - - - 4 - 6 7 - 9 - - - - - - 16 - - - 4 - - - - - - - - - - - 16 - - - 4 - - - - 9 - - - - - - 16 - - - - - - 7 - 9 10 - - 13 14 15 16 - - - - - - 7 - 9 10 - - 13 - 15 16 - - - - - - 7 - 9 10 11 - 13 14 15 16 - - - - - - 7 8 9 - 11 12 - 14 15 16 1 2 - - - - - - - - - - - - - - - - - - - - 7 8 - - - - - 14 15 16 - - - 4 - - - - 9 - - - - - - - 1 2 3 - - 6 7 8 - 10 11 - - 14 - 16 - 2 3 - - 6 7 - - 10 11 - - 14 - - - 2 - - - 6 7 - - 10 - - - 14 - - 1 2 - - - 6 7 - - 10 - - - 14 - 16 - - - - - 6 - 8 - - - - - - 15 16 - - - - - - - 8 9 - - - - - 15 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 18 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/8 334728064 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728065 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728066 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334728067 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728068 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728069 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728070 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334728071 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334728072 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334728073 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/15 334728074 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334728075 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728076 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728077 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728078 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728079 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/2 334728080 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728081 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728082 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728083 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728084 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334728085 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728086 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728087 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728088 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728089 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728090 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - 4 - - - 8 9 10 - - 13 14 15 16 - - - 4 - - - 8 9 10 - - - - 15 16 - - - 4 - 6 - 8 - - 11 - 13 - 15 16 - - - - - - - 8 - - 11 - 13 - - 16 - - - - 5 - - 8 - 10 11 - - 14 15 - - - 3 - - 6 - - 9 - 11 - - 14 - - - - 3 - - - - - - - - 12 13 - - - - - - - - - - - - - - - - - 15 16 - - - 4 - - - - - - - - - - - - - - 3 - - - - - 9 - - - - - - - - - - - - - - - - - 11 - - - - - - - - - - - - - 9 - - - - 14 - - - - - - - - 7 - - 10 11 - 13 14 15 16 - - 3 - - - - - - 10 11 12 13 14 15 16 - - - - - - - - 9 10 11 - 13 - 15 16 1 - - - - - - 8 9 10 11 - 13 - 15 16 1 2 3 4 5 6 7 8 9 10 11 - 13 - 15 16 1 - - - - 6 7 - 9 10 11 12 13 - 15 16 1 - - - - 6 7 - 9 10 11 12 13 - - 16 - - 3 - - 6 - - 9 10 11 12 13 14 15 16 - 2 - - 5 - - - - 10 11 12 13 14 15 16 - 2 3 - 5 6 - - 9 10 11 12 13 14 15 16 1 - - - - - - - 9 - 11 - 13 - 15 16 1 - - - - - - - 9 - 11 12 - 14 15 16 - - - - - - - 8 9 10 11 12 - 14 15 16 - - - - - - - - - 10 11 12 - 14 15 - - - - - - - - - 9 10 11 12 - 14 15 - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 19 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/15 334728091 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728092 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728093 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334728094 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728095 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334728096 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728097 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334728098 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728099 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/6 334728100 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728101 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/14 334728102 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728103 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/7 334728104 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/14 334728105 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/8 334728106 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/8 334728107 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728108 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334728109 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728110 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728111 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334728112 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/14 334728113 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728114 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/11 334728115 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/6 334728116 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/3 334728117 B-LIGHT GRAY GCP PLR M R ER NO DATE 10/11/2022 CPA CPA CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - - - - - - - - - 12 - - - - - - - - 5 6 - - - - - 12 - - - - - - - - 5 6 7 - - - - - - - - - 1 2 3 4 5 6 7 8 - 10 - - 13 - 15 - - - - - - 6 - - - 10 - - 13 14 15 16 - - - - 5 - - - 9 - - - - - 15 16 - - - - 5 - - - 9 - - 12 13 - 15 16 - - 3 - - - - - 9 - - 12 13 - - - - - 3 - 5 - - - 9 - - - - - - - 1 2 3 4 5 6 7 8 - - - - - 14 15 - 1 2 3 4 5 6 7 8 - - - - - 14 15 - - - - - - - - - - - 11 - - 14 - - 1 - - - 5 - - 8 9 10 - - - - - 16 - 2 - 4 5 - - 8 - - - 12 13 14 15 16 - - - - - - - 8 - - - - - - - 16 - - - 4 5 - - 8 - - - 12 13 14 15 16 - - 3 - - 6 - - - - 11 12 13 14 15 16 - - 3 - - 6 - - 9 - 11 12 13 14 15 16 - - 3 - - - - - - - - - - - - 16 1 - - - 5 6 7 - 9 10 11 12 13 - - 16 1 - - - 5 6 7 8 - 10 11 12 13 - - 16 - - 3 - - - - - - - - - - - 15 - - - 3 - - - - - - - - - - - 15 - 1 2 - 4 5 6 - 8 - 10 - - - 14 - - - - - - - 6 - - - - - - 13 14 15 16 1 2 3 4 - 6 7 - - - - - 13 14 15 16 - - - 4 5 6 7 8 9 10 11 12 13 14 15 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 20 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/12 334728118 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728119 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728120 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728121 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728122 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/11 334728123 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728124 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728125 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728126 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728127 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728128 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728129 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728130 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728131 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/3 334728132 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334728133 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728134 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728135 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/13 334728136 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/15 334728137 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/11 334728138 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/7 334728139 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728140 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/10 334728141 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/8 334728142 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/13 334728143 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334728144 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - - 5 - - - - 10 11 - - 14 - - - - 3 - 5 - - 8 - 10 11 - - 14 15 - - - 3 - 5 - - - - 10 11 - - 14 15 - - - 3 - - 6 7 - 9 - 11 12 13 14 15 16 - - 3 - - 6 7 - - - 11 12 13 14 15 16 - - - 4 - - 7 - - - - 12 13 - 15 - - - - 4 5 - - - 9 - 11 12 13 - 15 16 - - 3 - 5 6 - - 9 - 11 - - - 15 16 - - 3 4 - - - - 9 - 11 12 13 - - - - - 3 4 - - 7 - 9 - 11 12 13 - - - - - - 4 5 - 7 - 9 - 11 12 13 - 15 16 - - 3 - 5 6 7 - 9 - 11 - - - 15 16 - - - 4 - 6 7 8 - 10 11 12 - - - - 1 2 3 4 - - 7 8 9 - - 12 - - 15 16 1 2 3 4 - 6 7 8 9 10 11 12 - - 15 16 1 2 3 - - 6 7 8 - 10 11 12 - - 15 16 - - - 4 - - 7 8 9 - - 12 - - - - - - - - - 6 7 8 - 10 11 12 - - - - - - - - 5 6 - - - - - 12 - - - - - - - - - - - - - - - 12 - - - - 1 - - - - - - - 9 - 11 - - - 15 16 - - - - - 6 7 8 - - 11 12 13 14 15 16 - - - - - - 7 - - - - 12 13 14 15 16 - - - - - 6 - - - 10 - - 13 14 15 16 - 2 - - - 6 7 8 - 10 - - 13 - 15 16 1 - - - - - - - - - - - - - 15 16 - - - - - - - - - - 11 - 13 - - - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 21 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/2 334728145 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728146 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728147 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728148 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728149 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334728150 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA DG C/15 334728151 C-DARK GRAY GCP PLR M R MX150 ASSY RCP 2X8 SG D/15 334728152 D-STONE GRAY GCP PLR M R MX150 ASSY RCP 2X8 DG C/15 334728153 C-DARK GRAY GCP PLR M R MX150 ASSY RCP 2X8 CPA SG D/15 334728154 D-STONE GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728155 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728156 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728157 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728158 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334728159 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728160 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/2 334728161 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334728162 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728163 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728164 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728165 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334728166 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/5 334728167 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728168 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728169 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728170 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728171 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION 1 2 3 4 5 - - 8 9 10 11 12 13 14 15 16 - 2 - - - - - - - 10 - - - 14 - - - 2 3 - - - - - - 10 11 - - 14 - - 1 2 3 - - - - 8 - 10 11 - - 14 - 16 - - - 4 5 - - 8 - - - 12 13 14 15 - - 2 - 4 5 6 7 - 9 10 11 12 - 14 - 16 1 - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - - - 1 - 3 - - 6 7 8 - - - - - - 15 16 - - 3 4 - 6 - 8 9 10 11 12 - - 15 16 - - 3 4 - - - - 9 10 11 12 - - 15 16 - - - 4 5 - 7 - - 10 - - 13 14 - 16 - - - - 5 - - - - - - - - 14 - - - - - 4 5 - - - - - - - - 14 - - 1 2 3 4 5 - 7 8 9 10 11 12 13 14 15 - - 2 - - - - 7 - - 10 - - - 14 - - 1 2 - - - - 7 8 - 10 - - - 14 - - - 2 3 - - - 7 - - 10 11 - - 14 - - 1 2 3 4 - - 7 8 - 10 11 12 - 14 - - - 2 3 4 5 - 7 - 9 10 11 12 13 14 15 - - 2 3 - 5 6 7 - 9 - 11 - 13 14 15 16 - - - 4 - 6 - 8 - - 11 - 13 - 15 - 1 2 3 - - - 7 8 - 10 11 - - 14 - - - 2 - - 5 6 7 - 9 10 - 12 13 - - 16 - 2 - 4 5 - - - 9 - 11 12 13 14 15 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 22 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/11 334728172 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728173 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728174 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728175 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/9 334728176 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 CPA BK A/10 334728177 A-BLACK GCP PLR CPA M R MX150 ASSY RCP 2X8 BK A/14 334728178 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728179 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728180 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728181 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728182 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728183 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/7 334728184 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/6 334728185 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728186 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/14 334728187 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/4 334728188 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/14 334728189 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/10 334728190 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 LG B/3 334728191 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 LG B/2 334728192 B-LIGHT GRAY GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728193 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 CPA BK A/8 334728194 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/8 334728195 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/13 334728196 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728197 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/11 334728198 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 CPA OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - - - 4 - 6 - - - - 11 12 13 - - - - - - - - - - - - 10 11 - - - - 16 - - - - - 6 7 - - 10 11 - - 14 - - - - - - - 6 7 - 9 10 11 - - 14 - - - - - 4 5 - - 8 - - - 12 13 14 15 - - 2 3 4 - - - - - 10 11 12 - - - - - - - - - - - - - 10 - - 13 - - - - - - - - - - 8 - - - - 13 14 - - - - - 4 - 6 - - 9 - 11 12 13 - - - - - - 4 - 6 - - 9 - 11 12 - - - - - - - 4 - 6 - - - - 11 12 13 14 - 16 - - - - 5 - 7 8 - - 11 12 13 14 - 16 1 2 3 4 5 6 7 8 - - - - - - - 16 1 2 3 4 5 6 7 8 - - - - - - 15 16 - - 3 4 - 6 - - 9 10 11 - - 14 - 16 - - - - - - - - 9 10 - - - - - - - - 3 4 5 6 - - 9 10 11 12 13 14 15 16 - - - - - - - - 9 10 - - - - - - - 2 - - - 6 - - - - - - 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 - - - 1 2 3 4 5 6 7 8 9 10 11 - - 14 15 16 1 2 3 4 5 6 7 8 - - - - - - - 16 - - - - - 6 7 - - 10 11 12 13 14 15 - - - - - - - 7 8 9 10 - - 13 14 15 16 - - - 4 - - 7 - - - - - - - - 16 1 2 3 4 5 6 - - - - - 12 - - - - - 2 - 4 5 - - - 9 - - - - - - 16 DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 23 of 24 MX150 RECEPTACLE 2X8 SEALED ASSEMBLY MAT SEAL BOM AND PIN OUT SHEET COMPONENT ASSEMBLY DESCRIPTION ASSEMBLY PART NUMBER BLOCKED TERMINALS THE PRESENCE OF AN ABBREVIATION INDICATES THE PRESENCE OF THAT COMPONENT HOUSING KEY/COLOR GROMMET CAP PLR CPA MAT SEAL RING SEAL MX150 ASSY RCP 2X8 BK A/7 334728199 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/9 334728200 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/6 334728201 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/7 334728202 A-BLACK GCP PLR M R MX150 ASSY RCP 2X8 BK A/12 334728203 A-BLACK GCP PLR M R ER NO DATE 10/11/2022 OPTIONAL ATTACHMENTS SOLD SEPARATELY CAVITY WITH A NUMBER INDICATES BLOCKED TERMINAL POSITION CAVITY WITHOUT A NUMBER INDICATES OPEN TERMINAL POSITION - 2 3 4 5 6 - - - - 11 - - 14 15 16 1 - - - - - - 8 - - 11 12 13 - 15 16 1 - - - - 6 - 8 9 10 11 12 13 - 15 16 1 - - - - - - 8 9 10 11 12 13 - 15 16 - - - - 5 6 7 - - - - - - - 15 - DOCUMENT NO. 334721602 STATUS COMMENT 0 0 BACKSHELL WITH RIBS BACKSHELL WITHOUT RIBS 90 ADAPTOR WITH RIBS 90 ADAPTOR WITHOUT RIBS SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A SALEABLE N/A N/A N/A N/A REVISION CF Page 24 of 24 60° B21 60° 3.52 IF HEADER IS RECESSED INTO A POCKET, THESE DIMENSIONS REPRESENT THE MINIMUM CLEARANCE REQUIRED FOR THE MATING CONNECTOR SHROUD. NO PARTING LINE AT THIS LOCATION 21.3 MIN. 21.3 MIN. 1.79 ±0.20 3.52 R2.0 5° B21 B11 15.0 MIN. 20.50 MIN. MIN ALL AROUND FOR MATING CONNECTOR SHROUD CLEARANCE 30° D D B3 0.70 ±0.15 ALL AROUND +0.10 19.85 -0.20 19.85 B4 DETAIL D SCALE 10:1 +0.10 -0.20 A MIN. R�6.47� Connector Description KEYING OPTION A SCALE 4:1 B22 DIMENSION A CONNECTOR WITHOUT CLIP-SLOT 11.0 CONNECTOR WITH CLIP-SLOT 15.0 PACKAGING FRAME 16X 9.30 25° +0.10 -0.25 2.30 B12 ⌖ 0.20 A B 12.90 60° +0.20 -0.80 AT TANGENT 3.00 B12 ⌖ 0.20 A B 2.90 3.52 9.87 SEE DETAIL D 10.50 B14 +0.15 -0.10 B9 STANDARD NOTICE C C 15.62 +0.10 -0.20 2X 17.00 MIN. 3.50 B8 C 19.85 +0.10 -0.20 B5 B6 KEYING OPTION B SCALE 4:1 B7 1.50 ALL AROUND B8 3.50 C2 10.60 PLANE 1 25° 'D' B1 REFER TO EWCAP DWG. NO. EWCAP-001 150-T001 1.50 TERMINAL BLADE CONFIGURATION A 18.00 3.52 B13 36.33 ⌓ 0.15 A B 17.00 C3 PLANE 2 60° C3 �0.805� ⌖ 0.20Ⓜ A B AT PLANE 2 ⌖ 0.30Ⓜ A B AT PLANE 1 C2 B5 A TERMINAL POSITION 1 This drawing, or portions of it are controlled by the Electrical Wiring Components Application Partnership (EWCAP) a subgroup of the United States Council for Automotive Research LLC (USCAR LLC). USCAR is an LLC consisting of members from FCA US LLC, Ford Motor Company and GM Corporation. Any change to a EWCAP controlled portion of this drawing, including a revision record change must be approved, in writing, by the responsible EWCAP representative from each USCAR member company. Each EWCAP representative authorized to sign for his or her member company is responsible for obtaining all necessary approvals within that company prior to signing for the approval of the change. EWCAP expressly prohibits any party from changing either any EWCAP controlled portion of this drawing or any associated tooling before receiving approval, signed by the authorized representatives, of the USCAR member companies. Reference to the signed change notice must be entered in the drawing control column. D 132 UPDATED CALL OUT FOR THE REVISION OF GD&T C5 FROM ASME Y14.5-1994 TO Y14.5-2009 IN THE NOTES 132 C4 132 C3 ADDED PLANE 2 132 C2 ADDED PLANE 1 132 C1 095 B22 CHANGED ISO VIEW SCALE TO 4:1, WAS 1:1 095 B21 ADDED PARTING LINE NOTE TO DETAIL A, REMOVED NOTE BACK ANGLE OPTIONAL FROM 5° 095 B20 CORRECTED CHRYSLER GROUP LLC NOMENCLATURE ADDED LEGAL NOTE AND EWCAP TO TITLE BLOCK 095 B19 MOVED NOTE TO SECTION B-B 095 B18 UPDATED NOTES 095 B17 ADDED 0.25° MAX DRAFT ANGLE ALL AROUND 095 B16 ADDED 5.50 095 B15 ADDED AT TANGENT NOTE 095 B14 REMOVED DATUM D 095 B13 ADDED BASIC DIMENSIONS FOR PROFILE CONTROL 095 B12 ADDED ⌖ 0.20 A B 095 B11 DIMENSION TO DATUM A 095 B10 095 B9 ADDED SECTION C-C 095 B8 REMOVED 15.20 AND 2.50 FROM SECTION A-A 095 B7 ADDED DRAFT ANGLE DIRECTION 095 B6 REMOVED 0.80 +0.10/-0.20 ALL AROUND 7. EXCEPT WHERE NOTED, DRAFT ON OUTSIDE SURFACES IS PERMISSIBLE WITHIN TOLERANCE. 095 B5 8. 095 B4 ADDED R(6.47) 095 B3 ADDED 0.70±0.15 ALL AROUND 095 B2 UPDATED CONNECTOR COLORS 095 B1 SURFACE 'D' RELOCATED TO 3.50 WAS AT 8.20 03-22-12 KC MV A 10-31-02 DG JC SEE DETAIL E 3.00 B B B13 17.83 2X R31.68 B13 +0.10 15.62 -0.20 33.83 B NOTES: UNLESS OTHERWISE SPECIFIED B18 4X R5.67 B13 6.00 TERMINAL POSITION 16 1. ALL DIMENSIONS SHOWN IN MILLIMETERS. TERMINAL POSITION 9 +0.10 19.85 -0.20 KEYING OPTION C SCALE 4:1 CENTER PLANES ESTABLISHED BY DATUM B C1 B13 R392.09 3. 0.25 RADII ON ALL CORNERS SHOWN SHARP. 14X 3.50 4. UNSPECIFIED RADII: 0.25 EXCEPT AS NOTED. A 5. STANDARD COLORS FOR POLARIZATION (SEE CHART). DEVIATION REQUIRES APPROVAL OF AUTHORIZED PERSON. �1.20� 15.33 25° 25° ⌖ 0.30Ⓜ A B 6. REFER TO "SAE/USCAR 12 CONNECTOR GUIDELINES" FOR ADDITIONAL REQUIREMENTS. REFER TO EWCAP DWG. NO. EWCAP-001 150-T001 1.50 TERMINAL BLADE CONFIGURATION 2X R30.42 4X R4.42 9.87 9.87 2X R390.84 ⌢ 0.10 A SECTION C-C B9 B10 SCALE 4:1 15.62 +0.10 15.62 -0.20 +0.10 -0.20 SYMBOL INDICATES DRAFT DIRECTION. 9. FOR TERMINAL MATERIAL, DIMENSIONAL, AND COATING REQUIREMENTS AND ANY BLADE TERMINAL DESIGN INFORMATION NOT SHOWN ON THIS DRAWING SEE EWCAP DRW. NO. EWCAP-001 B19 SURFACE MUST BE FREE OF SURFACE DEFECTS AND PARTING LINES FOR SEALING ALL AROUND B C5 2. DIMENSIONING AND TOLERANCING PER ASME Y14.5M-2009 12.25 �2.90� B15 AT TANGENT A CHARTED DIMENSION ADDED FOR WITH AND WITHOUT 08-03-20 GE CLIPSLOT 162 TERMINAL POSITION 8 SECTION A-A 9.87 B20 C4 10. A FULL SHROUD ON THE MATING CONNECTOR IS REQUIRED TO INSURE THAT THE CONNECTOR-HEADER POLARIZATION FEATURES (OPTIONS A THRU D) WILL FUNCTION. THE FULL SHROUD ALSO PREVENTS SCOOP DAMAGE TO THE HEADER PINS. REFER TO "SAE/USCAR-12 CONNECTOR DESIGN GUIDE LINES" FOR ADDITIONAL INFORMATION. KEYING OPTION D SCALE 4:1 B14 1.05 ±0.05 ⌖ 0.10 A B B2 150-S-016-2-D01 D BLACK 150-S-016-2-C01 C DK GRAY 150-S-016-2-B01 B LT GRAY 150-S-016-2-A01 A BLACK EWCAP P/N OPTION 0.25° B17 MAX DRAFT ADDED CALL OUT "CENTER PLANES ESTABLISHED BY DATUM B" MATING CONNECTOR COLOR KB B REPLACED WALL THICKNESS CONTROL WITH PROFILE OF A SURFACE RELEASED CHANGE SERIAL LET REVISION RECORD NUMBER DATE TOLERANCES (UNLESS OTHERWISE SPECIFIED) 11. REFER TO USCAR/EWCAP PART LIST AS FOUND ON WEBSITE http://www.uscarteams.org .X DWN CHK THIRD ANGLE PROJECTION MILLIMETERS A ±3° ANGLES ±0.2 .XX ±0.10 12. THIS IS A 100% CAD GENERATED PART. THE CAD MATHEMATICAL DATA IS THE MASTER FOR THIS PART. FOR DIMENSIONAL OR ANY INFORMATION NOT SHOWN ON THIS DRAWING, ANALYZE THE CAD MODEL. DRAWN BY 4 - 1 B7 DATE CHECKED BY G.ELLIOTT M.VANSLAMBROUCK 08-03-20 TITLE CONSTRUCTION BELOW THIS SURFACE IS NOT CONTROLLED BY EWCAP. NO PLASTIC FEATURES MAY EXTEND ABOVE THIS SURFACE. DIRECT CONNECT INTERFACE 16 WAY (2 X 8) 1.5MM SEALED MALE SECTION B-B 3 2 OF 1 REVISION LEVEL SIZE DRAWING NUMBER SHEET 1 4 04-28-17 MV SEALING SURFACE DIMENSIONS MOVED TO SECTION C-C SCALE DETAIL E SCALE 20:1 APPLIES 2X SEE KEYING OPTION VIEWS FOR POSITIONS C UPDATED THE STANDARD NOTICE TO THE LATEST TEMPLATE DIMENSIONS ARE IN 5.50 B16 MV 150-S-016-2-Z01 1 E DO NOT SCALE DRAWING COMPUTER AIDED DRAWING D 18 17 16 15 14 TABLE OF CONTENTS L SHEET NO. SHEET DESCRIPTION 1 NOTES AND BOM 2 CONFIGURATIONS 3-4 KEY CONFIGURATIONS 13 12 11 10 9 7 8 4 3 2 1 MATING INTERFACE/CONNECTOR DRAWINGS NOTES: VALID UNLESS OTHERWISE SPECIFIED DESCRIPTION DRAWING NO. DESCRIPTION INTERFACE DEFINITION MOLEX INLINE 2X2 PK-31300-635 STANDARD 2X2 *150-S-004-2-Z02 SD-33482-0001 -CONTAINS: PRODUCT INTRODUCTION, PRODUCT SUMMARY, 2X3 PK-31300-903 UL V0 2X2 *150-S-004-2-Z02 SD-33482-0001 CONNECTOR ASSEMBLY, PACKAGING INFORMATION, CONNECTOR 2X4 PK-31300-903 STANDARD 2X3 *150-S-006-2-Z02 SD-33482-0001 2X6 PK-31300-903 TRANSMISSION 2X3 *150-S-006-2-Z02 N/A 2X8 PK-31300-903 STANDARD 2X4 *150-S-008-2-Z02 SD-33482-0001 2X10 PK-31300-903 UL V0 2X4 *150-S-008-2-Z02 SD-33482-0001 STANDARD 2X6 *150-S-012-2-Z01 SD-33482-0001 UL V0 2X6 *150-S-012-2-Z01 SD-33482-0001 -STANDARD CONFIGURATION (STD): PS-33472-000 STANDARD 2X8 *150-S-016-2-Z01 SD-33482-0001 -TRANSMISSION CONFIGURATION (TRNS): STANDARD 2X10 SD-33472-0001 SD-33482-0001 UL V0 2X10 SD-33472-0001 SD-33482-0001 1. GENERAL: L a. APPLICATION SPECIFICATION SEE: AS-33472-100 MATING, SERVICE INSTRUCTIONS, ELECTRICAL CONTINUITY K 5 6 5 RECEPTACLE CONNECTOR ASSEMBLY 6 BACKSHELL NOTES 7 BACKSHELL 8 BACKSHELL CONFIGURATIONS 9 2X10 CONNECTOR INTERFACE DEFINITION CHECKING, CRIMPING, AND TROUBLESHOOTING. -DESIGNED TO MATE WITH DEVICE OR CONNECTOR AS SPECIFIED IN THE MATING INTERFACE/CONNECTOR DRAWINGS CHART. *DENOTES DRAWINGS THAT CAN BE ACCESSED AT . -ASSEMBLY SHIPPED WITH PLR IN PRE-LOCK POSITION (SEE PLR PRE-LOCK VIEW SHEET 5). K b. PRODUCT SPECIFICATION SEE: CONTAINS SILICONE: TS-160038-0001 J SILICONE FREE: TBD J -UL V0 CONFIGURATION (UL V0): TBD CONTAINS: PRODUCT INTRODUCTION, PRODUCT SUMMARY, RATINGS (CURRENT, TEMPERATURE, SEALING, AND FLAMMABILITY), TERMINALS, WIRE DIAMETER RANGE, PRODUCT VALIDATION, AND PRODUCT DEVIATIONS. c. PACKAGING SPECIFICATION PER MOLEX DRAWING: SEE PACKAGING CHART d. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR PRODUCTS AND PACKAGING SPECIFICATION: QEHS-699000-301 H H e. DATA MUST BE SUBMITTED UNDER THE MOLEX PART NUMBER TO IMDS (COMPANY ID#13255) 2x2 2. DESIGN - MATERIALS: a. FOR BILL OF MATERIALS SEE: -STANDARD CONFIGURATION SD-33472-0002 -TRANSMISSION CONGURATION G G CONTAINS SILICONE: SD-160038-0002 SILICONE FREE: SD-160092-0002 -UL V0 CONFIGURATION SD-160074-0002 C2 ADDED MOLEX BACKSHELL DETAILS C1 C1 ADDED 2X6-TRNS.-WITH/WITHOUT CLIPSLOT * C C ADDED 2X10-STD.-WITH CLIPSLOT * B3 ADD ROW FOR 2X6 V0 ON SHEET 5DIM3# UPDATE TO 25.0 MAX FOR V0DIM11# UPDATE TO 33.85 MAX FOR V0 B2 ADD 2X6 UL V0 CONFIGURATIONS B1 UPDATE 2X6 W/O CLIPSLOT DIM G ON TABLE OF SHEET 5 b. TRANSMISSION CONNECTOR COMPONENTS MUST MEET THE MATERIAL REQUIREMENTS SPECIFIED IN TS-160038-0001 & TBD 2x3 3. DESIGN - GEOMETRY: F F a. THE 3-D CAD DATA IS BASIC (WITHOUT TOLERANCE) AND MASTER FOR THIS PART WITH THE EXCEPTION OF UNDERLINED DIMENSIONS. DIMENSIONAL INFORMATION NOT SHOWN ON THIS DRAWING IS DEFINED BY THE DATA FILE AT ITS LATEST REVISION. b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5M-2009 c. EDGES AND UNDIMENSIONED DETAILS PER ISO13715 d. CORNERS SHOWN AS SHARP TO BE R 0.2 MAX. e. LETTERING SHALL BE 0.15 MAX RAISED IN 0.25 MAX RECESS PAD. E B THIS INCLUDES RECYCLING CODE, CAVITY ID, VENDOR IDENTIFICATION, 2x4 B AND CUSTOMER MATERIAL NUMBER. ADDED 2X2 - STD- WITH CLIPSLOT, 2X8 - STD- WITH CLIPSLOT AND NOTE h E A11 MINOR GEOMETRY CHANGE FOR UL V0 g. LASER MARKING: A10 UPDATED 2X4 DRAWING NUMBER 1. PART NUMBER A9 UPDATED 2X10 PART NUMBERS A8 UPDATED 2X3 DRAWING NUMBER A7 UPDATED 2X10 INTERFACE A6 ADDED TRANSMISSION REFERENCES A5 ADD 2X10 INTERFACE SHEETS A4 ADD UL V0 CONFIGURATIONS A3 ADDED 2X3 STD AND TRANSMISSION A2 UPDATED 2X8 BLD DRAWINGS A1 FIXED TYPO IN NOTE 1a, UPDATED 2X6 MOLEX INLINE BLADE DRAWING A INITIAL RELEASE REV REV DESCRIPTION f. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B). 2. DAY OF THE YEAR 3. SHIFT 4. YEAR D FOR ADDITIONAL INFORMATION SEE SECTION 5 UNDER PROCEDURES IN ES-34735-008. B h. 2X2 CLIP-SLOT DESIGN IS BASED ON USCAR/EWCAP 7mm CLIP SLOT EWCAP - 005 - 7 2X3 THRU 2X10 CLIP-SLOT DESIGN IS BASED ON USCAR/EWCAP 11mm CLIP SLOT EWCAP - 005 - 11 2x6 C INSPECTION NUMBER LOG LAST NUMBER: 11 ADDED: 11 REMOVED: SYMBOLS 2x8 B = 0 = 0 = 0 FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 P1 RELEASE DATE 17 16 2018/02/16 22:02:25 15 14 13 12 11 10 9 8 7 1:1 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± 0.1 1 PLACE ± 0.2 0 PLACES ± = 0 C mm = 0 = 0 2x10 SCALE ± = 0 C THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS ANGULAR TOL A DOCUMENT STATUS D 1.0 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER A 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 1 OF 11 1 18 17 16 15 14 13 12 11 10 9 7 8 5 6 4 3 2 1 SHEET DESCRIPTION L L CONFIGURATIONS B K K 2X2 - STD. 2X2 - STD. - WITH CLIPSLOT * 2X2 - TRNS. - SILICONE FREE † † 2X2 - UL V0 2X2 - STD. - LENGTHENED J J H H 2X3 - STD. 2X3 - STD. - WITH CLIPSLOT * 2X3 - TRNS. - CONTAINS SILICONE † G G F F 2X4 - STD. 2X4 - STD. - WITH CLIPSLOT * † 2X4 - UL V0 † 2X4 - UL V0-WITH CLIPSLOT* E E 2X6 - STD. - WITH CLIPSLOT * 2X6 - STD. D C1 C1 † 2X6 - TRNS. † 2X6 - UL V0 D † 2X6 - TRNS. - WITH CLIPSLOT * B * WITH CLIPSLOT CONFIGURATION DOES NOT C C MEET THE USCAR PACKAGING FRAME REQUIREMENTS † MINOR GEOMETRY DIFFERENCE THAN STANDARD CONFIGURATION SEE NOTES 1a & 2a-b FOR MORE INFORMATION 2X8 - STD. - WITH CLIPSLOT * 2X8 - STD. SYMBOLS B C = 0 = 0 = 0 2X10 - STD. - WITH CLIPSLOT * DOCUMENT STATUS FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 P1 RELEASE DATE 17 16 2018/02/16 15 14 13 12 11 10 9 8 7 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± = 0 C 1:1 = 0 = 0 22:02:25 mm ± = 0 † 2X10 - UL V0 SCALE ANGULAR TOL A 2X10 - STD. THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS 1 PLACE ± 0 PLACES ± 1.0 ° 0.1 0.2 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 2 OF 11 1 A 18 17 16 15 14 13 12 11 10 9 7 8 5 6 4 3 2 1 SHEET DESCRIPTION KEY CONFIGURATIONS L 2X2 60° 2X3 60° L 2X4 60° 60° 60° 60° K K J J KEY A KEY A 40° 60° KEY A 25° 60° 25° 60° H H G G KEY B 40° KEY B KEY B 25° 25° 60° 60° 60° F F E E KEY C KEY C 40° 40° 25° KEY C 25° 25° 25° D D C C KEY D KEY D KEY D SYMBOLS B = 0 = 0 = 0 FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 17 16 2018/02/16 22:02:25 15 14 13 12 11 10 9 8 7 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± = 0 C 1:1 = 0 = 0 RELEASE DATE mm ± = 0 P1 SCALE ANGULAR TOL A DOCUMENT STATUS THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS 1 PLACE ± 0 PLACES ± 1.0 ° 0.1 0.2 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 3 OF 11 1 A 18 17 16 15 14 13 12 11 10 9 7 8 5 6 4 3 2 1 SHEET DESCRIPTION KEY CONFIGURATIONS CONT. L 2X6 60° 2X10 2X8 60° 60° 60° 60° L 60° K K J J KEY A KEY A 25° 25° 25° 60° KEY A 60° 60° H H G G KEY B KEY B 25° 25° 25° F KEY B 60° 60° 60° F E E KEY C KEY C KEY C D 25° 25° 25° 25° 25° D 25° C C KEY D KEY D SYMBOLS B = 0 = 0 = 0 FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 17 16 2018/02/16 22:02:25 15 14 13 12 11 10 9 8 7 1:1 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± = 0 C mm = 0 = 0 RELEASE DATE SCALE ± = 0 P1 DIMENSION UNITS ANGULAR TOL A DOCUMENT STATUS KEY DTECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC 1 PLACE ± 0 PLACES ± 1.0 ° 0.1 0.2 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 4 OF 11 1 A 18 17 16 15 14 13 12 11 10 9 7 8 5 6 4 2 1 CHARTED DIMENSIONS SHEET DESCRIPTION L 3 RECEPTACLE CONNECTOR ASSEMBLY A B C D E F G 2X2 W/O CLIPSLOT 18.58 1.75 25.45 24.81 37.65 N/A 2.75±0.50 2X2 W/ CLIPSLOT 18.58 1.75 27.65 24.81 37.65 N/A 2.75±0.50 2X2 LENGTHENED 18.58 1.75 25.45 24.81 42.25 N/A 2.75±0.50 2X3 W/ CLIPSLOT 22.25 3.5 30.50 N/A 37.65 27.96 4.0±0.4 2X3 W/O CLIPSLOT 22.25 3.5 26.24 24.90 37.65 N/A 4.0±0.4 2X4 W/ CLIPSLOT 25.75 1.75 31.50 N/A 37.65 28.00 2.75±0.50 27.04 2X4 W/O CLIPSLOT 25.75 1.75 29.19 24.81 37.65 N/A 2.75±0.50 27.04 2X6 W/ CLIPSLOT 32.75 1.75 35.58 N/A 37.65 27.76 2.75±0.50 2X6 W/O CLIPSLOT 32.75 1.75 35.58 24.90 37.65 N/A 2.75±0.50 32.95 2X6 W/O CLIPSLOT V0 32.75 1.75 35.58 25.0 37.65 N/A 2.75±0.50 33.85 2X8 W/O CLIPSLOT 39.80 1.75 42.25 24.90 37.65 N/A 4.0±0.4 2X8 W/ CLIPSLOT 39.80 1.75 42.25 N/A 37.65 27.80 4.0±0.4 2X10 W/O CLIPSLOT 46.75 1.75 49.95 24.90 37.65 N/A 2.75±0.50 2X10 W/ CLIPSLOT 46.75 1.75 49.95 N/A 37.65 27.80 2.75±0.50 MIN PASS-THRU WITH NO CLEARANCE K *DIM J MAX. * APPLIES TO UL-V0 CONFIGURATIONS ONLY 11 J B DIMENSIONS DESCRIPTION ⌀DIM C APPLIES TO 2X2 - STD. - WITH CLIPSLOT ONLY L J 20.04 K 48.04 ⌀DIM C MIN PASS-THRU J WITH NO CLEARANCE 2 LASER MARKING ON THIS SURFACE TERMINAL SEE NOTE 3g. POSITION 1 H H DIM D MAX 3 G G LAST TERMINAL DIM E MAX 3.50 TYP POSITION 1 4X DIM B REAR VIEW DIM A MAX. 5 (WIRE HARNESS SIDE) F F MOLD CAVITY I.D. THIS LOCATION RECYCLE CODE THIS LOCATION E E MANUFACTURING LOCATION CODE THIS LOCATION 9 11.00 4 DIM F MAX 10 2.00 D D 6.60 7 C 15.00 8 Partial X-X DIM G C SCALE 3:1 6 SYMBOLS B = 0 = 0 = 0 PRIMARY LOCK REINFORCEMENT (PLR) SHOWN A PRIMARY LOCK REINFORCEMENT (PLR) SHOWN IN PRE-STAGED POSITION IN FINAL-LOCK POSITION SECTION Y-Y DOCUMENT STATUS FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 P1 RELEASE DATE 17 16 2018/02/16 15 14 13 12 11 10 9 8 7 1:1 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) = 0 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± 0.1 1 PLACE ± 0.2 0 PLACES ± = 0 C mm ± = 0 22:02:25 SCALE ANGULAR TOL = 0 SECTION Z-Z THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS 1.0 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER A 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 5 OF 11 1 18 17 16 15 14 13 12 11 10 9 7 8 5 6 4 3 2 1 SHEET DESCRIPTION BACKSHELL NOTES L L BACKSHELL NOTES: VALID UNLESS OTHERWISE SPECIFIED 1. GENERAL: a. APPLICATION SPECIFICATION SEE: AS-34951-001 -DESIGNED TO MATE WITH RECEPTACLE SEALED ASSEMBLY SPECIFIED IN MOLEX DRAWING SD-33472-0001. -SYSTEM TO BE USED WITH WIRE WITHIN DIAMETER RANGE OF 1.2mm TO 2.69mm. -COMPONENTS ARE OPTIONAL AND MUST BE PURCHASED SEPERATELY. -DESIGN IS OWNED BY SCHLEMMER FOR SCHLEMMER BACKSHELL. K K -DESIGN IS OWNED BY MOLEX FOR MOLEX BACKSHELL. -90° ADAPTOR DESIGN IS OWNED BY MOLEX. -FOR ADDITIONAL INFORMATION SEE THE BACKSHELL COMPONENT DRAWING SD-34951-0001. 2X3 J J BACKSHELL CUSTOMER MODEL NUMBER LEGEND 34951-XXXX H 90° ADAPTOR CUSTOMER MODEL COMPONENTS 0 - SCHLEMMER BACKSHELL ONLY 1 - SCHLEMMER BACKSHELL & MX150 HOUSING KEY A ASSEMBLY 2 - SCHLEMMER BACKSHELL & MX150 HOUSING KEY B ASSEMBLY 3 - SCHLEMMER BACKSHELL & MX150 HOUSING KEY C ASSEMBLY 4 - SCHLEMMER BACKSHELL & MX150 HOUSING KEY D ASSEMBLY 5 - MOLEX BACKSHELL ONLY 6 - MOLEX BACKSHELL & MX150 HOUSING KEY A ASSEMBLY 7 - MOLEX BACKSHELL & MX150 HOUSING KEY B ASSEMBLY 8 - MOLEX BACKSHELL & MX150 HOUSING KEY C ASSEMBLY 9 - MOLEX BACKSHELL & MX150 HOUSING KEY D ASSEMBLY 2X4 G G BACKSHELL FEATURES 1 - WITH RIBS 2 - WITHOUT RIBS 3 - 90° ADAPTOR 2X4 H BACKSHELL (BKS) MX150 CIRCUIT SIZE 04, 06, 08, 12, 16, 20 F F RECEPTACLE SEALED ASSEMBLY E E 2X6 SCALE 2:1 D D C C 2X8 SYMBOLS B = 0 = 0 = 0 FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 P1 RELEASE DATE 17 16 22:02:25 15 14 13 12 11 10 9 8 7 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± = 0 C 1.5:1 = 0 = 0 2018/02/16 mm ± = 0 DOCUMENT STATUS SCALE ANGULAR TOL A 2X10 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS 1 PLACE ± 0 PLACES ± 1.0 ° 0.1 0.2 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 6 OF 11 1 A 18 17 16 15 14 13 12 11 10 9 7 8 5 6 4 3 2 1 SHEET DESCRIPTION SCHLEMMER BACKSHELL L L K K J J H H V V G G F F 11.00 E E 1.50 6.50 D 10.70 D Partial V-V SCALE 4:1 C C SYMBOLS B = 0 = 0 = 0 FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 17 16 2018/02/16 22:02:25 15 14 13 12 11 10 9 8 7 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± = 0 C 4:1 = 0 = 0 RELEASE DATE mm ± = 0 P1 SCALE ANGULAR TOL A DOCUMENT STATUS THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS 1 PLACE ± 0 PLACES ± 1.0 ° 0.1 0.2 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 7 OF 11 1 A 18 17 16 15 14 13 12 11 10 9 7 8 5 6 4 3 2 1 SHEET DESCRIPTION MOLEX BACKSHELL L L K K J J H H G G F F E E D D C C SYMBOLS B = 0 = 0 = 0 FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 17 16 2018/02/16 22:02:25 15 14 13 12 11 10 9 8 7 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± 0.1 1 PLACE ± 0.2 0 PLACES ± = 0 C 3:1 = 0 = 0 RELEASE DATE mm ± = 0 P1 SCALE ANGULAR TOL A DOCUMENT STATUS THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS 1.0 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER A 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 8 OF 11 1 18 17 16 15 14 13 12 11 10 9 8 7 5 6 4 3 2 SHEET DESCRIPTION SCHLEMMER BACKSHELL CONFIGURATIONS 1 CHARTED DIMENSIONS DIMENSIONS DESCRIPTION H N/A 2X3 W/ CLIPSLOT 28.50 2X3 W/O CLIPSLOT L 2X4 W/ CLIPSLOT 2X4 W/O CLIPSLOT 2X6 W/ CLIPSLOT 2X6 W/O CLIPSLOT L N/A 30.75 N/A 35.83 K K J J ⌀DIM H MIN PASS-THRU WITH NO CLEARANCE H H (71.26) G G F F E E D D RECEPTACLE SEALED ASSEMBLY WITH RECEPTACLE BACKSHELL C C = ANGULAR TOL ± 1.0 ° = 0 4 PLACES ± = 0 3 PLACES ± 2 PLACES ± 0.1 APPR BY 1 PLACE ± 0.2 VKOSHY 0 PLACES ± P1 RELEASE DATE 17 2018/02/16 16 22:02:25 15 14 13 12 11 10 9 8 7 0 = 0 = 0 = 0 171650 DDEB MVANSLAMBROU MVANSLAMBROU 0 REV RELEASE STATUS 18 FORMAT: master-tb-prod-A1 REVISION: G DATE: 2017/02/06 C DRWN BY = = A 0 EC NO: DRWN: CHK'D: APPR: B THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE GENERAL B TOLERANCES mm 4:1 (UNLESS SPECIFIED) 2018/01/19 2018/02/16 2018/02/16 QUALITY SYMBOLS C2 6 DATE 2014/05/14 APROFFITT 2014/06/16 KBORUSZEWSKI DRAWING SIZE DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 5 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL DATE CHK'D BY DATE 2014/06/27 PRODUCT CUSTOMER DRAWING MATERIAL NUMBER SERIES A CUSTOMER THIRD ANGLE PROJECTION 33472 A1 GENERAL MARKET DOCUMENT NUMBER DOC TYPE DOC PART SHEET NUMBER SD-33472-0001 4 3 PSD 2 001 9 OF 11 1 18 17 16 15 14 13 12 11 10 9 7 8 5 6 4 SHEET DESCRIPTION MOLEX BACKSHELL CONFIGURATIONS B 2X2 LENGTHENED 2X4 W/ CLIPSLOT 2X4 W/O CLIPSLOT 2X8 W/ CLIPSLOT 2X8 W/O CLIPSLOT 2X10 W/ CLIPSLOT 2X10 W/O CLIPSLOT �⌀ DIM K� MIN PASS-THRU WITH NO CLEARANCE 2 1 CHARTED DIMENSIONS DIMENSIONS DESCRIPTION J K L TBD TBD TBD 2X2 W/O CLIPSLOT TBD TBD TBD 2X2 W/ CLIP SLOT L �DIM J� MAX 3 B C TBD 58.39 N/A 67.19 N/A 67.19 N/A TBD 32.85 N/A 42.65 N/A 42.65 N/A TBD 32.10 N/A 36.10 N/A 36.10 N/A M TBD TBD L TBD 44.26 N/A 56.49 N/A 56.49 N/A K K J J H H RECEPTACLE SEALED ASSEMBLY WITH RECEPTACLE BACKSHELL G G �⌀ DIM M� MIN PASS-THRU WITH NO CLEARANCE F F E E D D �DIM L� MAX ADD THE VALUE OF 'L' TO THE TOTAL DIMENSION WHENEVER ADAPTOR IS USED C C SYMBOLS B = 0 = 0 = 0 FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 17 16 2018/02/16 22:02:25 15 14 13 12 11 10 9 8 7 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± 0.1 1 PLACE ± 0.2 0 PLACES ± = 0 C 2.5:1 = 0 = 0 RELEASE DATE mm ± = 0 P1 SCALE ANGULAR TOL A DOCUMENT STATUS THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS 1.0 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER A 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 10 OF 11 1 18 17 16 15 14 13 12 11 10 9 7 8 5 6 4 3 2 1 IF HEADER IS RECESSED INTO A POCKET, THESE DIMENSIONS REPRESENT NO PARTING LINE AT THIS LOCATION 60° L 60° ICD 10 1.79±0.20 5.27 5.27 R2.0 THE MINIMUM CLEARANCE REQUIRED FOR THE MATING CONNECTOR SHROUD 25.40MIN. ICD 25 L 25.40MIN. ICD 26 ICD 11 5° ICD 9 30° ICD 28 15.3MIN. ICD 27 20.50MIN. MIN. ALL AROUND FOR MATING CONNECTOR ICD 12 SHROUD CLEARANCE 11.4MIN. ICD 29 K K 0.70±0.15 ALL AROUND 22.88+0.10 -0.20 22.88+0.10 -0.20 DETAIL A ICD 2 ICD 1 PACKAGE FRAME ICD 13 R (6.47) 2.30 ICD 30 SCALE 10:1 KEYING OPTION A ICD 31 SCALE 4:1 MATING INTERFACE NOTES: VALID UNLESS OTHERWISE SPECIFIED ICD 32 J 3.00 20X 9.75+0.10 -0.20 25° 12.90 ICD 15 DETAIL A 60° ICD 14 2.90+0.20 -0.80 5.27 C ICD 16 H 10.50+0.15 -0.10 ICD 17 17.10+0.10 -0.20 CONNECTOR-HEADER POLARIZATION FEATURES (OPTIONS A THRU D) WILL FUNCTION. THE FULL SHROUD ALSO PREVENTS SCOOP DAMAGE TO THE HEADER PINS. REFER TO 'SAE/USCAR-12 CONNECTOR DESIGN GUIDE LINES' FOR ADDITIONAL INFORMATION b. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR DA 22.88+0.10 -0.20 DATUM B ICD 4 B KEYING OPTION B (0.805) 2. MATERIAL MUST BE SELF EXTINGUISHING 2. MATERIALS: a. MATERIAL: SPS/NYLON GF20, REGRIND 20% MAX BY WEIGHT 3.50 1.50 ALL AROUND ICD 21 F ICD 18 ICD 19 AT TIP REFER TO EWCAP DWG. NO. EWCAP-001 'D' 18.00 ICD 20 25° 60° AT BASE 1.50 TERMINAL BLADE CONFIGURATION 5.27 DEVIATION REQUIRES APPROVAL OF AUTHORIZED PERSON DETAIL C 40.83 17.10+0.10 -0.20 ICD 6 22.88+0.10 -0.20 ICD 5 THICKNESS: 1.25 - 2.25 MICROMETERS THICKNESS: 2.5 - 4.0 MICROMETERS 2. SILVER: - BARRIER MATERIAL: ELECTRO-DEPOSITED DUCTILE SULPHAMATE NICKEL THICKNESS: 1.25 - 2.25 MICROMETERS (0.5% MAX IMPURITIES) OVER NICKEL ANTI-TARNISH TREATMENT EVERBRIGHT WS 4X R5.73 2X R641.56 25° NO ICD 22 C 13.05 17.10+0.10 -0.20 17.10+0.10 -0.20 ICD 7 ICD 8 LUBRICANTS SHOULD BE APPROVED BY THE RESPONSIBLE ENGINEER. (1.20) 5. INFORMATION FOR BLADE DESIGN WAS DEVELOPED FROM EWCAP DWG: EWCAP-001 ICD 36 3. GEOMETRY: REFER TO EWCAP DWG. NO. EWCAP-001 a. THIS IS A 100% CAD GENERATED PART. THE CAD MATHEMATICAL DATA IS THE MASTER 150-T001 FOR THIS PART. FOR DIMENSIONAL OR ANY INFORMATION NOT SHOWN ON THIS DRAWING, 1.50 TERMINAL BLADE CONFIGURATION SURFACE MUST BE FREE ANALYZE THE CAD MODEL. (2.90) AT TANGENT 5.50 OPTION DOCUMENT STATUS FORMAT: master-tb-prod-A1 REVISION: H DATE: 2017/10/06 18 RELEASE DATE 17 16 f. NO PARTING LINES, NO DRAFT, MISMATCHES OR EJECTOR MARKS PERMISSIBLE WITHIN CONSTRUCTION BELOW THIS SURFACE IS NOT CONTROLLED BY EWCAP. NO PLASTIC SECTION B-B FEATURES MAY EXTEND ABOVE THIS SURFACE. SYMBOLS = 0 = 0 1.05±0.05 ICD 23 = 0 FOR POSITIONS 13 12 11 10 9 8 7 SCALE mm 1:1 CURRENT REV DESC: B GENERAL TOLERANCES (UNLESS SPECIFIED) = 0 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± = 0 C DIMENSION UNITS ± = 0 22:02:25 SEALING SURFACE. SEALING SURFACE TOOLING TO BE PROCESSED THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION TO A SURFACE FINISH OF NTMA #70 (400 PAPER) MINIMUM ANGULAR TOL = 0 SEE KEYING OPTION VIEWS 14 b. ALLOWABLE FLASH MAX 0.20 HIGH BY MAX 0.13 THICK. e. NO EXTERNAL MOLD RELEASE AGENT ALLOWED DURING MANUFACTURING APPLIES 2X 15 ICD 37 C OF A FEATURE. DRAFT WILL REMOVE MATERIAL. d. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B) SCALE 20:1 2018/02/16 OF A FEATURE. DRAFT WILL ADD MATERIAL. c. ALLOWABLE SPLIT/PARTING LINE MISMATCH 0.2 MAX. COLOR P1 PLUS DRAFT - INDICATES A DIMENSION REPRESENTS THE SMALLEST SIZE MINUS DRAFT - INDICATES A DIMENSION REPRESENTS THE LARGEST SIZE DETAIL C P/N c. GENERAL TOLERANCES: SEE TITLE BLOCK a. DRAFT TO BE WITHIN TOLERANCE. ICD 24 STONE GRAY DK GRAY LT GRAY BLACK MATING CONNECTOR D 4. MANUFACTURING: SCALE 4:1 D C B A b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 1994 d. EDGES AND UNDIMENSIONED DETAILS PER ISO13715 0.25° MAX DRAFT KEYING OPTION D 150-S-020-2-D02 150-S-020-2-C02 150-S-020-2-B02 150-S-020-2-A02 E AMBIENT TERMPERATURE PER SAE USCAR-2 FOR 1008 HOURS, PROCESS 18X 3.50 SECTION C-C 13.05 REFLECTIVITY - SECTION 6.0 OR DEGRADE IT'S ELECTRICAL PERFORMANCE UP TO A MAXIMUM CLASS A T 4X R4.42 3. BLADES MUST CONFORM TO ES-40000-5007, EXCEPT FOR SPECULAR 4. ANY PROCESS LUBRICANT REMAINING ON THE TERMINAL MUST NOT VARNISH 15.75 SEALING ALL AROUND SCALE 4:1 25° THICKNESS: 1.9 - 3.3 MICROMETERS TERMINAL POSITION 20 PARTING LINES FOR KEYING OPTION C F - TOP LAYER: ELECTRO-DEPOSITED SEMI-BRIGHT PURE SILVER 2X R31.73 OF SURFACE DEFECTS AND 2X R30.42 - BARRIER MATERIAL: NICKEL DEPOSIT FROM NICKEL SULFAMATE PLATING SOLUTION W/O ANY ADDITIVES 6.00 15.33 G - TOP LAYER: 100% ELECTRO-DEPOSITED TIN, MATTE FINISH 2X R642.87 E TENSILE STRENGTH >= 410 N/mm瞈P B TERMINAL POSITION 11 13.05 c. FOR BLADE BASE MATERIAL, PLATING AND PROCESS LUBRICANT: 1. TIN: - BASE MATERIAL:COPPER ALLOY, CONDUCTIVITY >=60% IACS AT 20°C; 17.95 150-T001 SECTION A-A b. STANDARD COLORS FOR POLARIZATION (SEE KEYING OPTIONS TABLE). TERMINAL POSITION 10 3.00 H 1. BURN RATE 100mm/MIN MAXIMUM A VA LI SCALE 4:1 A PRODUCTS AND PACKAGING SPECIFICATION: ES-40000-5016 c. FLAMMABILITY REQUIREMENT: PER ISO3795 OR GM3191 ICD 35 TERMINAL POSITION 1 G B ICD 34 43.45 ICD 3 D A FULL SHROUD ON THE MATING CONNECTOR IS REQUIRED TO INSURE THAT THE 2X 17.00MIN. AT TANGENT 13.05 a. DESIGNED TO MATE WITH MOLEX CONNECTOR 33472-2XXX & 160008-0XXX & 160074-0XXX C 3.50 J 1. GENERAL: TE D ICD 33 1 PLACE ± 0 PLACES ± 1.0 ° 0.1 0.2 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 6 EC NO: 171650 DRWN: DDEB CHK'D: MVANSLAMBROU APPR: MVANSLAMBROU INITIAL REVISION: DRWN: APROFFITT APPR: VKOSHY THIRD ANGLE PROJECTION 5 2018/01/19 2018/02/16 2018/02/16 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2014/05/14 2014/06/27 DRAWING SERIES A1-SIZE 33472 4 MX150 RCPT DUAL ROW SEALED ASSEMBLY MAT SEAL SD-33472-0001 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 3 2 C2 SHEET NUMBER 11 OF 11 1 A
