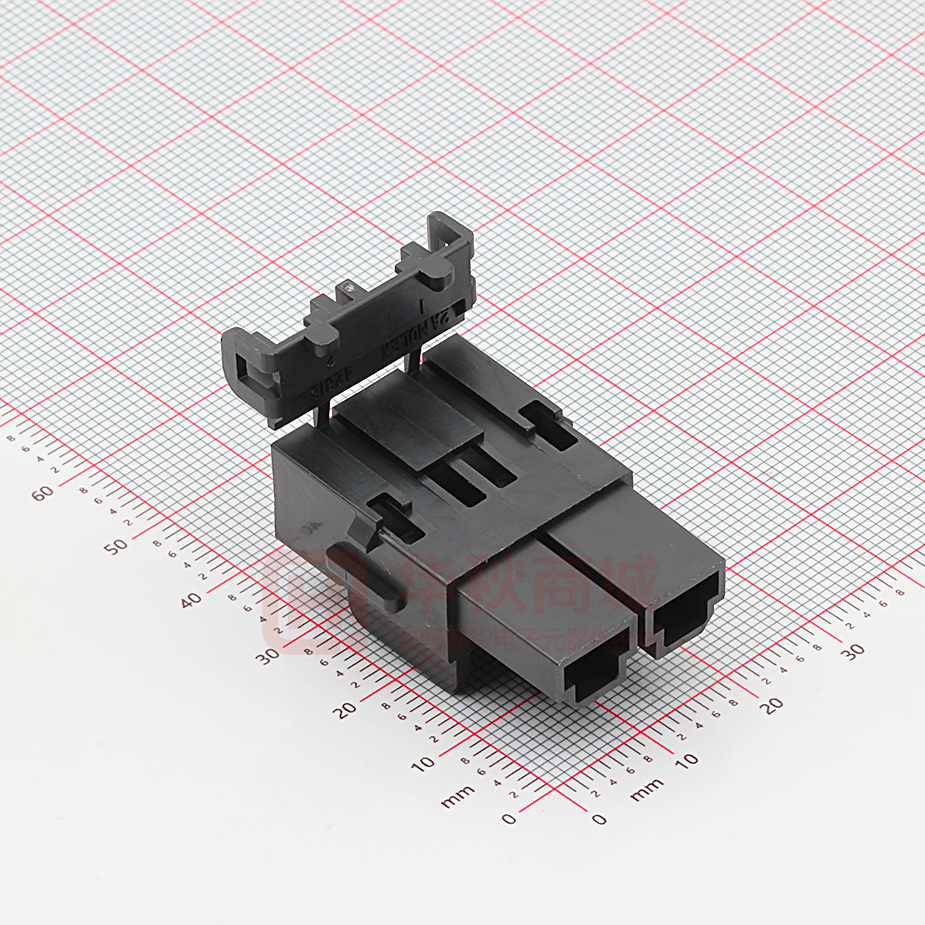

0428160212

This document was generated on 10/26/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0428160212 Active Overview: Description: Mini-Fit Sr. Power Connectors 10.00mm Pitch Mini-Fit Sr. Receptacle Housing, Single Row, 2 Circuit, Black Documents: 3D Model Drawing (PDF) Product Specification PS-42815-001 (PDF) Packaging Specification PK-42816-002-001 (PDF) Test Summary TS-42815-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only Agency Certification CSA UL LR19980 E29179 General Product Family Series Application Overview Product Name UPC Crimp Housings 42816 Power, Wire-to-Board Mini-Fit Sr. Power Connectors Mini-Fit Sr. 800754381628 Physical Circuits (maximum) Color - Resin Flammability Gender Glow-Wire Capable Lock to Mating Part Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Polarized to Mating Part Stackable Temperature Range - Operating 2 Black 94V-0 Receptacle No Yes Polyester 4.840/g 1 Bag No 10.00mm Yes No -40° to +105°C Electrical Current - Maximum per Contact 50.0A Solder Process Data Lead-freeProcess Capability N/A EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Not Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Search Parts in this Series 42816 Series Mates With 42818-0212 , 42820 2 Circuit Right Angle Headers Use With Terminal Position Assurance (TPA) Clip Included. 42815 Female Crimp Terminal Material Info Reference - Drawing Numbers Packaging Specification Product Specification Test Summary Green Image Not Relevant Not Contained PK-42816-002-001 PS-42815-001 TS-42815-001 This document was generated on 10/26/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 42816-0212
