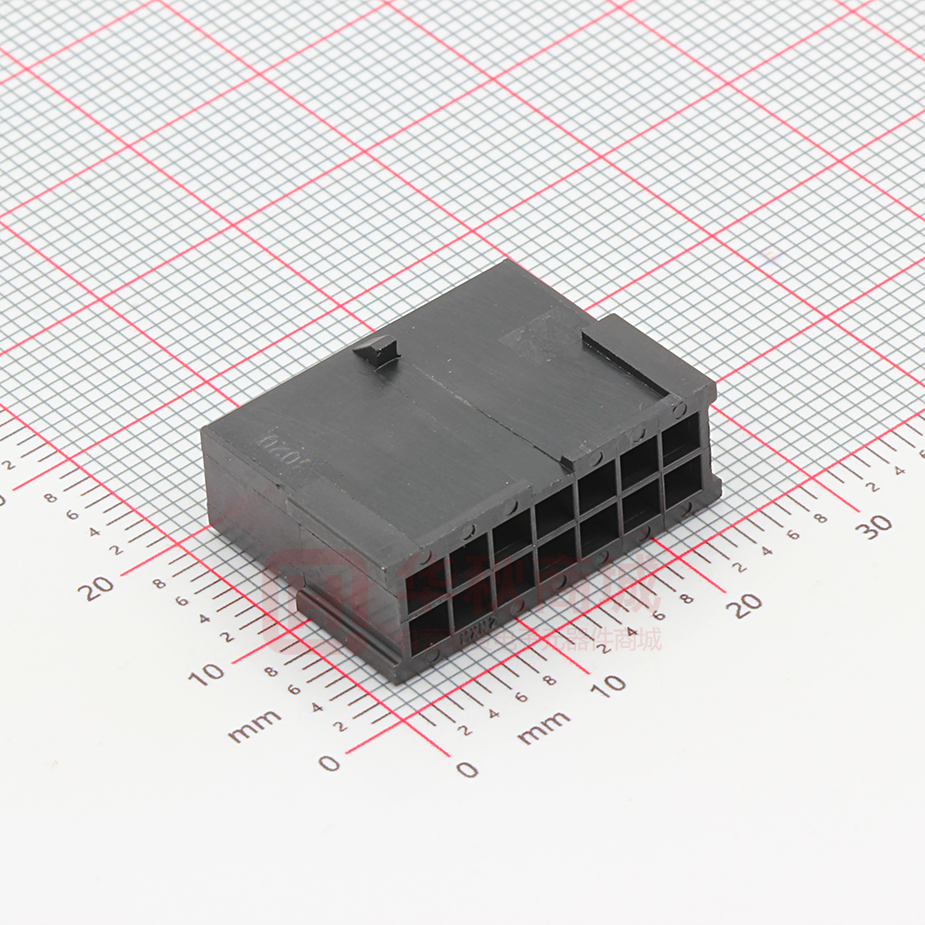

This document was generated on 11/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0430201401 Active Overview: Description: Micro-Fit 3.0 Connector System Product Family Micro-Fit 3.0 Plug Housing, Dual Row, 14 Circuits, UL 94V-0, Low-Halogen, Black Documents: Drawing (PDF) 3D Model Product Specification PS-43045 (PDF) Product Specification PS-43045-001 (PDF) Product Specification TS-43045-001-001 (PDF) Product Specification TS-46235-001-001 (PDF) Packaging Specification PK-43020-001-001 (PDF) RoHS Certificate of Compliance (PDF) Product Literature (PDF) Series image - Reference only Agency Certification CSA UL LR19980 E29179 General Product Family Series Application Overview Product Literature Order No Product Name UPC Crimp Housings 43020 Power, Wire-to-Wire Micro-Fit 3.0 Connector System Product Family 987650-5984 Micro-Fit 3.0 800754383639 Physical Circuits (maximum) Color - Resin Flammability Gender Glow-Wire Capable Keying to Mating Part Lock to Mating Part Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Polarized to Mating Part Stackable Temperature Range - Operating 14 Black 94V-0 Plug No None Yes Nylon 1.518/g 2 Bag No 3.00mm 3.00mm Yes No -40° to +105°C EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Search Parts in this Series 43020 Series Mates With Micro-Fit 3.0 Receptacle Housings 43025 Use With Micro-Fit 3.0 Male Crimp Terminals 43031 Material Info Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing Green Image Not Relevant Not Contained PK-43020-001-001 PS-43045, PS-43045-001, TS-43045-001-001, TS-46235-001-001 SDA-43020-**** This document was generated on 11/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 43020-1401
