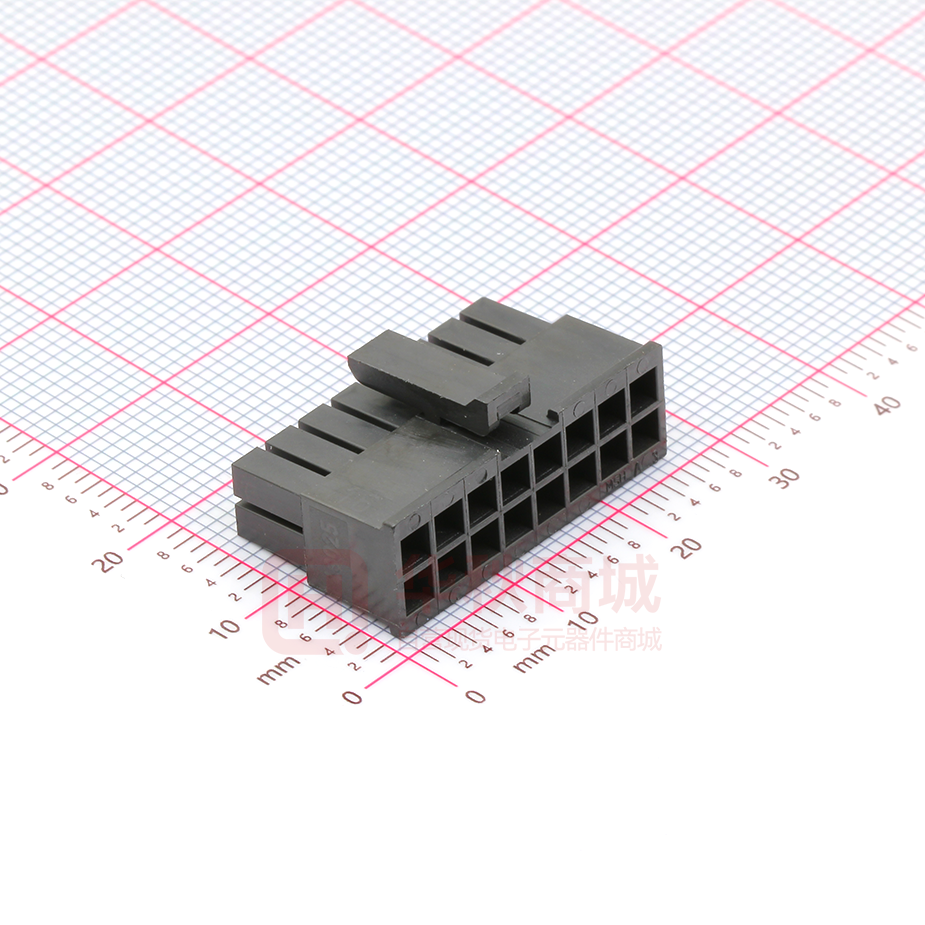

0430251600

This document was generated on 11/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0430251600 Active Overview: Description: Micro-Fit 3.0 Connector System Product Family Micro-Fit 3.0 Receptacle Housing, Dual Row, 16 Circuits, UL 94V-0, Black Documents: Drawing (PDF) 3D Model Product Specification PS-43045 (PDF) Product Specification PS-43045-001 (PDF) Product Specification TS-43045-001-001 (PDF) Product Specification TS-46235-001-001 (PDF) Application Specification 430250000-AS-000 (PDF) Packaging Specification PK-43025-001-001 (PDF) RoHS Certificate of Compliance (PDF) Product Literature (PDF) Agency Certification CSA UL LR19980 E29179 General Product Family Series Application Overview Product Literature Order No Product Name UPC Crimp Housings 43025 Power, Wire-to-Board, Wire-to-Wire Micro-Fit 3.0 Connector System Product Family 987650-5984 Micro-Fit 3.0 800753694750 Physical Circuits (maximum) Color - Resin Flammability Gender Glow-Wire Capable Keying to Mating Part Lock to Mating Part Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Polarized to Mating Part Stackable Temperature Range - Operating 16 Black 94V-0 Receptacle No None Yes Polyester 1.680/g 2 Bag No 3.00mm Yes No -40° to +105°C Solder Process Data Lead-freeProcess Capability N/A Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing 430250000-AS-000 PK-43025-001-001 PS-43045, PS-43045-001, TS-43045-001-001, TS-46235-001-001 430250000-SD-000 This document was generated on 11/01/2018 Series image - Reference only EU ELV Compliant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Not Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Compliant Not Contained Search Parts in this Series 43025 Series Mates With Micro-Fit 3.0 Plug Housings 43020 , MicroFit 3.0 Headers 43045 , Micro-Fit 3.0 Test Plug 44242 Use With Micro-Fit 3.0 Female Crimp Terminals 43030 , 45773 , Micro-Fit RMF Female Crimp Terminals 46235 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 43025-1600
