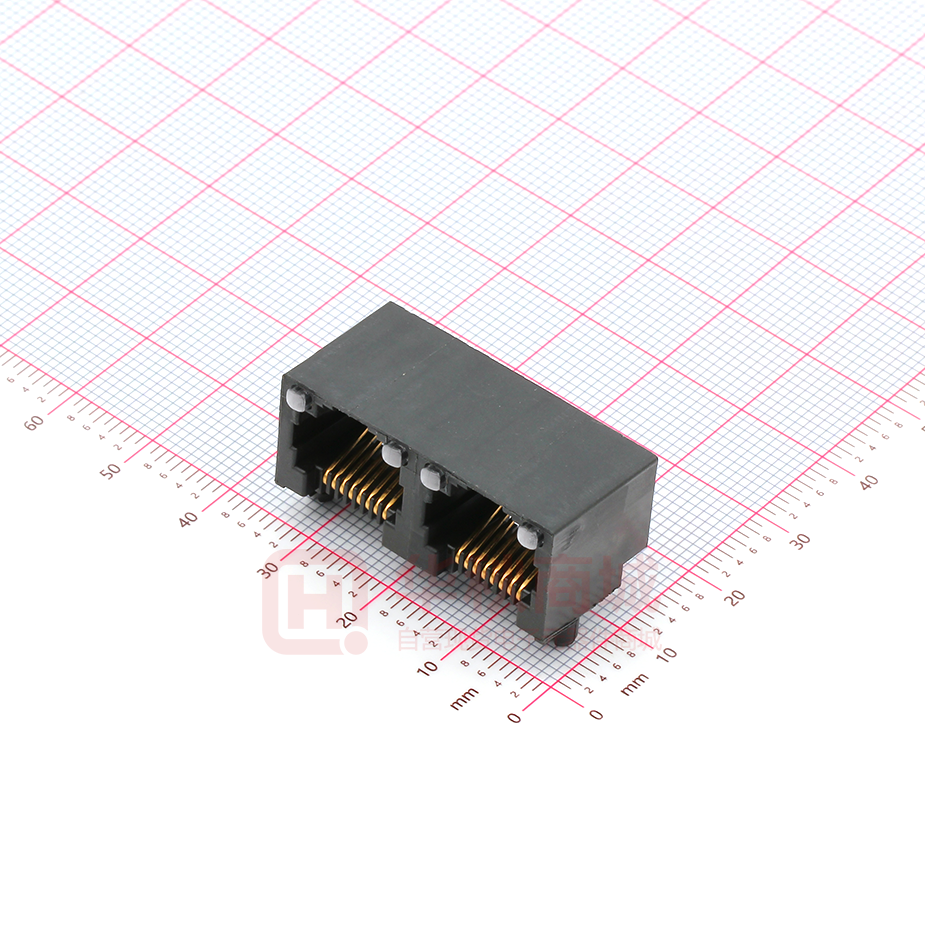

0442480001

This document was generated on 10/08/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0442480001 Active Overview: Description: Magnetic and Modular Jacks and Plugs Modular Jack, Right-Angle, Low Profile, Inverted, Lightpipes, 8/8, 2 Ports Documents: 3D Model Drawing (PDF) Product Specification PS-43860-003 (PDF) Product Specification TS-43860-001-001 (PDF) Application Specification AS-43860-001-001 (PDF) Packaging Specification PK-44248-004 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only Agency Certification CSA UL LR19980 E107635 General Product Family Series Comments Component Type Magnetic Overview Performance Category Power over Ethernet (PoE) Product Name UPC Modular Jacks/Plugs 44248 Industry Compatible PCB Jack No Magnetic and Modular Jacks and Plugs 3 N/A Modular Jack 8/8, RJ45 800753131002 Physical Boot Color Color - Resin Durability (mating cycles max) Flammability Inverted / Top Latch Jack Height Lightpipes/LEDs Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Orientation PCB Locator PCB Retention PCB Thickness - Recommended Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Plating min - Termination Ports Positions / Loaded Contacts Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style Waterproof / Dustproof Wire/Cable Type N/A Black, Clear 500 94V-0 Yes 13.21mm Lightpipes Phosphor Bronze Gold Tin Polycarbonate, Polyester 3.841/g Right Angle (Side Entry) Yes Yes 1.57mm Tray With Flange 1.02mm 1.02mm 1.270µm 2.540µm 2 8/8 No -40° to +85°C Through Hole No N/A EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Not Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 44248 Series Mates With FCC 68 Plugs Electrical Current - Maximum per Contact Grounding to PCB Shielded Voltage - Maximum 1.5A No No 150V AC (RMS) Solder Process Data Duration at Max. Process Temperature (seconds) Lead-freeProcess Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 005 WAVE 001 260 Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing AS-43860-001-001 PK-44248-004 PS-43860-003, TS-43860-001-001 SD-44248-001 This document was generated on 10/08/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 44248-0001
