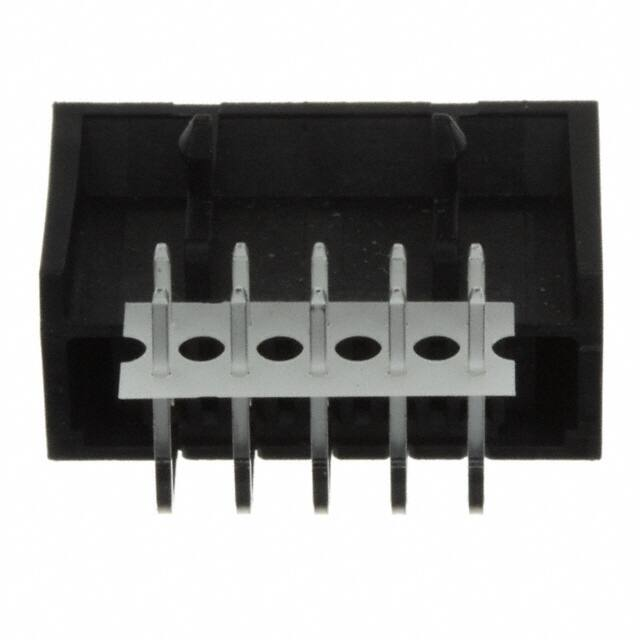

0444281002

This document was generated on 11/11/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0444281002 Active Micro-Fit Connector System Micro-Fit BMI Header, Surface Mount Compatible, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 10 Circuits, 0.38µm Gold (Au) Selective Plating Documents: Drawing (PDF) 3D Model 3D Model (PDF) Product Specification PS-44300-001-001 (PDF) Packaging Specification PK-44428-001-001 (PDF) Agency Certification CSA UL General Product Family Series Application Comments Overview Product Name UPC Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Flammability Glow-Wire Capable Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PC Tail Length PCB Locator PCB Retention PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Plating min - Mating Plating min - Termination Polarized to PCB Shrouded Stackable Test Summary 444280001-TS-000 (PDF) Datasheet (PDF) Symbol Footprint Data SYM-44428-1001-001 (PDF) Symbol Footprint Data SYM-44428-10013-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only EU ELV Not Relevant LR19980 E29179 PCB Headers 44428 Board-to-Board, Power, Wire-to-Board High Temperature|Square Pin|Solder Type|Polarized to Mating Part Micro-Fit Connector System Micro-Fit BMI 800756379760 No 10 10 Black 30 No 94V-0 No No None Yes Brass Gold Tin High Temperature Thermoplastic 2.384/g 2 Right Angle 3.50mm Yes Yes 1.60mm Tray 3.00mm 0.381µm 2.540µm Yes Fully No EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Not Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 44428 Series Mates With 44133 Micro-Fit BMI Panel Mount Receptacle Housing, 44764 Micro-Fit BMI Receptacle Header, 44769 Micro-Fit BMI Receptacle Header Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style Yes -40° to +105°C Through Hole Electrical Current - Maximum per Contact Voltage - Maximum 8.5A 600V Solder Process Data Duration at Max. Process Temperature (seconds) Lead-freeProcess Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 005 WAVE 001 260 Material Info Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing Symbol/Footprint Data Test Summary PK-44428-001-001 PS-44300-001-001 SD-44428-001-001 SYM-44428-1001-001, SYM-44428-1001_3-001 444280001-TS-000 This document was generated on 11/11/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
