0447641602

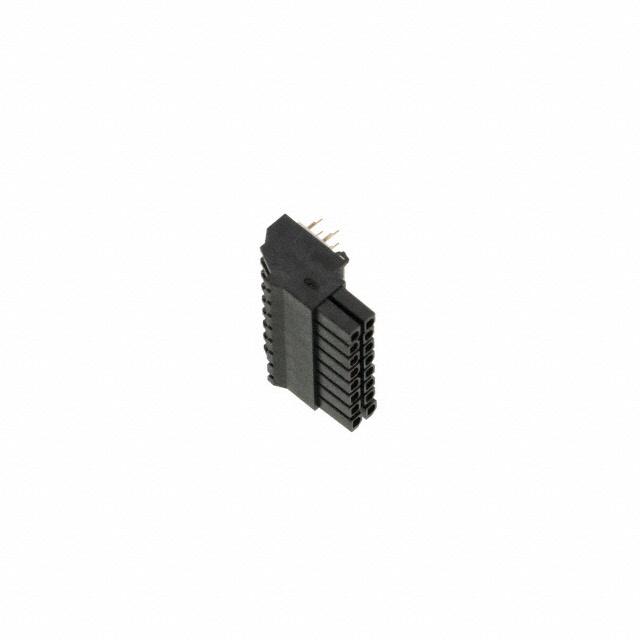

Part Number : 447641602 Product Description : Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 0.38µm Gold (Au) Selective, 16 Circuits Series Number : 44764 Status : Active Product Category : PCB Headers and Receptacles Documents & Resources Drawings Drawing 447641602_sd.pdf Packaging Design Drawing PK-44764-001-001.pdf 3D Models and Design Files 3D Model 447641602_stp.zip Symbol Footprint Data SYM-44764-1601-001.zip Specifications Product Specification PS-44300-001-001.pdf Test Summary 443000002-TS-000.pdf Test Summary TS-44764-001-001.pdf Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Low-Halogen per IEC 61249-2-21 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category PCB Headers and Receptacles Series 44764 Description Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Pressfit Plastic Pegs, 0.38µm Gold (Au) Selective, 16 Circuits Application Board-to-Board, Power, Wire-toBoard Component Type PCB Receptacle Product Family Micro-Fit Connector System Product Name Micro-Fit BMI UPC 756054398654 CSA LR19980 UL E29179 Current - Maximum per Contact 8.5A Voltage - Maximum 600V Circuits (Loaded) 16 Circuits (maximum) 16 Durability (mating cycles max) 30 Flammability 94V-0 Agency Electrical Physical Glow-Wire Capable No Material - Metal Phosphor Bronze Material - Plating Mating Gold Material - Plating Termination Tin Net Weight 4.464/g Number of Rows 2 Orientation Right Angle Packaging Type Tray PCB Locator Yes PCB Retention Yes PCB Thickness - Recommended 1.60mm Pitch - Mating Interface 3.00mm Plating min - Mating 0.381µm Plating min - Termination 2.540µm Polarized to PCB Yes Temperature Range - Operating -40° to +105°C Termination Interface Style Through Hole Solder Process Data Max-Duration 5 Lead-Free Process Capability WAVE Max-Cycle 1 Max-Temp 260 Mates With / Use With Mates with Part(s) Description Part Number Micro-Fit BMI Dual Row Plug Housings 44300 Micro-Fit BMI Right-Angle Dual Row Headers 44428 Micro-Fit BMI Vertical Dual Row Headers 44432 This document was generated on Jan 24, 2024
