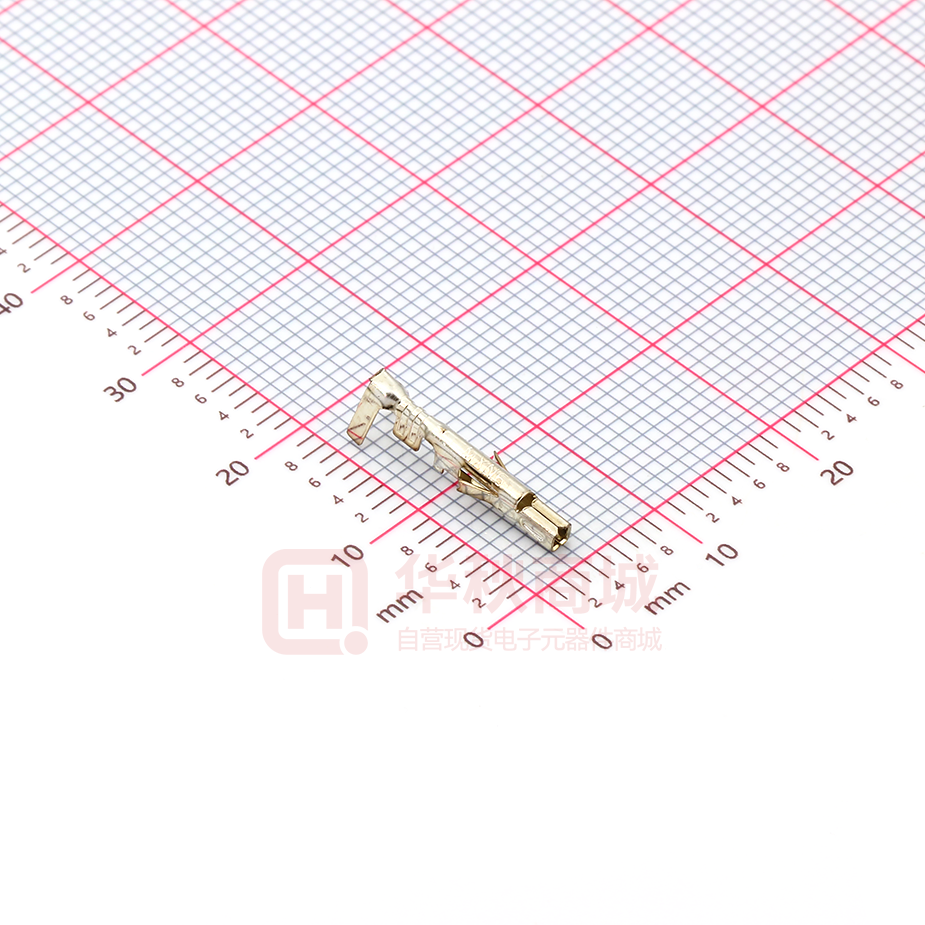

0457501111

This document was generated on 10/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0457501111 Active Overview: Description: Mini-Fit Plus Connector System Mini-Fit Plus Crimp Terminal, 18-20 AWG, Reel, Copper (Cu) Alloy, Tin (Sn) Documents: Drawing (PDF) Product Specification PS-45750-001-001 (PDF) General Product Family Series Application Comments Packaging Specification PK-45750-001-001 (PDF) RoHS Certificate of Compliance (PDF) Crimp Quality Equipment Overview Packaging Alternative Product Name UPC Crimp Terminals 45750 Power, Wire-to-Board, Wire-to-Wire Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. . See Molex product specification PS-45750-001 for additional current derating information. Yes Mini-Fit Plus Connector System 45750-1112 (Loose) Mini-Fit Plus 822350286015 Physical Durability (mating cycles max) Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² 100 Female Copper Alloy Tin Tin 0.150/g Reel 2.540µm 2.540µm Crimp or Compression 1.80-3.10mm 18, 20 N/A Electrical Current - Maximum per Contact Voltage - Maximum 13.0A 600V Solder Process Data Lead-freeProcess Capability N/A Series image - Reference only EU ELV Compliant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Search Parts in this Series 45750 Series Mates With 46012 Mini-Fit Plus Crimp Terminal Use With 5557 Mini-Fit Jr., 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, 43760 Mini-Fit BMI, 44516 Mini-Fit BMI Panel Mount SlideN-Lock Material Info Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing Green Image Compliant Not Contained PK-45750-001-001 PS-45750-001-001 SD-45750-001-001, SDIN-45750-001 This document was generated on 10/01/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 45750-1111 45750-1111 (Mouser Reel) 45750-1111 (Cut Strip)
