0465561745

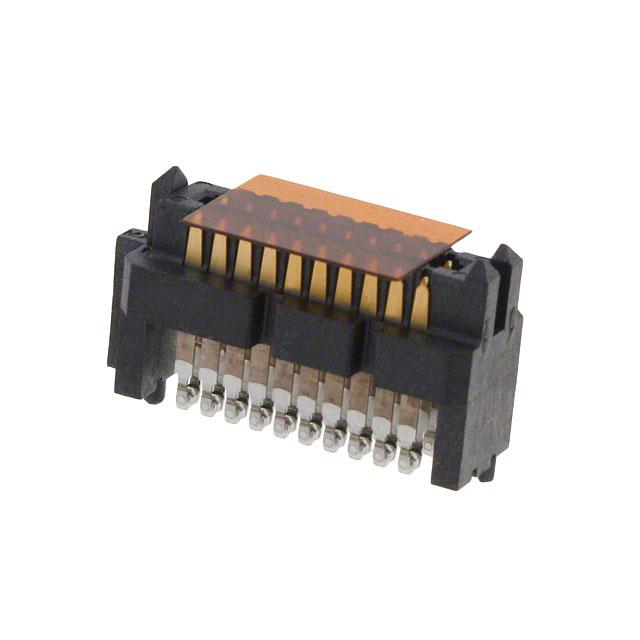

Part Number : 465561745 Product Description : Searay Slim Plug, 40 Circuits, 7.00mm Unmated Height, 4 Rows, with Pegs, Solder Charge Lead-Free Series Number : 46556 Status : Active Product Category : Board-to-Board Connectors Documents & Resources Drawings Drawing 465561745_sd.pdf Packaging Design Drawing PK-45970-002-001.pdf 3D Models and Design Files 3D Model 465561745_stp.zip Electrical Model Document EE-45970-010-010.pdf S-Parameter Model SP-45970-010-010.zip Symbol Footprint Data SYM-46556-1745-001.zip Specifications Application Specification AS-45970-001-001.pdf Application Specification AS-45970-002-001.pdf Application Specification AS-45970-990-001.pdf Product Specification PS-45970-001-001.pdf Product Specification TS-45970-001-001.pdf Test Summary TS-45970-002-001.pdf Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Low-Halogen per IEC 61249-2-21 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category Board-to-Board Connectors Series 46556 Description Searay Slim Plug, 40 Circuits, 7.00mm Unmated Height, 4 Rows, with Pegs, Solder Charge LeadFree Application Board-to-Board, Signal Component Type PCB Header Product Family SEARAY and SEARAY Slim Mezzanine Family Product Name SEARAY UPC 883906481704 CSA LR19980 UL E29179 Current - Maximum per Contact 2.7A Voltage - Maximum 240V AC Agency Electrical Physical Breakaway No Circuits (Loaded) 40 Circuits (maximum) 40 Color - Resin Black Durability (mating cycles max) 100 First Mate / Last Break No Flammability 94V-0 Glow-Wire Capable No Guide to Mating Part Yes Keying to Mating Part Yes Lock to Mating Part None Material - Metal Copper Alloy Material - Plating Mating Gold Material - Plating Termination Tin Material - Resin High Temperature Thermoplastic Net Weight 1.242/g Number of Rows 4 Orientation Vertical Packaging Type Embossed Tape on Reel PCB Locator Yes PCB Retention Yes PCB Thickness - Recommended 1.60mm Pitch - Mating Interface 1.27mm Pitch - Termination Interface 1.27mm Plating min - Mating 0.762µm Polarized to Mating Part Yes Polarized to PCB Yes Robotic Placement Pick and Place Cap Shrouded No Stackable No Temperature Range - Operating -55° to +125°C Termination Interface Style Surface Mount Unmated Height 7.00mm Solder Process Data Max-Duration 20 Lead-Free Process Capability REFLOW Max-Cycle 3 Max-Temp 260 Mates With / Use With Mates with Part(s) Description Part Number SEARAY Slim Receptacles 46557 This document was generated on Jan 24, 2024
