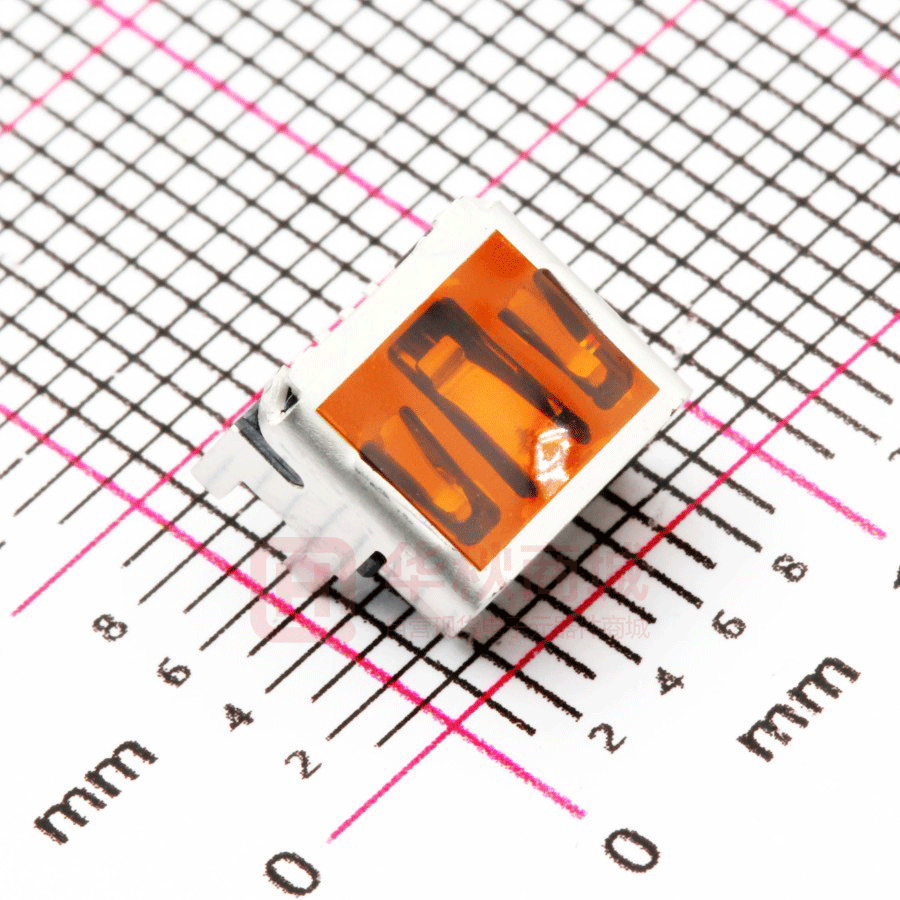

This document was generated on 10/26/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0513870578 Active USB Products and Solutions Mini USB, B-Receptacle, Right-Angle, Short Body, Surface Mount Solder Tails and Through Hole Shell Tabs, with Cover Tape, Lead-Free Documents: 3D Model Drawing (PDF) Product Specification PS-51387-002-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Application Component Type Overview Product Name Type UPC I/O Connectors 51387 Wire-to-Board Receptacle USB Products and Solutions USB 2.0, USB OTG (On-The-Go) Mini-B 822348105311 Physical Circuits (Loaded) Circuits (maximum) Color - Resin Gender Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PCB Locator PCB Retention Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Plating min - Termination Polarized to Mating Part Polarized to PCB Ports Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style 5 5 Black Female Yes High Performance Alloy (HPA), Phosphor Bronze Gold Tin High Temperature Thermoplastic 0.443/g 1 Right Angle Yes Yes Embossed Tape on Reel No 0.80mm 0.80mm 0.762µm 1.016µm Yes Yes 1 Yes 0° to +50°C Surface Mount Electrical Current - Maximum per Contact Shield Type Shielded Voltage - Maximum 1.0A Full Shield Yes 30V AC (RMS)/DC Solder Process Data Duration at Max. Process Temperature (seconds) Lead-freeProcess Capability 003 REFLOW EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 51387 Series Mates With 59205-3301 , 59204-9405 Max. Cycles at Max. Process Temperature Process Temperature max. C 001 250 Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-51387-002-001 SD-51387-003, SD-51387-004 This document was generated on 10/26/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 51387-0578
