0530140610

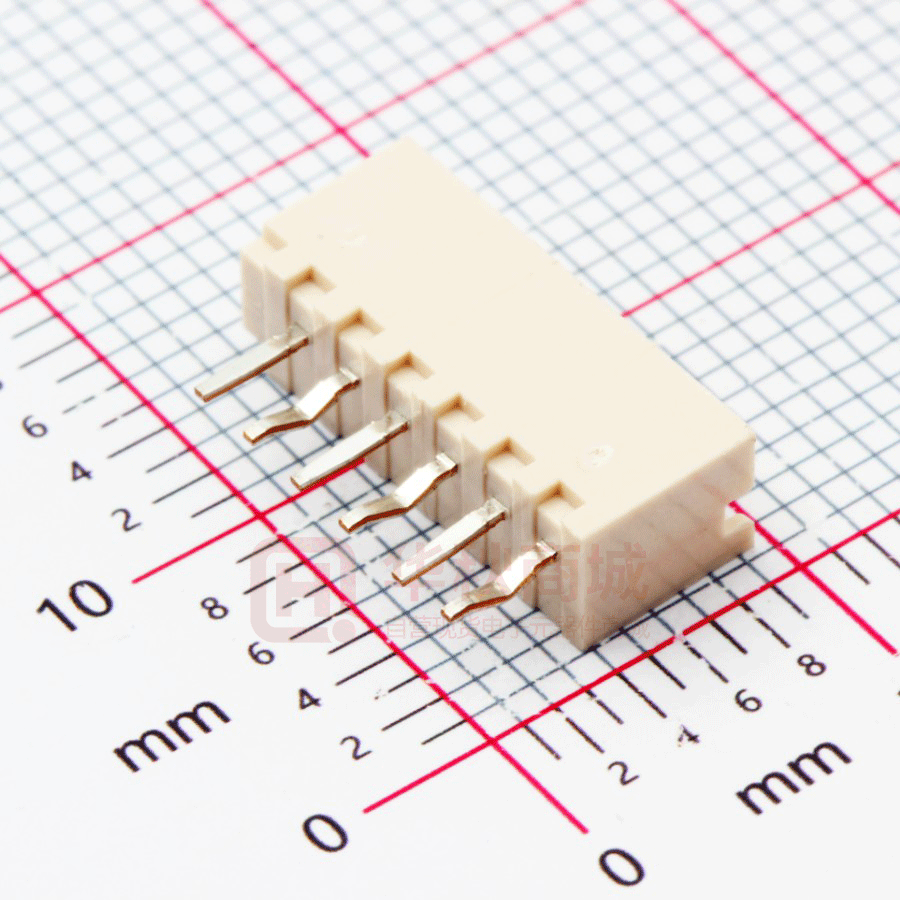

This document was generated on 08/21/2017 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0530140610 Active Description: 2.00mm Pitch MicroBlade™ Wire-to-Board Header, Vertical, 6 Circuits Documents: 3D Model Drawing (PDF) Product Specification PS-51004-002-001 (PDF) Agency Certification CSA UL Packaging Specification 530149200-200 (PDF) RoHS Certificate of Compliance (PDF) LR19980 E29179 General Product Family Series Application MolexKits Product Name UPC PCB Headers 53014 Signal, Wire-to-Board Yes MicroBlade™ 800753566255 Physical Breakaway Circuits (Loaded) Circuits (maximum) Durability (mating cycles max) First Mate / Last Break Flammability Glow-Wire Compliant Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PC Tail Length PCB Locator PCB Retention PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Polarized to PCB Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style No 6 6 30 No 94V-0 No No None Yes Phosphor Bronze Tin Tin Nylon 398.000/mg 1 Vertical 3.50mm No Yes 1.60mm Bag 2.00mm No Fully No No -20°C to +85°C Through Hole Electrical Current - Maximum per Contact Voltage - Maximum 2.0A 125V Material Info Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per -ED/01/2017 (12 January 2017) Halogen-Free Status Not Low-Halogen Need more information on product environmental compliance? Email productcompliance@molex.com Please visit the Contact Us section for any non-product compliance questions. China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 53014 Series Mates With 51004 Crimp Housing, 50011 Crimp Terminal Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing 530149200-200 PS-51004-002-001 SD-53014-001 This document was generated on 08/21/2017 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 53014-0610
