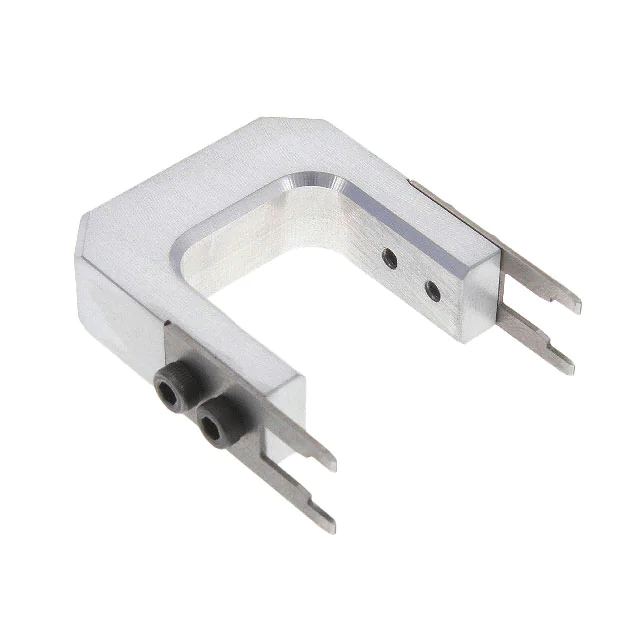

Extractor Tool for CMX Receptacle Connector Extractor Tool Application Tooling Specification Sheet Order No. 63824-3300 FEATURES This Extractor Tool is for opening the Secondary Lock from 55 Circuit CMX Receptacle. SCOPE Products: CMX Receptacle Connector Assembly, 55 Circuits, Right and Left Slide Orientation. Housing Series No Housing Order No. 560065 560065-5511 560065-5512 560065-5521 560065-5522 502725 502725-5511 502725-5512 502725-5521 502725-5522 50272-5523 50272-5524 OPERATION: Opening the (TPA) Secondary Lock On a CMX receptacle assembly follow the steps below: 1. Insert the extractor tool into the (2) side slots of the (TPA) secondary lock on each sides until it stops. See Figure 1. TPA SECONDARY LOCKING LATCHES (BOTH SIDES) SLOTS TPA SECONDARY LOCK CLOSED SLOTS Figure 1 EXTRACTOR TOOL Doc No: ATS-638243300 Revision: A Release Date: 01-25-13 Revision Date: 01-25-13 UNCONTROLLED COPY Page 1 of 2 Extractor Tool for CMX Receptacle Connector 2. While keeping the extractor tool in this position pull down on the sides of the (TPA) secondary lock without touching the latches. 3. Pull the TPA out just enough so that the locking latches are visible. Do not remove the TPA. See Figure 2. 4. Remove the extractor tool and check the position of the TPA. LOCKING LATCHES OPEN (BOTH SIDES) EXTRACTOR TOOL TPA SECONDARY LOCK OPEN Figure 2 CAUTION: Molex specifications are valid only when used with Molex terminals, applicators and tooling. Molex does not offer repair parts for Extractor Tools due to the inexpensive nature of these tools. Contact Information For more information on Molex application tooling please contact Molex at 1-800-786-6539. Visit our Web site at http://www.molex.com Doc No: ATS-638243300 Revision: A Release Date: 01-25-13 Revision Date: 01-25-13 UNCONTROLLED COPY Page 2 of 2
