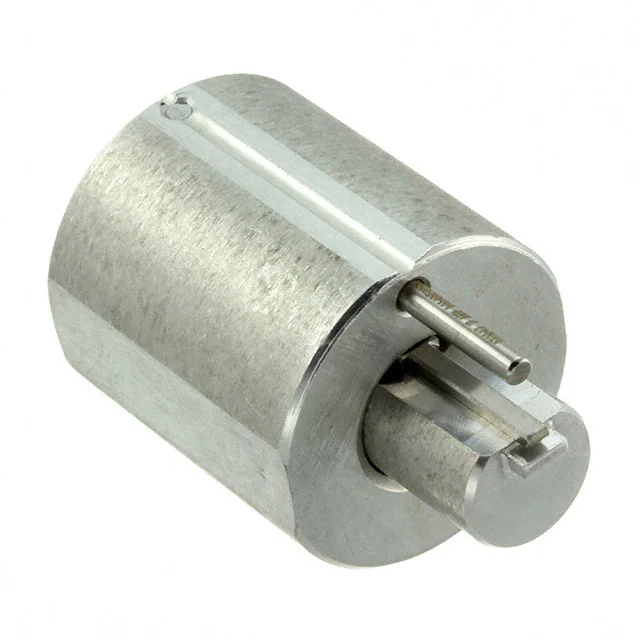

Extractor Tool for CTX280 Receptacle Crimp Terminal Extractor Tool Application Tooling Specification Sheet Order No. 63824-5400 FEATURES  This Extractor Tool is for the removal of a CTX280 Receptacle Crimp Terminal (98675 Series) from a 53, 70, 104, or 120 Way CMX Connector. SCOPE Products: CTX280 Receptacle Crimp Terminal for CMX Connector. Terminal Series No. 98675 Unsealed 98675 Sealed 98675-0001 98675-0013 98675-0031 98675-1001 98675-1013 98675-1031 98675-0002 98675-0014 98675-0032 98675-1002 98675-1014 98675-1032 Terminal Order No. 98675-0003 98675-0004 98675-0021 98675-0022 98675-0033 98675-0034 98675-1003 98675-1004 98675-1021 98675-1022 98675-1033 98675-1034 9867-0011 98675-0023 98675-0012 98675-0024 98675-1011 98675-1023 98675-1012 98675-1024 TPA Latch Before terminals can be extracted the TPA latch must be opened. Use the applicable extractor tool below: ►For 53 Way Connectors see document ATS-638240100. For 70 Way Connectors see document ATS-638241900. For 104 Way Connectors see document ATS-638242000 For 120 Way Connectors see document ATS-638242000. (Not used on the 27-48 Way connectors) ► For the 53 Way connector, the locating pin will need to be removed from the 63824-5400 Extractor Tool. See Figure 1. LOCATING PIN Figure 1 1. Insert the extractor tool into the (2) side slots of the (TPA) secondary lock on each sides until it stops. See Figure 2. 2. While keeping the extractor tool in this position pull down on the (TPA) secondary lock. See Figure 3. 3. Remove the extractor tool and check the position of the TPA. Doc No: ATS-638245400 Revision: A Release Date: 06-09-15 Revision Date: 06-09-15 UNCONTROLLED COPY Page 1 of 2 Extractor Tool for CTX280 Receptacle Crimp Terminal SLOTS TPA LATCH SLOTS 1 Figure 3 Figure 2 3 EXTRACTOR TOOL OPERATION: When removing a damaged crimped wire from the CMX connector follow the steps below: 1. Position the blade of the extraction tool into the small “T” slot in the front face of the housing as shown in Figure 4. Use the identifying markings on both the front and back of the connector to locate the opening used to extract the crimped wire. CMX HOUSING CMX CONNECTOR WIRE CRIMPED WIRE AND TERMINAL T-SLOT EXTRACTOR TOOL Figure 5 PUSH EXTRACTOR TOOL INTO FRONT FACE Figure 4 2. Push extractor tool into the desired “T” slot until it clicks or comes to a stop. Do not force the extractor tool any further or there can be damage to the housing. See Figure 5. 3. Gently push the wire forward towards the housing and then pull out of the CMX housing. 4. Molex does not offer repair parts for Extractor Tools due to the inexpensive nature of these tools. Visit our Web site at http://www.molex.com Doc No: ATS-638245400 Revision: A Release Date: 06-09-15 Revision Date: 06-09-15 UNCONTROLLED COPY Page 2 of 2
