0643221349

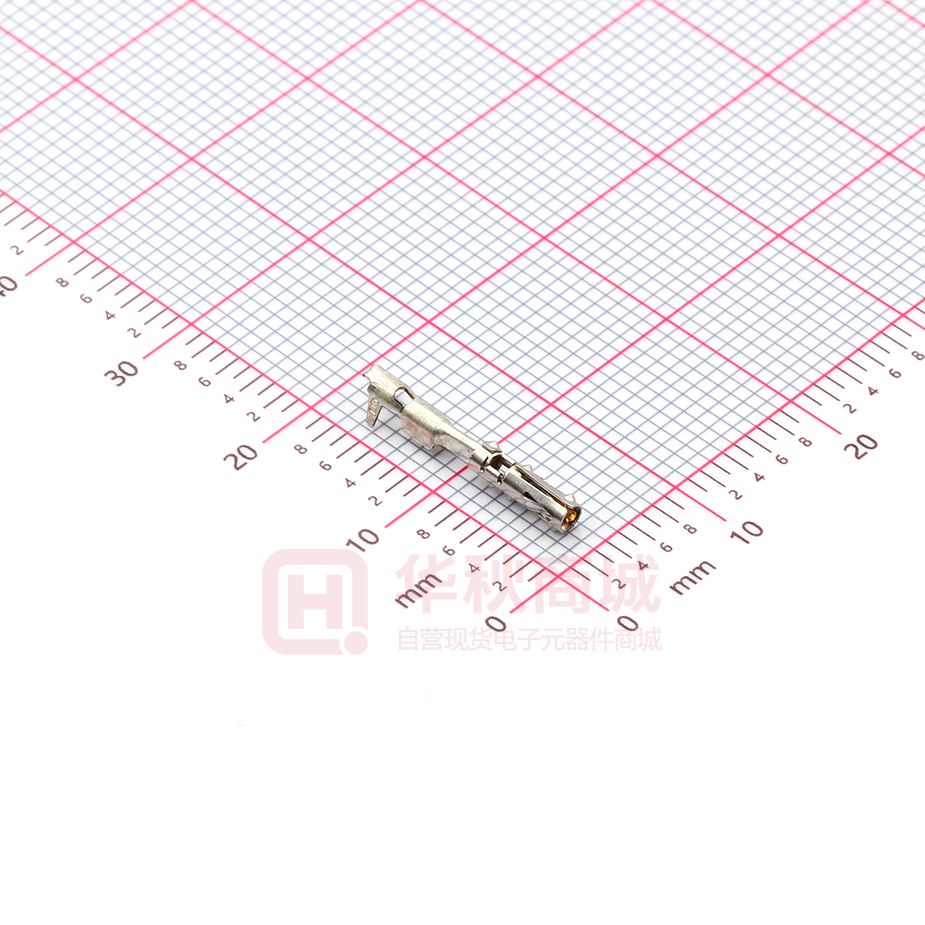

This document was generated on 09/12/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0643221349 Active CMC and CMX Sealed, Hybrid, Modular Connectors 0.635mm CMC CP Female Terminal, HP VERSION, Tin Plated, Selective 1.27µm Gold in Contact Area, for Square 0.6mm x 0.6mm Pins, Wire Size 0.35mm² Documents: 3D Model Drawing (PDF) Product Specification PS-64319-002-001 (PDF) Product Specification PS-64326-001-001 (PDF) Application Specification AS-64318-002-001 (PDF) Application Specification AS-64318-002-CH-001 (PDF) Application Specification AS-64318-002-FR-001 (PDF) Application Specification AS-64318-002-SP-001 (PDF) Application Specification AS-64319-002-001 (PDF) Application Specification AS-64319-002-CH-001 (PDF) Application Specification AS-64319-002-FR-001 (PDF) Application Specification AS-64319-002-SP-001 (PDF) General Product Family Series Application Comments Application Specification AS-64322-001-001 (PDF) Application Specification AS-64322-001-CH-001 (PDF) Application Specification AS-64322-001-FR-001 (PDF) Application Specification AS-98420-001-001 (PDF) Application Specification AS-98420-001-CH-001 (PDF) Application Specification AS-98420-001-FR-001 (PDF) Application Specification AS-98420-001-SP-001 (PDF) Application Specification AS-98420-002-001 (PDF) Application Specification AS-98420-002-CH-001 (PDF) Application Specification AS-98420-002-FR-001 (PDF) Application Specification AS-98420-002-SP-001 (PDF) RoHS Certificate of Compliance (PDF) Crimp Quality Equipment Overview Product Name UPC Crimp Terminals 64322 Signal, Wire-to-Board * Current tested on a 5 terminals loaded connector, current for temperature increase of 40°C. Current max = 6A for 0.635mm Terminal(0.75mm² wire) Plated: Gold plated locally 0.8µm, tin plated 1 to 3µm Yes CMC and CMX Sealed, Hybrid, Modular Connectors CMC, CP Terminal 883906129569 Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Phosphor Bronze Tin Gold 0.110/g Reel 1.270µm Crimp or Compression 0.51-0.64mm 22, 24 0.20-0.30 Electrical Series image - Reference only EU ELV Compliant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/108/2014 (17 Dec 2014) Halogen-Free Status Not Relevant Need more information on product environmental compliance? Email productcompliance@molex.com Please visit the Contact Us section for any non-product compliance questions. China ROHS ELV Prop65 RoHS Phthalates Not Relevant Compliant Compliant Not Contained Search Parts in this Series 64322 Series Mates With CMC Connector 64318 , 64319 , 64320 , 64321 , 64326 Use With CMC Connector 64318 , 64319 , 64320 , 64321 , 64326 Current - Maximum per Contact Voltage - Maximum 6.0A 14V DC Solder Process Data Lead-freeProcess Capability N/A Material Info Reference - Drawing Numbers Application Specification Product Specification Sales Drawing AS-64318-002-001, AS-64318-002-CH-001, AS-64318-002-FR-001, AS-64318-002-SP-001, AS-64319-002-001, AS-64319-002-CH-001, AS-64319-002-FR-001, AS-64319-002-SP-001, AS-64322-001-001, AS-64322-001-CH-001, AS-64322-001-FR-001, AS-98420-001-001, AS-98420-001-CH-001, AS-98420-001-FR-001, AS-98420-001-SP-001, AS-98420-002-001, AS-98420-002-CH-001, AS-98420-002-FR-001, AS-98420-002-SP-001 PS-64319-002-001, PS-64326-001-001 SD-64322-002-000 This document was generated on 09/12/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 64322-1349
