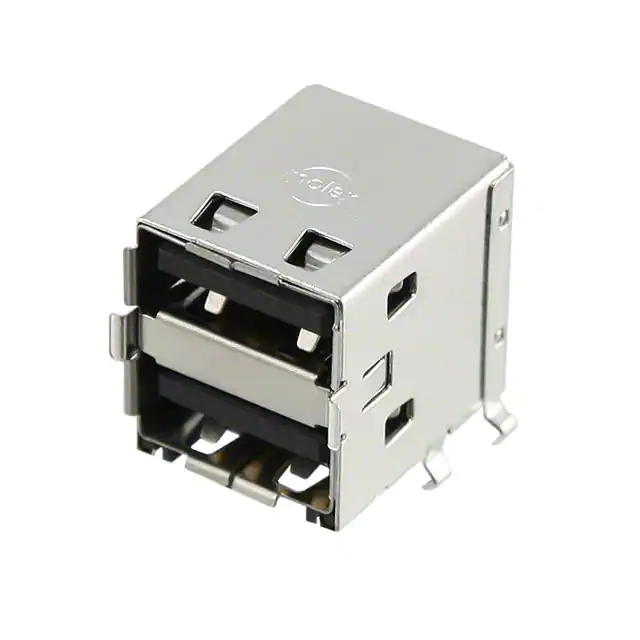

0672983090

10 9 7 8 5 6 4 3 2 1 F F Molex Logo R0.60 TYP. 13.90 WEEK CODE BACK SHELL HOUSING XXXXX 13.30 8.50 PANEL CUT-OUT DIMENSIONS 17.30 REF. 12.50 �10.28� 15.60 0.25 2.00 8- WEEK 7.00 14.00 0.25 D 0.92 0.08 A B YEAR 0.63 0.13 2.50 TERMINAL 0.10 5.68 4 1 2.00 C 2.80 5.12 8.50 4' E P/N COLOR CONTACT PLATING 67298-3090 BLACK GOLD FLASH 67298-4090 WHITE GOLD FLASH 67298-3091 BLACK 30 MICRO INCH 67298-4091 WHITE 30 MICRO CHEN 1' 4' 1 4 C 2.71 1' 15.59 5.12 D NOTE : 1. MATERIAL : HOUSING :POLYESTER(PBT),GLASS FIBER FILLED, UL94-V0,COLOR:SEE TABLE TERMINAL :PHOSPHOR BRONZE METAL SHELL :FRONT SHELL:SUS 304 BACK SHELL:SPCC 2. PLATING : TERMINAL : CONTACT AREA :SEE TABLE SOLDER TAIL :TIN(Sn) ALLOY,THICKNESS=75 MICROINCH MIN/1.9 MICROMETER MIN. UNDER PLATE :NICKEL(Ni),THICKNESS=50 MICREINCH MIN/1.27 MICROMETER MIN. METAL SHELL :TIN PLATING,THICKNESS=100 MICROINCH MIN/2.54 MICROMETER MIN. UNDER PLATE :NICKEL (Ni),THICKNESS=50 MICROINCH MIN/1.27 MICROMETER MIN. 3. RECOMMANDED PCB THICKNESS :1.60+/-0.05mm 4. PRODUCT SPECIFICATION:REFER TO PS-67298-001 5. TEST SUMMARY:REFER TO TS-67298-008 6. PACKAGING:REFER TO PK-67298-003 7. THE HOUSING MATERIAL IS NOT FOR IR REFLOW PROCESS OR SURFACE MOUNTING COMPATIBLE PROCESS. 8. LEAD FREE AND ROHS COMPLIANCE PRODUCT 9. WEEK CODE XXXXX 2.50 42.30 0.08 FACTORY 5.33 0.56 E 4.19 6.12 TYP. FRONT SHELL 3.07 13.14 -A- -B- RECOMMENDED PCB LAYOUT B B THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE mm 1:1 CURRENT REV DESC: REVISED GENERAL TOLERANCES (UNLESS SPECIFIED) ANGULAR TOL A DOCUMENT STATUS FORMAT: master-tb-prod-B REVISION: H DATE: 2018/01/18 10 P1 RELEASE DATE 9 2018/10/24 ± 4 PLACES ± 3 PLACES ± 2 PLACES ± 1 PLACE ± 0 PLACES ± 3.0 ° 0.25 0.25 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 04:05:16 8 7 6 5 4 EC NO: 605761 DRWN: FYANG05 CHK'D: RZHANG APPR: RZHANG INITIAL REVISION: DRWN: JCHEN12 APPR: WWSCHANG THIRD ANGLE PROJECTION 3 2018/10/09 2018/10/24 2018/10/24 USB DUAL STACKED A CONNECTOR (LEAD FREE VERSION) PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2005/05/06 2005/05/10 DRAWING SERIES B-SIZE 67298 SD-67298-008 MATERIAL NUMBER PSD 001 CUSTOMER GENERAL MARKET 2 D SHEET NUMBER 1 OF 1 1 A
