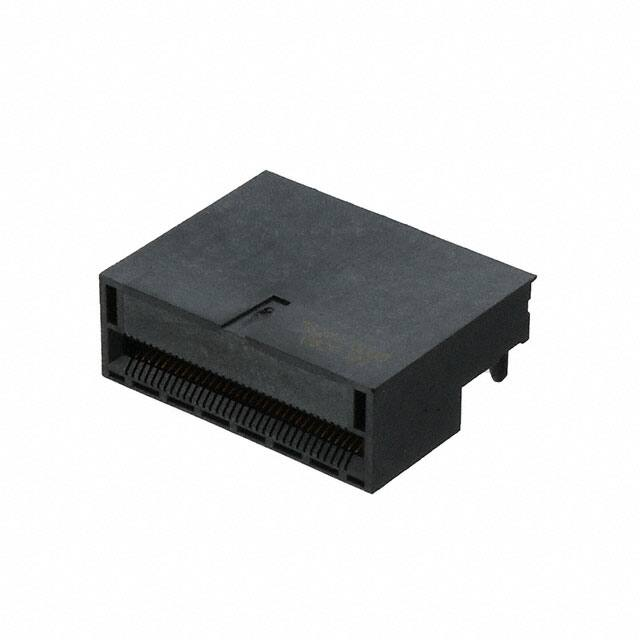

This document was generated on 10/01/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0762910068 Active EdgeLine High-Speed Connectors EdgeLine CoPlanar Connector, 6 Gbps, 0.75mm Pitch, 1.57mm PCB Thickness, 68 Circuits Documents: Drawing (PDF) Product Specification PS-76291-001-001 (PDF) Application Specification AS-76291-001-001 (PDF) Application Specification AS-76291-002-001 (PDF) Packaging Specification PK-76291-001-001 (PDF) RoHS Certificate of Compliance (PDF) EU ELV Not Relevant Application tooling part link Application Tooling Part Link Application Tooling Part Link 62100-7200 62202-2802 General Product Family Series Component Type Data Rate Edge Card Thickness High Power Bay (30.0A or more) Orientation Overview Product Name Standard Based UPC Edge Card Connectors 76291 Edgecard to PCB 5.0-12.0 Gbps 1.57mm No Coplanar EdgeLine High-Speed Connectors EdgeLine General 883906112745 Physical (p)ower-(s)ignal Configuration Circuit Size Range Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) Entry Angle Keying to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight PCB Locator PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Plating min - Termination Polarized to Mating Part Temperature Range - Operating Termination Interface: Style 68s - 0p 65-200 Circuits 68 68 Black 200 N/A N/A Copper Alloy Gold Tin High Temperature Thermoplastic 9.320/g No 2.79mm Tray 0.75mm 0.75mm 0.762µm 0.762µm Yes -40° to +85°C Through Hole - Compliant Pin Electrical Current - Maximum per Contact Voltage - Maximum 1.5A 50V AC (RMS)/DC Solder Process Data Series image - Reference only EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 76291 Series Lead-freeProcess Capability N/A Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification S-Parameter Model Sales Drawing AS-76291-001-001, AS-76291-002-001 PK-76291-001-001 PS-76291-001-001 SP-76291-0002-001 SD-76291-001-001 This document was generated on 10/01/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
