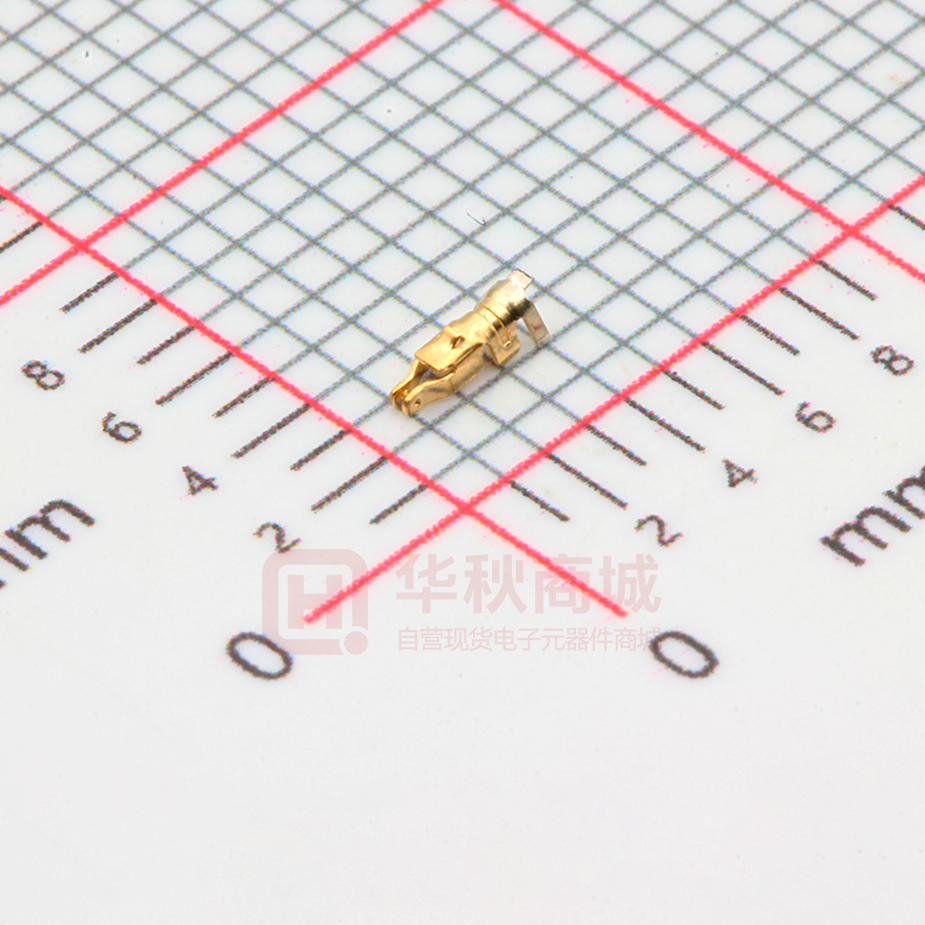

This document was generated on 11/02/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0781720410 Active Overview: Description: Pico-EZmate and Pico-EZmate Slim Wire-to-Board Connector Systems Pico-EZmate Wire-to-Board Crimp Terminal, 0.10µm Gold (Au) over Nickel (Ni) Plated Documents: Drawing (PDF) Product Specification PS-78171-010-001 (PDF) Product Specification PS-78172-001-001 (PDF) General Product Family Series Application Crimp Quality Equipment Overview Application Specification AS-78172-001-001 (PDF) Application Specification AS-78172-006-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only Product Name UPC Crimp Terminals 78172 Signal, Wire-to-Board, Wire-to-Wire Yes Pico-EZmate and Pico-EZmate Slim Wire-to-Board Connector Systems Pico-EZmate 800756782744 Physical Durability (mating cycles max) Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² 10 Female Copper Alloy Gold Gold 19.360/mg Reel 0.100µm 0.100µm Crimp or Compression 0.60-0.70mm 28, 30 0.055-0.089 Electrical Current - Maximum per Contact Voltage - Maximum 1.5A 50V AC (RMS)/DC EU ELV Compliant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Search Parts in this Series 78172 Series Use With Receptacle Housing 78172 Material Info Reference - Drawing Numbers Application Specification Crimp Specification Product Specification Sales Drawing Green Image Compliant Not Contained AS-78172-001-001, AS-78172-006-001 781720013-C00 PS-78171-010-001, PS-78172-001-001 SD-78172-008 This document was generated on 11/02/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 78172-0002 78172-0410 78172-0410 (Cut Strip) 78172-0410 (Mouser Reel) 78172-0410 (Loose Piece)
