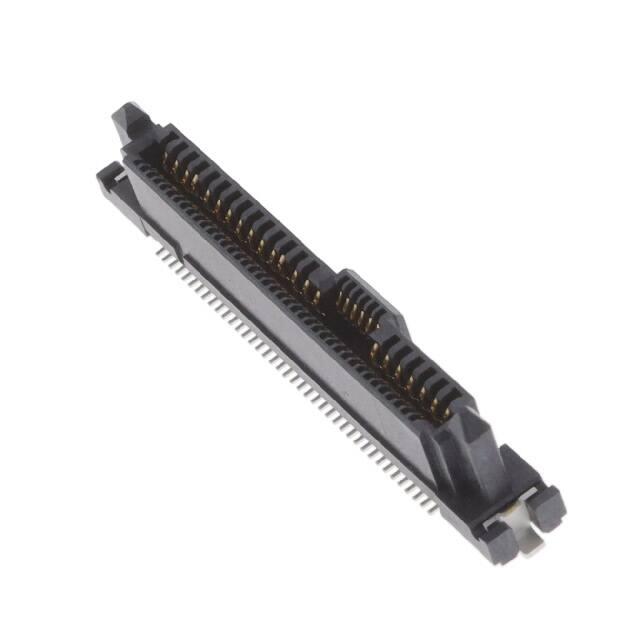

Part Number : 787770001 Product Description : EdgeLine ESP Vertical Connector, 12.5 Gbps, 0.80mm Pitch, 1.57mm PCB Thickness, 30.0A Power Module, 46 Circuits, 2 Power Circuits Series Number : 76861 Status : New Business Not Supported Product Category : Card Edge Connectors Documents & Resources Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Low-Halogen per IEC 61249-2-21 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status New Business Not Supported Category Card Edge Connectors Series 76861 Description EdgeLine ESP Vertical Connector, 12.5 Gbps, 0.80mm Pitch, 1.57mm PCB Thickness, 30.0A Power Module, 46 Circuits, 2 Power Circuits Component Type Edgecard to PCB Product Family EdgeLine High-Speed Connectors Product Name EdgeLine Standard Based General UPC 883906574659 CSA LR19980 UL E29179 Current - Maximum per Contact 1.5A, 30.0A Data Rate 12.5-20.0 Gbps High Power Bay (30.0A or more) Yes Voltage - Maximum 250V AC (RMS)/DC Circuit Size Range 1-64 Circuits Circuits (Loaded) 46 Circuits (maximum) 48 Color - Resin Black Durability (mating cycles max) 200 Edge Card Thickness 1.57mm Entry Angle N/A Flammability 94V-0 Keying to Mating Part N/A Material - Metal Copper Alloy Material - Plating Mating Gold Agency Electrical Physical Material - Plating Termination Tin Material - Resin High Temperature Thermoplastic Net Weight 5.062/g Orientation Vertical Packaging Type Tray PCB Locator No PCB Thickness - Recommended 2.79mm Pitch - Mating Interface 0.80mm Pitch - Termination Interface 0.80mm Plating min - Mating 0.762µm Plating min - Termination 0.762µm Polarized to Mating Part Yes (p)ower-(s)ignal Configuration 46s - 2p Temperature Range - Operating -40° to +105°C Termination Interface Style Through Hole - Compliant Pin Solder Process Data Lead-Free Process Capability N/A This document was generated on Jan 24, 2024
