0877602216

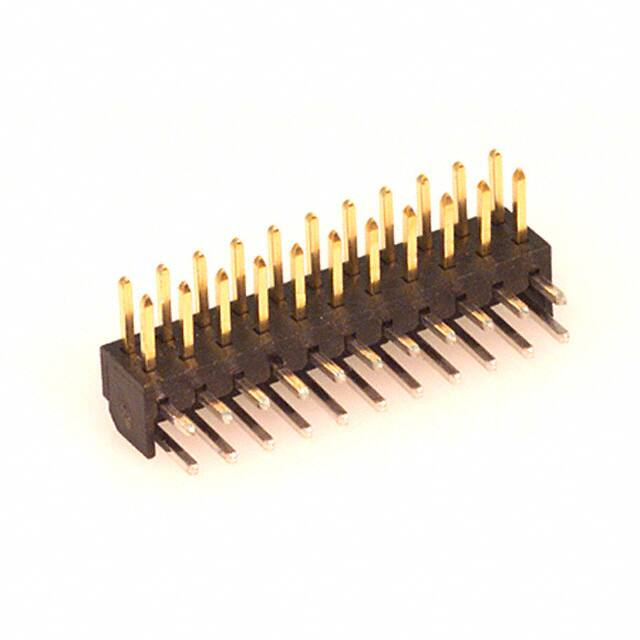

This document was generated on 05/26/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0877602216 Active milligrid 2.00mm (.079") Pitch Milli-Grid™ Header, Right Angle, Through Hole, 22 Circuits, 0.38µm (15µ") Gold (Au) Selective Plating, Tray, Lead-free Documents: 3D Model Drawing (PDF) Product Specification PS-87761-100 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only LR19980 E29179 EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Not Reviewed Halogen-Free Status Not Reviewed Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Agency Certification CSA UL General Product Family Series Application Comments Overview Product Name PCB Headers 87760 Board-to-Board, Wire-to-Board Lead-free version of 87049 series milligrid Milli-Grid™ Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin First Mate / Last Break Flammability Glow-Wire Compliant Guide to Mating Part Keying to Mating Part Lock to Mating Part Mated Height (in) Mated Height (mm) Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Number of Rows Orientation PC Tail Length (in) PC Tail Length (mm) PCB Locator PCB Retention PCB Thickness Recommended (in) PCB Thickness Recommended (mm) Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Pitch - Term. Interface (in) Pitch - Term. Interface (mm) Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) No 22 22 Black No 94V-0 No No None None 0.157 In 4.00 mm Phosphor Bronze Gold Tin High Temperature Thermoplastic 2 Right Angle 0.102 In 2.60 mm No None 0.062 In 1.60 mm Tray 0.079 In 2.00 mm 0.079 In 2.00 mm 15 0.38 76.4 1.91 Search Parts in this Series 87760Series Mates With 79107 Milli-Grid™ Receptacle, Vertical, Through Hole. 79108 Milli-Grid™ Flex-toBoard, Vertical Receptacle. Milli-Grid™ Receptacle, Surface Mount. 79109. 87381 Polarized to Mating Part Polarized to PCB Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style No No No Yes Yes -55°C to +105°C Through Hole Electrical Current - Maximum per Contact Voltage - Maximum 2A 125V Solder Process Data Duration at Max. Process Temperature (seconds) Lead-free Process Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 14 Wave Capable (TH only) 1 265 Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-87761-100 SD-87760-109 This document was generated on 05/26/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
