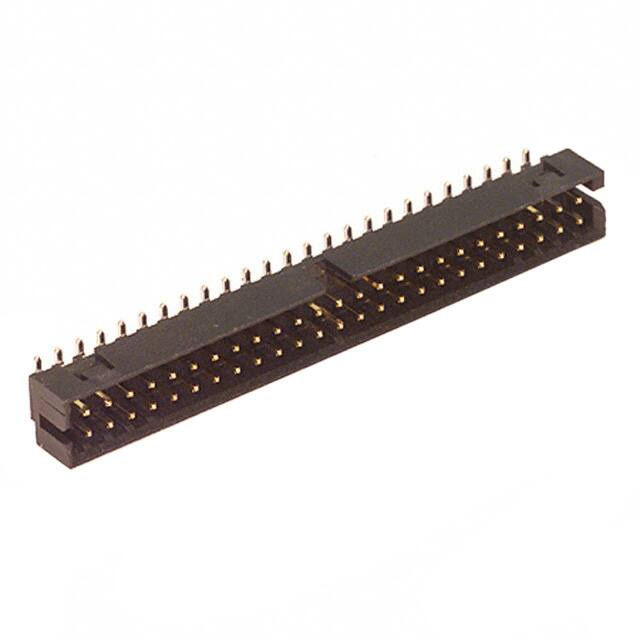

0878325022

厂商：
MOLEX10(莫仕)
封装：
SMD,P=2mm
描述：
线对板针座 2x25P 立贴间距:2mm

数据手册：

下载0878325022.pdf

立即购买

详情介绍
数据手册
价格&库存

0878325022 数据手册

This document was generated on 05/26/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0878325022 Active milligrid 2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, Shrouded, Leadfree, 50 Circuits, 0.38µm (15µ") Gold (Au) Plating, Pick-and-Place Cap, with Locking Windows and Center Polarization Slot, PCB Locator, Tube Documents: 3D Model Drawing (PDF) Product Specification PS-87831-027 (PDF) RoHS Certificate of Compliance (PDF) image - Reference only Series Agency Certification CSA UL LR19980 E29179 EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Not Reviewed Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. General Product Family Series Application Comments Overview Product Name PCB Headers 87832 Wire-to-Board With Cap|Contact Molex for application in automotive industry milligrid Milli-Grid™ Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin First Mate / Last Break Flammability Glow-Wire Compliant Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Number of Rows Orientation PCB Locator PCB Retention Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Pitch - Term. Interface (in) Pitch - Term. Interface (mm) Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Polarized to Mating Part Polarized to PCB Robotic Placement Shrouded No 50 50 Black No 94V-0 No No Yes Yes Phosphor Bronze Gold Tin Nylon 2 Vertical Yes None Tube 0.079 In 2.00 mm 0.079 In 2.00 mm 15 0.38 75 1.88 Side Slots (2) No Pick and Place Cap Fully Search Parts in this Series 87832Series Mates With 50394 Wire-to-Board Terminals. 51110 Wire-to-Board Crimp Housing. 87568 Wireto-Board IDT Housings. 79107 Board-toBoard Top Entry Through Hole Receptacle. 79108 Board-to-Board FFC/FPC Top Entry Through Hole Receptacle. L Stackable Temperature Range - Operating Termination Interface: Style No -55°C to +105°C Surface Mount Electrical Current - Maximum per Contact Voltage - Maximum 2A 125V Solder Process Data Duration at Max. Process Temperature (seconds) Lead-free Process Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 10 Reflow Capable (SMT only) 1 260 Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-87831-027 SD-87832-006 This document was generated on 05/26/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

下载 PDF

0878325022

1. 物料型号： - 型号：0878325022

2. 器件简介： - 描述：2.00mm (0.079") 间距 Mili-Grid™ 插座，表面贴装，垂直，带护罩，无铅，50路，0.38微米（15"）金（Au）镀层，带定位孔和中心极化槽，PCB定位器。

3. 引脚分配： - 电路数量（已加载）：50 - 电路数量（最大）：50

4. 参数特性： - 颜色 - 树脂：黑色 - 阻燃等级：94V-0 - 镀层最小厚度：配合界面金0.38微米，端子界面锡1.88微米 - 极化：侧槽（2个）

5. 功能详解： - 产品系列：PCB插座 - 应用：线对板连接 - 评论：带有护罩的触点，适用于汽车工业的应用

6. 应用信息： - 与50394线对板端子、51110线对板压接式外壳、87568线对板IDT外壳兼容。 - 可堆叠设计。

7. 封装信息： - 包装类型：管装 - 配合界面间距：2.00mm（0.079英寸） - PCB定位：是 - 完全护罩：是
