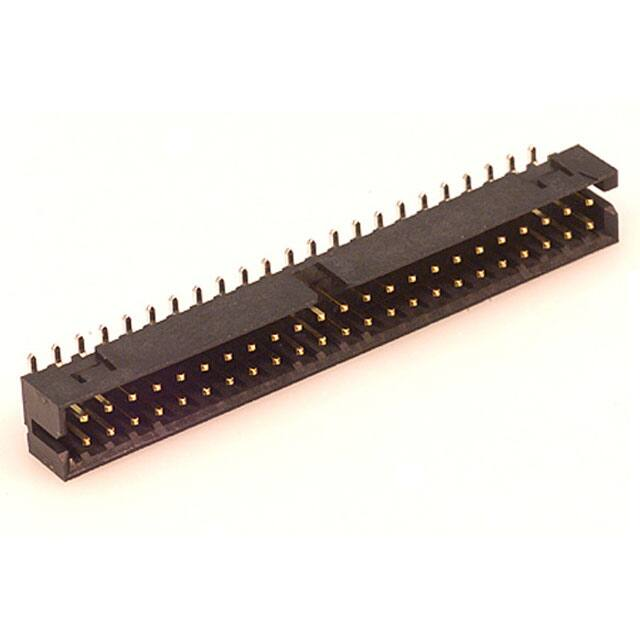

0878327222

This document was generated on 05/26/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0878327222 Active milligrid 2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, Shrouded, Leadfree, 46 Circuits, 0.38µm (15µ") Gold (Au) Plating, with Pick-and-Place Cap, Locking Windows and Center Polarization Slot, with Pegs, Embossed Tape on Reel, Lead-free Documents: Drawing (PDF) Product Specification PS-87831-027 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Application Comments Overview Product Name PCB Headers 87832 Wire-to-Board With Cap|Contact Molex for application in automotive industry milligrid Milli-Grid™ EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Not Reviewed Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin First Mate / Last Break Glow-Wire Compliant Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Number of Rows Orientation PCB Locator PCB Retention Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Pitch - Term. Interface (in) Pitch - Term. Interface (mm) Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Polarized to Mating Part Polarized to PCB Shrouded Stackable Temperature Range - Operating Termination Interface: Style No 46 46 Black No No No Yes Yes Phosphor Bronze Gold Tin Nylon 2 Vertical No None Embossed Tape on Reel 0.079 In 2.00 mm 0.079 In 2.00 mm 15 0.38 75 1.88 Side Slots (2) No Fully No -55°C to +105°C Surface Mount Search Parts in this Series 87832Series Mates With 50394 Wire-to-Board Terminals, 51110 Wire-to-Board Crimp Housing, 87568 Wireto-Board IDT Housings, 79107 Board-toBoard Top Entry Through Hole Receptacle, 79108 Board-to-Board FFC/FPC Top Entry Through Hole Receptacle, 79109 Board Electrical Current - Maximum per Contact 2A Voltage - Maximum 125V Solder Process Data Duration at Max. Process Temperature (seconds) Lead-free Process Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 10 Reflow Capable (SMT only) 1 260 Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-87831-027 SD-87832-006 This document was generated on 05/26/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
