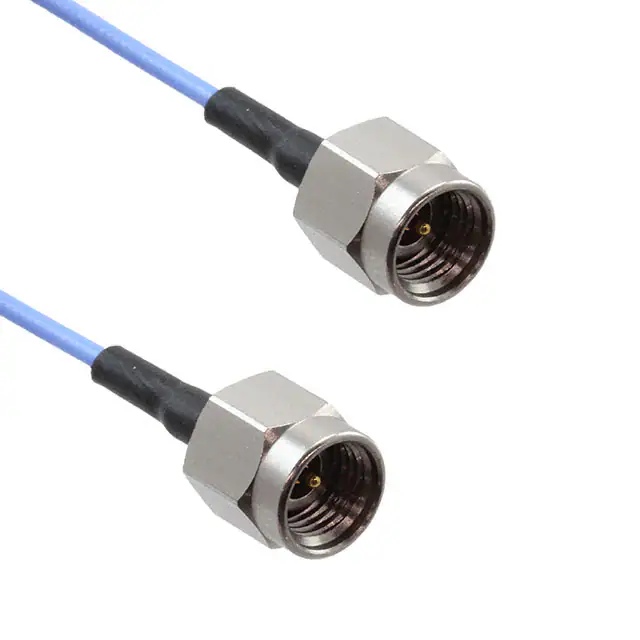

0897621584

12 11 10 9 8 7 5 6 4 3 2 1 MATERIALS AND FINISHES: 2.92 PLUG: SEE SD-73252-013 H H CABLE: TEMP-FLEX 100067-1047 LABEL: BRADY PERMASLEEVE SHRINK TUBE: VERSAFIT OR EQUIVALENT G G A A 1.500 REF 38.10 .500 REF 12.70 .500 REF 12.70 NOTE: MOLEX P/N ON LABEL SHOULD BE PRINT FROM THE P/N TABLE AS PER LENGTH (DIM A). F F MOLEX 89762-158X YYWW SHRINK TUBE COLOR: BLACK E SLIDING LABEL / SHRINK TUBE (WHITE) TEMP-FLEX 100067-1047 SHRINK TUBE COLOR: BLACK E 2.92 PLUG 73252-0130 2.92 PLUG 73252-0130 D D VSWR 1.55 MAX TO 40 GHz C 89762-1585 120.00±2.0 3048.0±51 C 27.00 89762-1584 18.00±.25 457.20±6.35 4.20 89762-1583 15.00±.25 381.00±6.35 3.60 89762-1582 12.00±.25 304.80±6.35 2.90 89762-1581 9.00±.15 228.6±3.8 2.30 89762-1580 6.00±.15 152.4±3.8 1.65 IN MM INSERTION LOSS MAX B PART NO. TO 40 GHz (dB) A MIL-STD-348B, FIG. 323.1 SPECIFICATION INTERFACE DESCRIPTION B SYMBOLS THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE CURRENT REV DESC: REVISED = 0 INCH = 0 = 0 = 0 = A = DOCUMENT STATUS 12 FORMAT: IN-master-tb-prod-C REVISION: C DATE: 2018/01/18 P1 RELEASE DATE 11 2018/04/11 10 C 14:44:18 9 8 7 6 0 0 = 0 = 0 = 0 GENERAL TOLERANCES (UNLESS SPECIFIED) MM INCH 4 PLACES ± ± 3 PLACES ± ± 2 PLACES ± 1 PLACE 0.25 ± 0 PLACES ± ANGULAR TOL ± ± ± ± DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 5 0.01 2.0 ° EC NO: 174715 DRWN: APRAKASH01 CHK'D: APRAKASH01 APPR: AROBERTSON INITIAL REVISION: DRWN: AROBERTSON APPR: JWIENER THIRD ANGLE PROJECTION 4 2018/04/05 2018/04/11 2018/04/11 2.92 PLUG ST X2 ON TEMP-FLEX 100067-1047, CA-292/292, EWR-10560 PRODUCT CUSTOMER DRAWING DOCUMENT NUMBER 2013/05/08 2013/05/10 DRAWING SERIES C-SIZE 89762 3 A DOC TYPE DOC PART REVISION SD-89762-158 MATERIAL NUMBER CUSTOMER PSD 001 B3 SHEET NUMBER SEE TABLE 1 OF 1 2 1
