0903273318

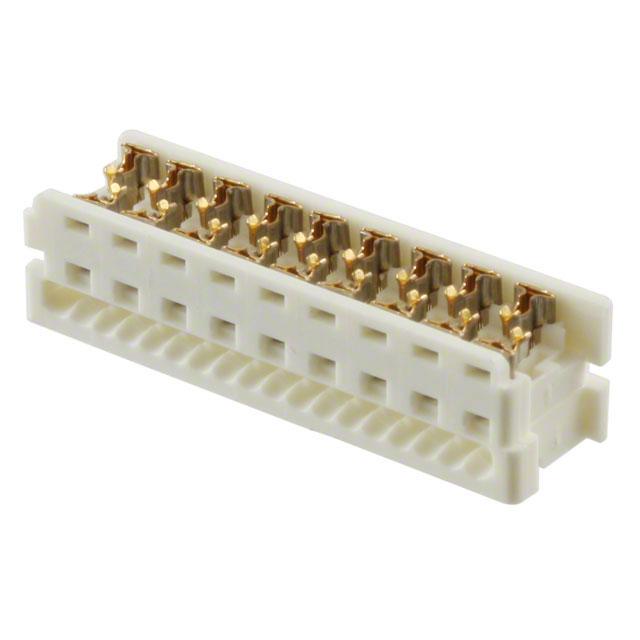

This document was generated on 03/17/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Description: 0903273318 Active 1.27mm (.050") Pitch Picoflex® PF-50, Low Profile, IDT Receptacle, 18 Circuits, Natural, Gold Plated, Reeling Option A Documents: 3D Model Drawing (PDF) Product Specification PS-99020-0011 (PDF) RoHS Certificate of Compliance (PDF) Series LR19980 E29179 image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Not Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Agency Certification CSA UL General Product Family Series Comments Component Type Glow-Wire Compliant Product Name Ribbon Cable / Wire Trap Connectors 90327 Low Profile Housing No Picoflex® Physical Circuits (Loaded) Color - Resin Durability (mating cycles max) Entry Angle Flammability Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Number of Rows PCB Retention Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Polarized to Mating Part Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire/Cable Type 18 Natural 100 90° Angle 94V-0 Yes Phosphor Bronze Gold Tin Polyester 2 None Bag 0.050 In 1.27 mm Yes No N/A -40°C to +105°C IDT or Pierce 1.00mm (.039") max. 26, 28 Ribbon Cable Search Parts in this Series 90327Series Mates With Low Profile Vertical 90325 , Low Profile Right Angle 90800 , 90715 , 90814 , 90779 Vertical Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Extraction Tool 0690081070 (Plastic) for 90327 Connector, 4-26 Circuit Handtool for 0690081090 90327, 90584 and 91577 Picoflex® Electrical Current - Maximum per Contact Voltage - Maximum 1.2A 250V Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-99020-0011 SDA-90327 Connectors, 4-26 Circuit Arbor Press Fixture for 91577 Picoflex® Connectors Semi-Automatic Bench Press PB14 for 90327 Connectors, 4 to 26 Circuit Extrator Tool for Picoflex™ Connectors Arbor Press Fixture 0690201908 0691271001 0621006000 0690201902 This document was generated on 03/17/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
