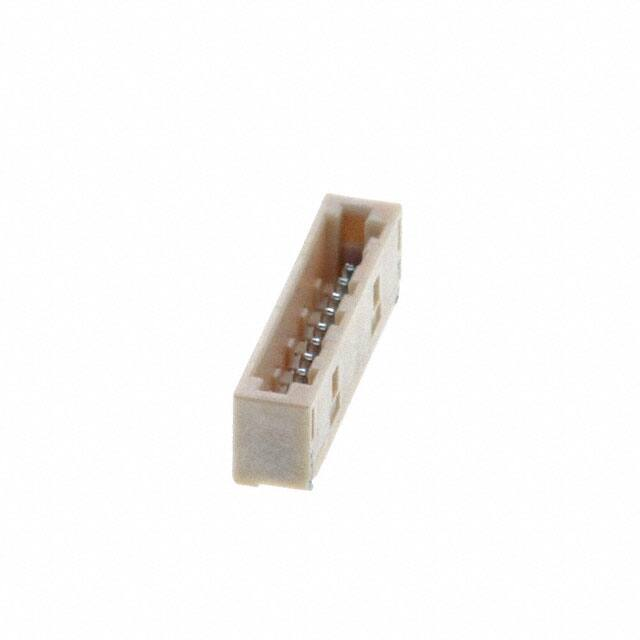

1041411010

PACKAGING SPECIFICATION 1. 제품 명칭(PRODUCT NAME) : 1.0MM WIRE TO BOARD CONN. HEADER ASS’Y-10P 제품 번호(PART NUMBER) : 포장전 제품 번호 포장후 제품 번호 (BEFORE PACKING) (AFTER PACKING) 104141-1010 104141-1010 2. 표준 포장 수량(PACKING QUANTITY) : EMBOSS TAPE CARRIER CKT 10 WIDTH ENG. No. ENG. No. 24 104141-9901 35902-0026 CARTON BOX REEL TOP ENG. NO. : 35909-0082 ENG. No. Q’TY 35908-0030 1.500 REEL Q’TY Q’TY (TOTAL) 6 9,000 3.LABEL SPECIFICATION Current Rating Voltage Rating 1.0A Max. 100V Max. 해외인증 -- 4. NOTE - 포장 평가는 ES40000-7001에 따르고, LEVELⅡ 기준 1을 적용한다 (Estimate : applied to ES-40000-7001 and level Ⅱ, criterion 1) REVISION: ECR/ECN INFORMATION: TITLE: A2 EC No: ****-**** 1.0mm PITCH W-t-B CONN. HEADER ASS’Y-10P (104141 SERIES) DATE: 2016/11/15 PACKAGING SPECIFICATION. DOCUMENT NUMBER: PK-104141-001 SHEET No. 1 of 2 CREATED / REVISED BY: CHECKED BY: APPROVED BY: JS.SHIN SH.CHU YS.KIM TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC PACKAGING SPECIFICATION 5. PACKING DRAWING - 해당 BOX에 Packing된 6개의 Reel를 넣고 포장한다. [ Packing Process ] [Packing completion] REVISION: ECR/ECN INFORMATION: TITLE: A2 EC No: ****-**** 1.0mm PITCH W-t-B CONN. HEADER ASS’Y-10P (104141 SERIES) DATE: 2016/11/15 PACKAGING SPECIFICATION. DOCUMENT NUMBER: PK-104141-001 SHEET No. 2 of 2 CREATED / REVISED BY: CHECKED BY: APPROVED BY: JS.SHIN SH.CHU YS.KIM TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC
