1054291212

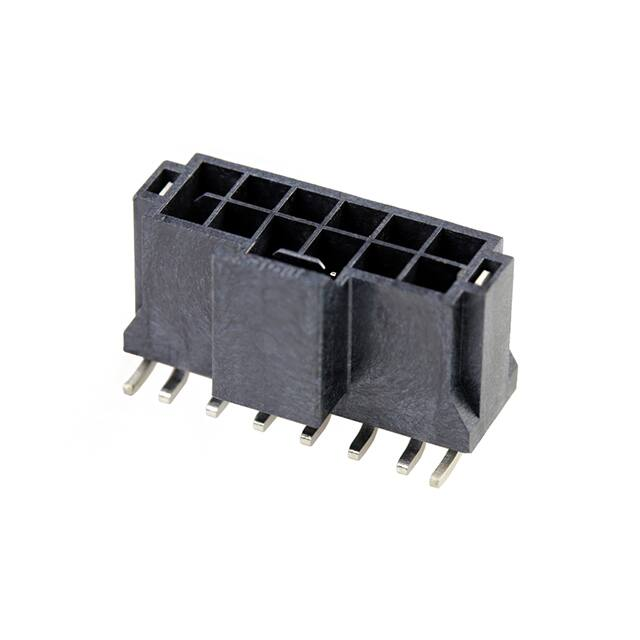

This document was generated on 09/02/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 1054291212 Active Nano-Fit Power Connectors Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Dual Row, 12 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable Documents: 3D Model 3D Model (PDF) Drawing (PDF) Product Specification 1054051000-PS-CH-000 (PDF) Product Specification 1054051000-PS-ES-000 (PDF) Product Specification 1054051000-PS-SK-000 (PDF) Product Specification PS-105405-001-001 (PDF) Application Specification AS-105405-001-001 (PDF) Packaging Specification 1054291000-PK-000 (PDF) Test Summary 1054050000-TS-000 (PDF) Datasheet (PDF) RoHS Certificate of Compliance (PDF) General Product Family Series Application Overview Product Name UPC PCB Headers 105429 Power, Wire-to-Board Nano-Fit Power Connectors Nano-Fit 191130010721 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) Glow-Wire Capable Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PCB Locator PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Plating min - Termination Polarized to Mating Part Polarized to PCB Temperature Range - Operating Termination Interface: Style No 12 12 Black 50 Yes Yes Yes Brass Gold Tin Liquid Crystal Polymer 1.550/g 2 Vertical No 1.60mm Embossed Tape on Reel 2.50mm 2.50mm 0.380µm 0.762µm Yes No -40° to +115°C Surface Mount Electrical Current - Maximum per Contact Voltage - Maximum 7.0A 250V AC (RMS)/DC Material Info Reference - Drawing Numbers Application Specification AS-105405-001-001 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 105429 Series Mates With Nano-Fit Receptacle Housing 1053081212 Packaging Specification Product Specification Sales Drawing Test Summary 1054291000-PK-000 1054051000-PS-CH-000, 1054051000-PS-ES-000, 1054051000-PS-SK-000, PS-105405-001-001 SD-105429-001-000 1054050000-TS-000 This document was generated on 09/02/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
