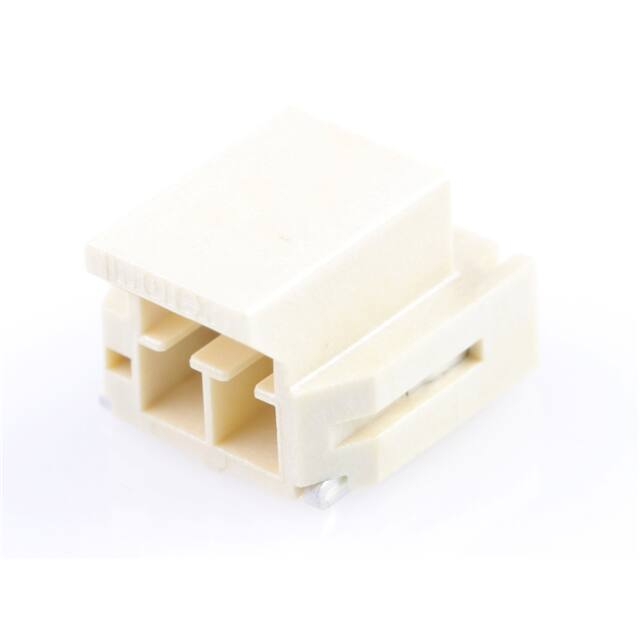

This document was generated on 09/02/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 1054302102 Active Nano-Fit Power Connectors Nano-Fit Right-Angle Header, Surface Mount, 2.50mm Pitch, Single Row, 2 Circuits, 0.76µm Tin (Sn) Plating, Natural, Glow-Wire Capable Documents: 3D Model Drawing (PDF) 3D Model (PDF) Product Specification 1054051000-PS-CH-000 (PDF) Product Specification 1054051000-PS-ES-000 (PDF) Product Specification 1054051000-PS-SK-000 (PDF) Product Specification PS-105405-001-001 (PDF) Application Specification AS-105405-001-001 (PDF) Packaging Specification 1054301000-PK-000 (PDF) Test Summary 1054050000-TS-000 (PDF) Datasheet (PDF) RoHS Certificate of Compliance (PDF) General Product Family Series Application Overview Product Name UPC PCB Headers 105430 Power, Wire-to-Board Nano-Fit Power Connectors Nano-Fit 191128933070 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) Glow-Wire Capable Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PCB Locator PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Plating min - Termination Polarized to Mating Part Polarized to PCB Temperature Range - Operating Termination Interface: Style No 2 2 Natural 25 Yes Yes Yes Brass Tin Tin Liquid Crystal Polymer 0.570/g 1 Right Angle No 1.60mm Embossed Tape on Reel 2.50mm 2.50mm 0.762µm 0.762µm Yes No -40° to +105°C Surface Mount Electrical Current - Maximum per Contact Voltage - Maximum 6.5A 250V AC (RMS)/DC Material Info Reference - Drawing Numbers Application Specification AS-105405-001-001 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2020)9139-DC (19 Jan 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 105430 Series Mates With Nano-Fit Receptacle Housing 1053072202 Packaging Specification Product Specification Sales Drawing Test Summary 1054301000-PK-000 1054051000-PS-CH-000, 1054051000-PS-ES-000, 1054051000-PS-SK-000, PS-105405-001-001 SD-105430-001-000 1054050000-TS-000 This document was generated on 09/02/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
