1054302106

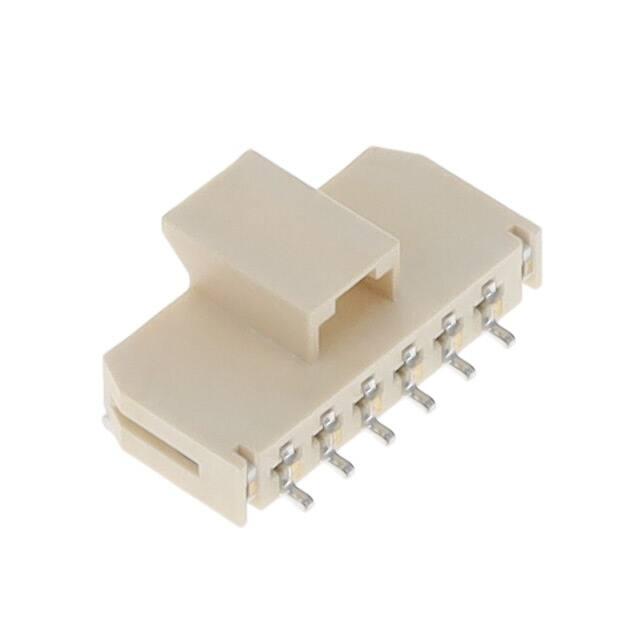

Part Number : 1054302106 Product Description : Nano-Fit Right-Angle Header, Surface Mount, 2.50mm Pitch, Single Row, 6 Circuits, 0.76µm Tin (Sn) Plating, Natural, Glow-Wire Capable Series Number : 105430 Status : Active Product Category : PCB Headers and Receptacles Documents & Resources Drawings Drawing 1054302106_sd.pdf Packaging Design Drawing 1054301000-PK-000.pdf 3D Models and Design Files 3D Model 1054302106_stp.zip Specifications Application Specification AS-105405-001-001.pdf Product Specification 1054051000-PS-CH-000.pdf Product Specification 1054051000-PS-ES-000.pdf Product Specification 1054051000-PS-SK-000.pdf Product Specification PS-105405-001-001.pdf Test Summary 1054050000-TS-000.pdf Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Low-Halogen per IEC 61249-2-21 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category PCB Headers and Receptacles Series 105430 Description Nano-Fit Right-Angle Header, Surface Mount, 2.50mm Pitch, Single Row, 6 Circuits, 0.76µm Tin (Sn) Plating, Natural, Glow-Wire Capable Application Power, Wire-to-Board Component Type PCB Header Product Family Nano-Fit Power Connectors Product Name Nano-Fit UPC 191128933131 UL E29179 Current - Maximum per Contact 6.5A Voltage - Maximum 250V AC (RMS)/DC Breakaway No Circuits (Loaded) 6 Circuits (maximum) 6 Agency Electrical Physical Color - Resin Natural Durability (mating cycles max) 25 Glow-Wire Capable Yes Keying to Mating Part Yes Lock to Mating Part Yes Material - Metal Brass Material - Plating Mating Tin Material - Plating Termination Tin Material - Resin Liquid Crystal Polymer Net Weight 1.030/g Number of Rows 1 Orientation Right Angle Packaging Type Embossed Tape on Reel PCB Locator No PCB Thickness - Recommended 1.60mm Pitch - Mating Interface 2.50mm Pitch - Termination Interface 2.50mm Plating min - Mating 0.762µm Plating min - Termination 0.762µm Polarized to Mating Part Yes Polarized to PCB No Temperature Range - Operating -40° to +105°C Termination Interface Style Surface Mount Mates With / Use With Mates with Part(s) Description Part Number Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Single Row, 6 Circuits, Natural, Glow-Wire Capable 1053072206 This document was generated on Jan 24, 2024
